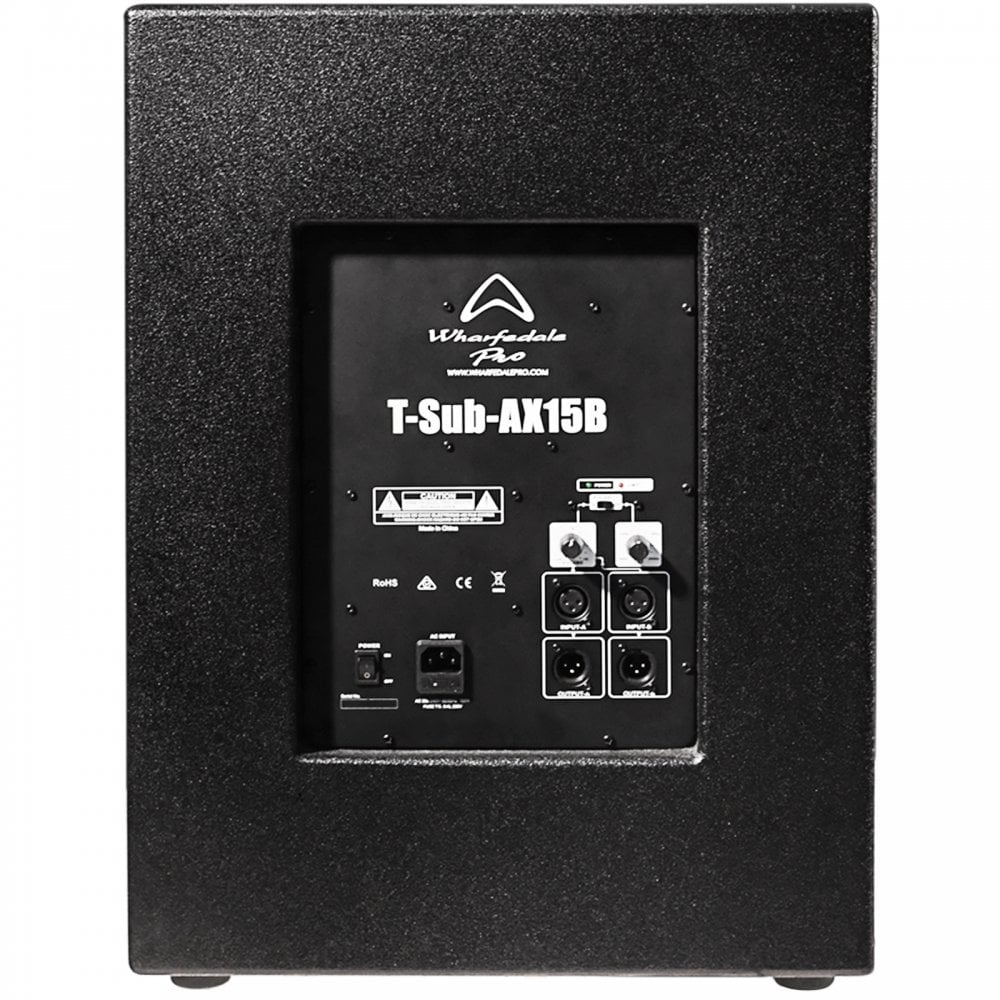

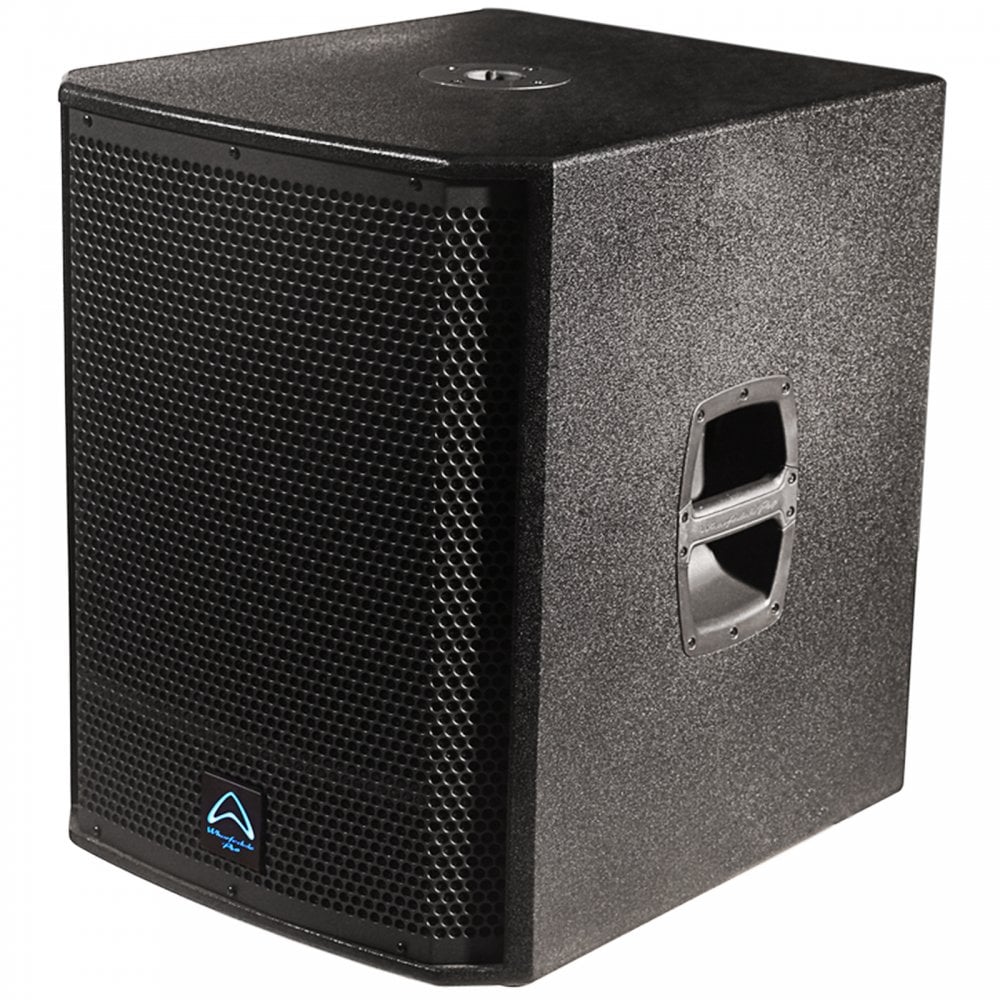

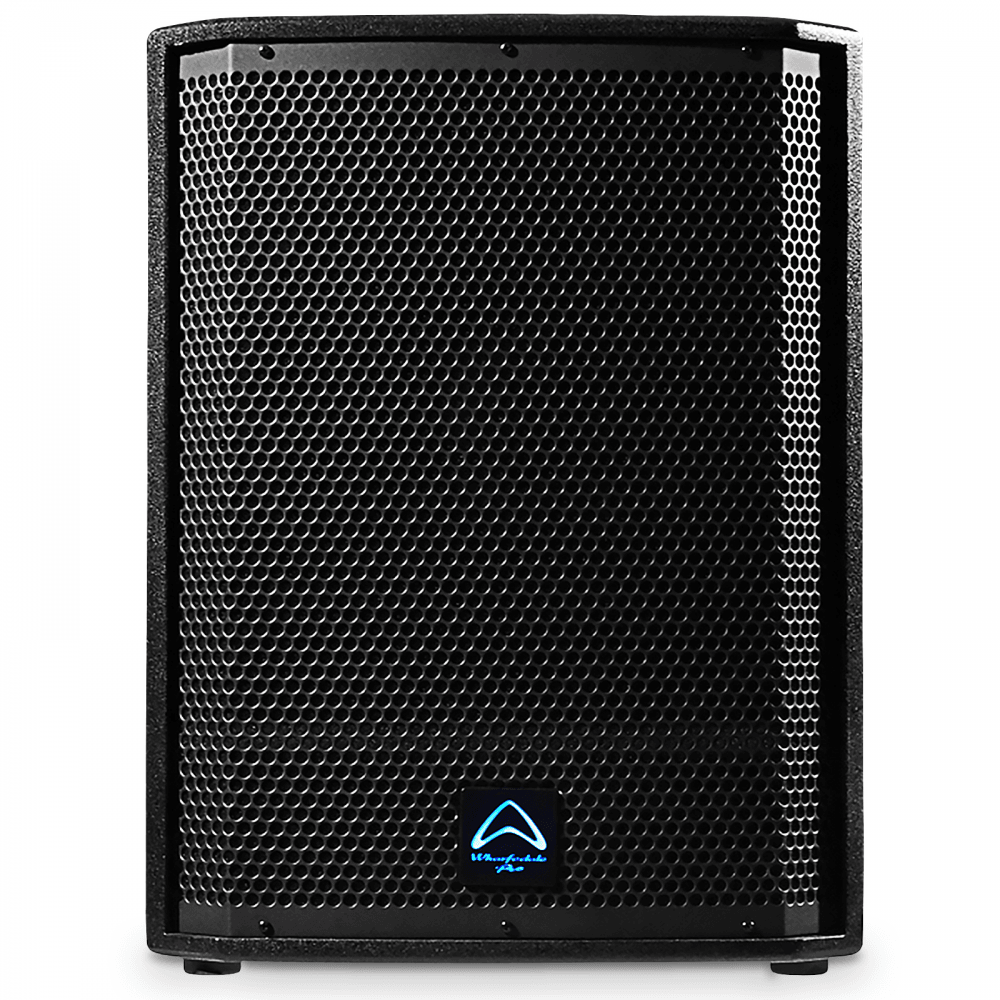

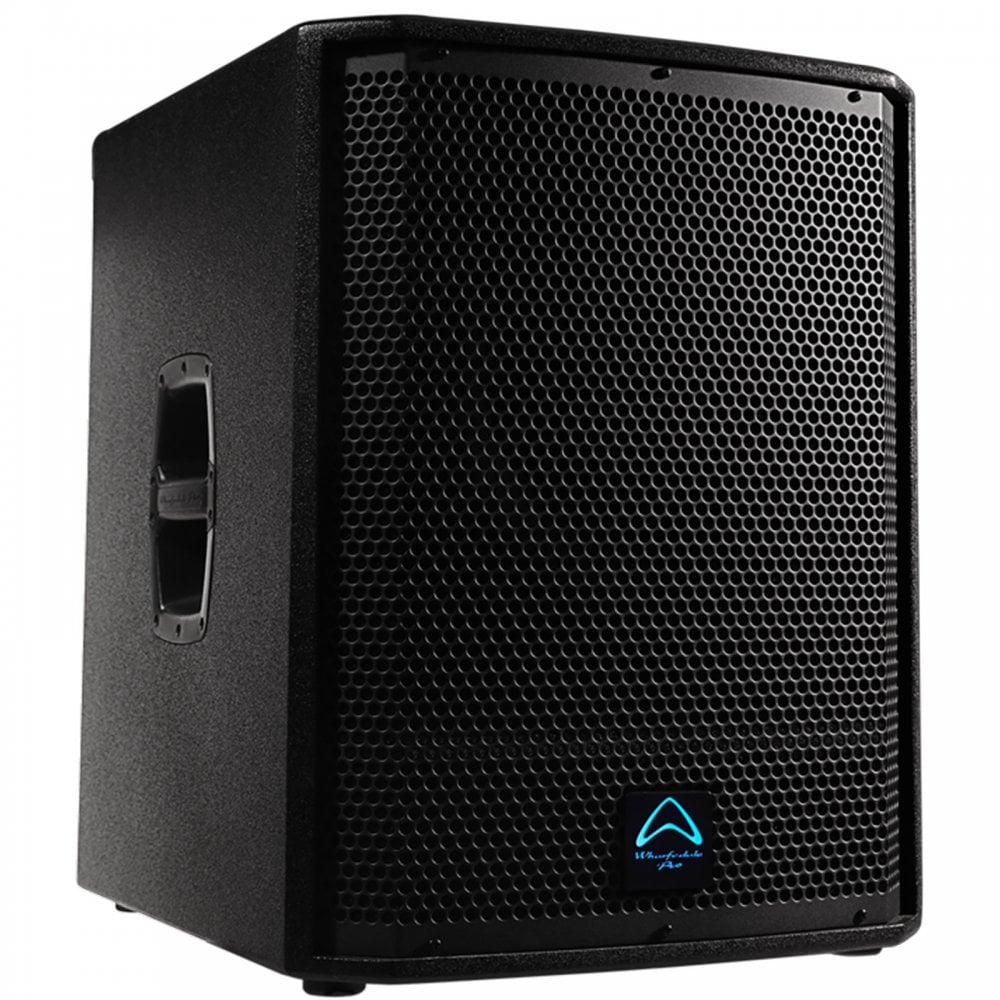

Pro Titan Sub AX15B 15" Active Powered Subwoofer
-
Free DeliveryOn Orders Over £80
-
Hassle-Free Returns14 Day Cooling Off Period
-
100% Secure ShoppingShop In Confidence
- 700 Watts Continuous
- 1400 Watts Peak
- 129 dB Max SPL @ 1 meter
- Birch plywood construction
- Illuminated LED front logo badge
- Convection cooled Class D amplifier
- Adjustable low pass filter
- 3.0″ voice coil
- Quad layer driver design
- 35 mm pole socket & durable handles
Everyone Loves Bass! That is exactly why we have created the T-Sub-AX15B – our 700 W Continuous, 1400 W Peak 15” active subwoofer.
The internal Class D amplifier delivers huge output power into the custom quad-layer 15” Wharfedale Pro LF driver to produce extreme subs and low end pressure into any system. Built for big bass, the plywood constructed cabinet is rock solid and is protected in durable Rhino Rock paint. You’ll not only ‘feel’ the T-Sub-AX15B, but you will also see it! A new illuminated WP logo badge subtly glows and adds to the overall on-stage “power” of the new T-Sub.
System Type: Active 15″ Subwoofer
Frequency Response (+/-3 dB): 45 Hz-200 Hz
Sensitivity @ 1W / 1 m): 97 dB
Maximum SPL (peak @ 1 m): 129 dB
Low Frequency Transducer:
Size (mm / inches): 404 mm / 15”
Coil Size (mm / inches): Quad layer 3.0″
Impedance: 4Ω
Amplifier
Low-Frequency Power Amplifier (Class D): 700 w Continuous / 1400 w Peak
Crossover Frequency: LPF 80-200 Hz (adjustable)
Controls
Amplifier Protection: Yes
Power On Protection: Power switch on / off mute
Thermal Protection: Amplifier shutdown, auto reset
Driver Protection: Yes
DC Protection: Yes
Short Protection: Yes
Limiter Indicator: Red LED
Input type: Balanced
Input Connector: Female XLR
Input Impedance: 47 KΩ Balanced
Maximum Input Level: 5V
Input Sensitivity: -10 dB
Line Output Connector: Male XLR
Phase Switch Selection: 0° / 180°
AC Power details
Power Supply: SMPS
AC Power Options: 100V-120V and 200V-240V
Power Indicator: Green(back) / Blue logo(front)
Enclosure
Enclosure Material: 15 mm Plywood
Colour: Black
Grille: 1.5 mm steel
Pole Mount (Top): 35 mm
Dimensions & Weight
Height: 591 mm / 23.27″
Width: 454 mm / 17.9″
Depth: 523.9 mm / 20.63″
Weight (kg / lbs): 25.7 kg / 56.5lbs
