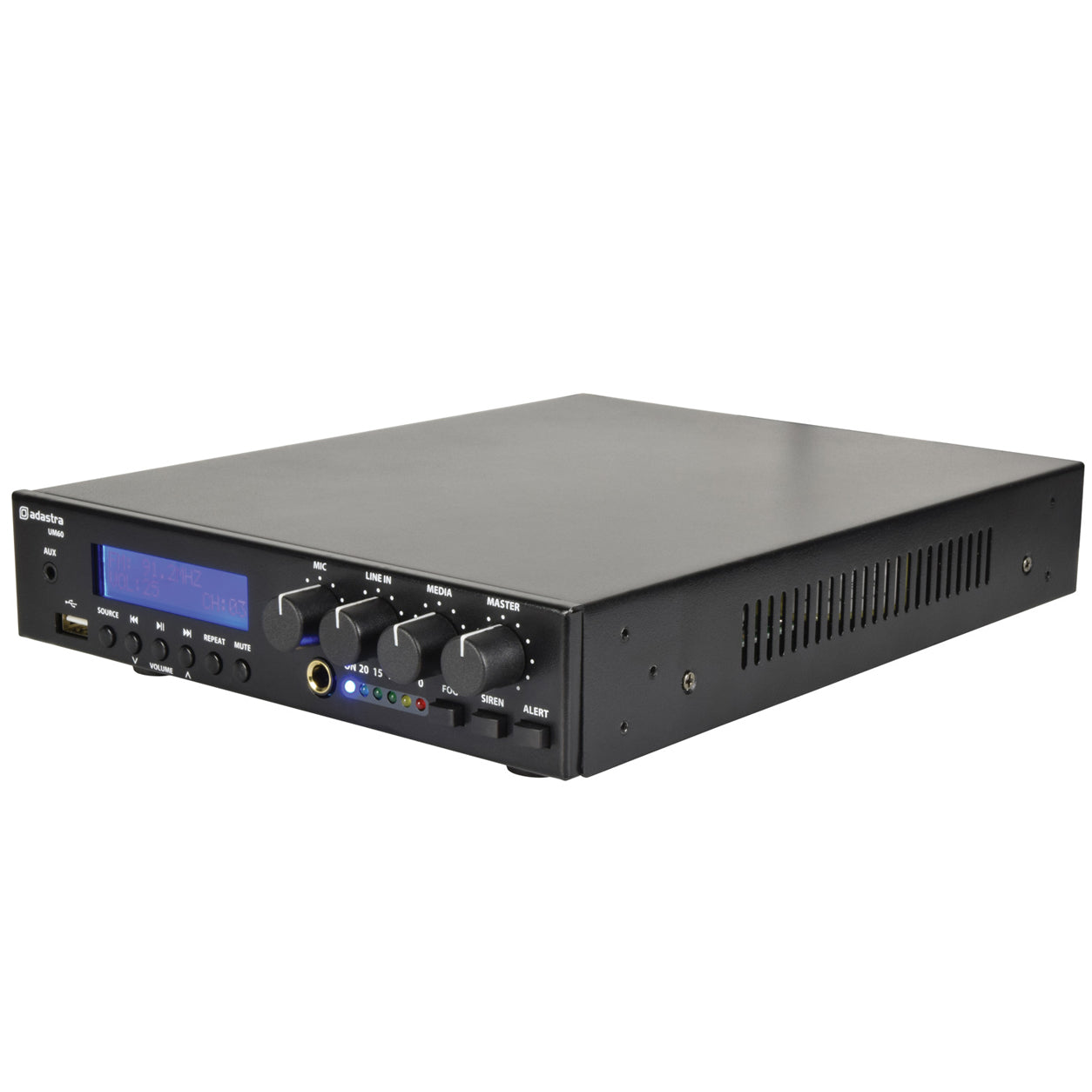

Adastra 60W Compact Mixer Amplifier

Ultra-compact 100V and 8 Ohm Class D amplifier with Bluetooth, USB and FM playback

Product Overview

A versatile, space-saving mixer amplifier designed for small to medium public-address installations. It combines a 60W Class D amplifier, microphone and line connectivity, Bluetooth 5.0, USB playback and an FM tuner in one compact unit. Connect it to either a 100V line speaker system or a standard 8 Ohm speaker load.

Key Benefits

  • Multiple audio sources: Play music wirelessly through Bluetooth or use the built-in USB player and FM tuner.
  • Flexible speaker compatibility: Suitable for both distributed 100V line systems and conventional 8 Ohm speakers.

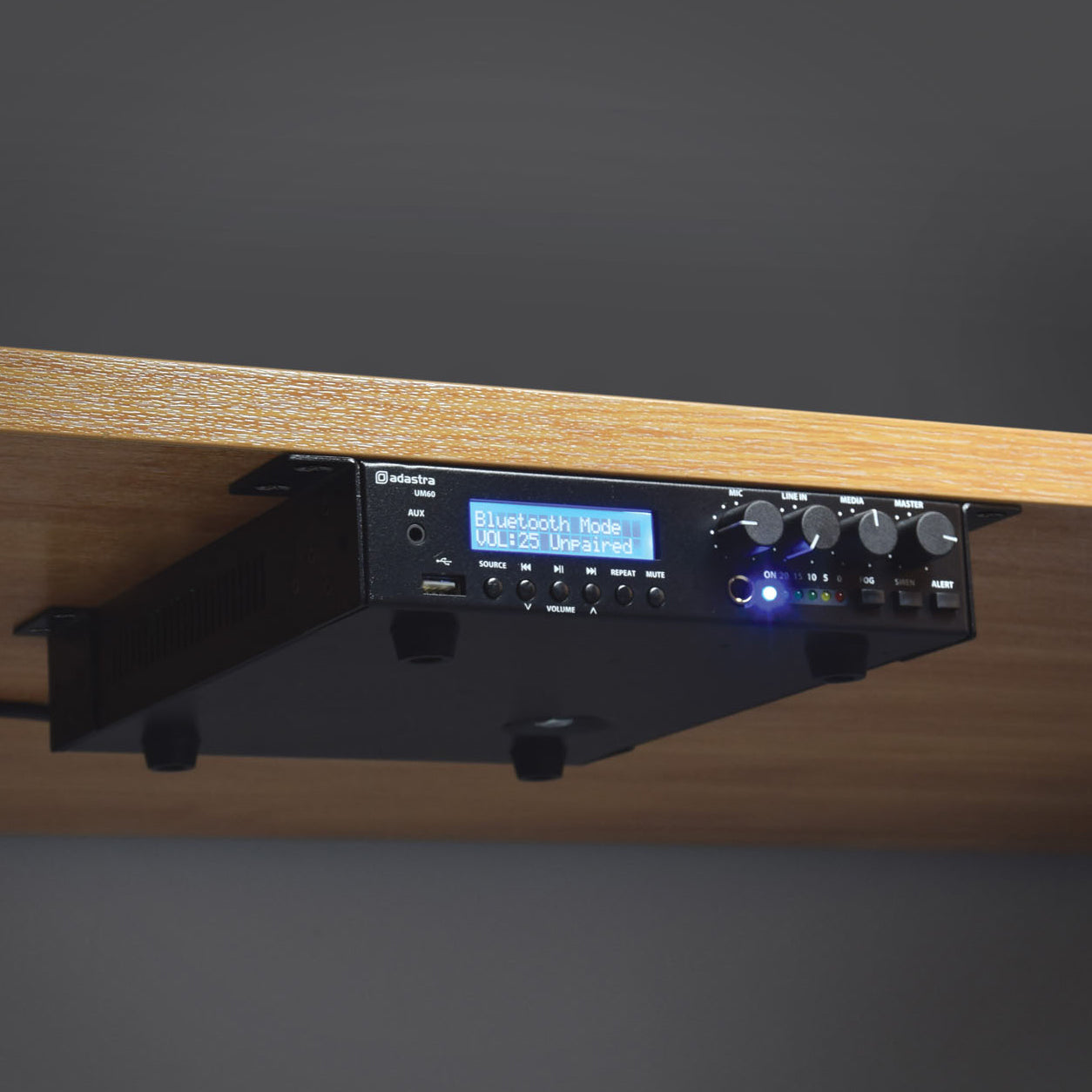

  • Compact installation: The slim 1U-height housing saves valuable space in commercial and professional setups.

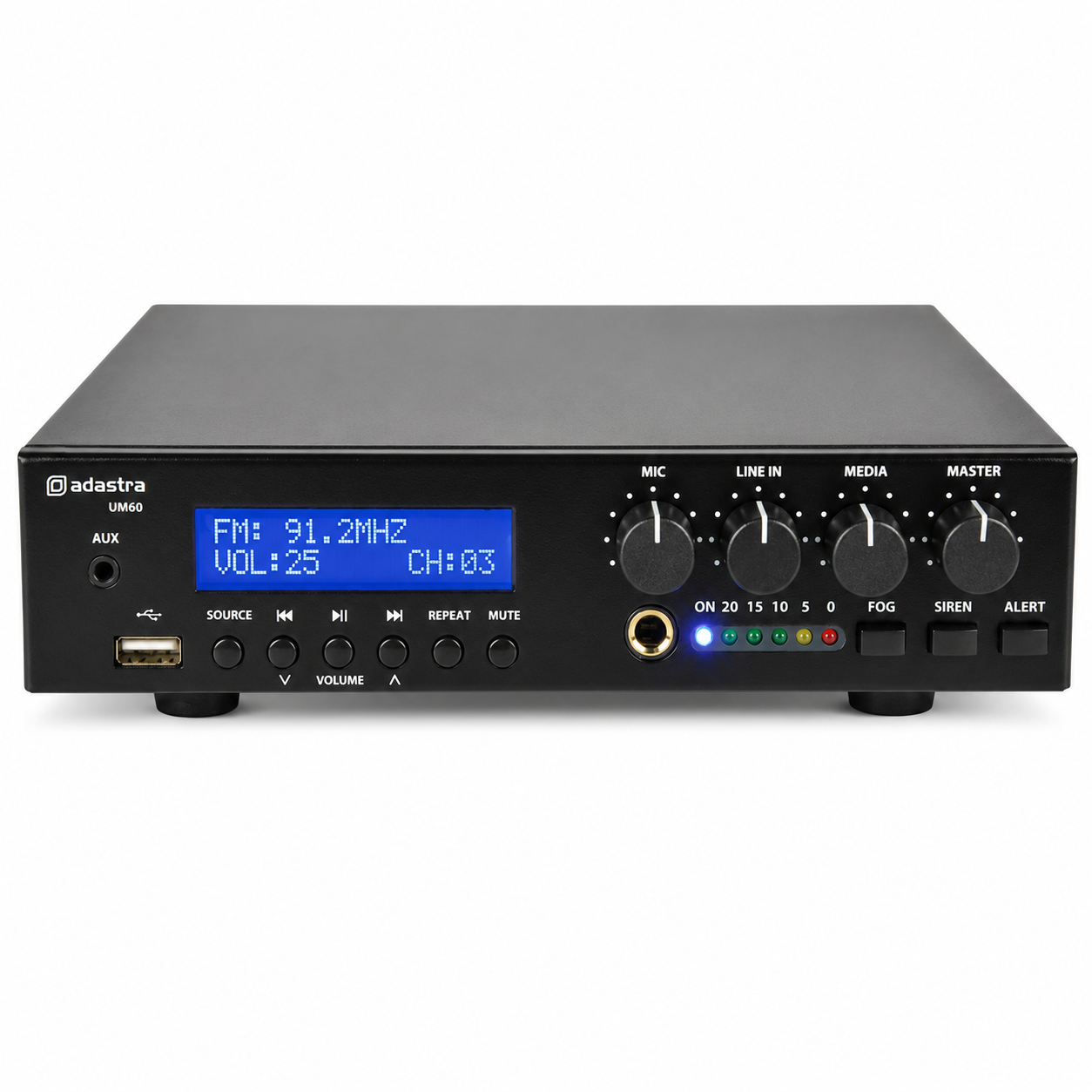

  • Simple operation: Dedicated front-panel controls make microphone, line, media and master volume adjustments straightforward.
  • Efficient performance: Class D amplification provides dependable 60W output with efficient power use.
  • Rack-mount ready: Supplied with hardware for mounting two units side by side in a standard 1U 19-inch rack space.

Features

  • Ultra-compact mixer amplifier design
  • 60W RMS mono output
  • Efficient Class D amplifier with transformer output
  • Built-in Bluetooth 5.0 receiver
  • Integrated USB audio player and FM tuner
  • Microphone, line and auxiliary inputs
  • 100V line and 8 Ohm speaker operation
  • Independent source controls and master volume
  • AC mains or 24V DC power operation
  • Built-in fog, siren and alert generator

Specifications

  • Output power: 60W RMS
  • Amplifier construction: Class D with transformer output

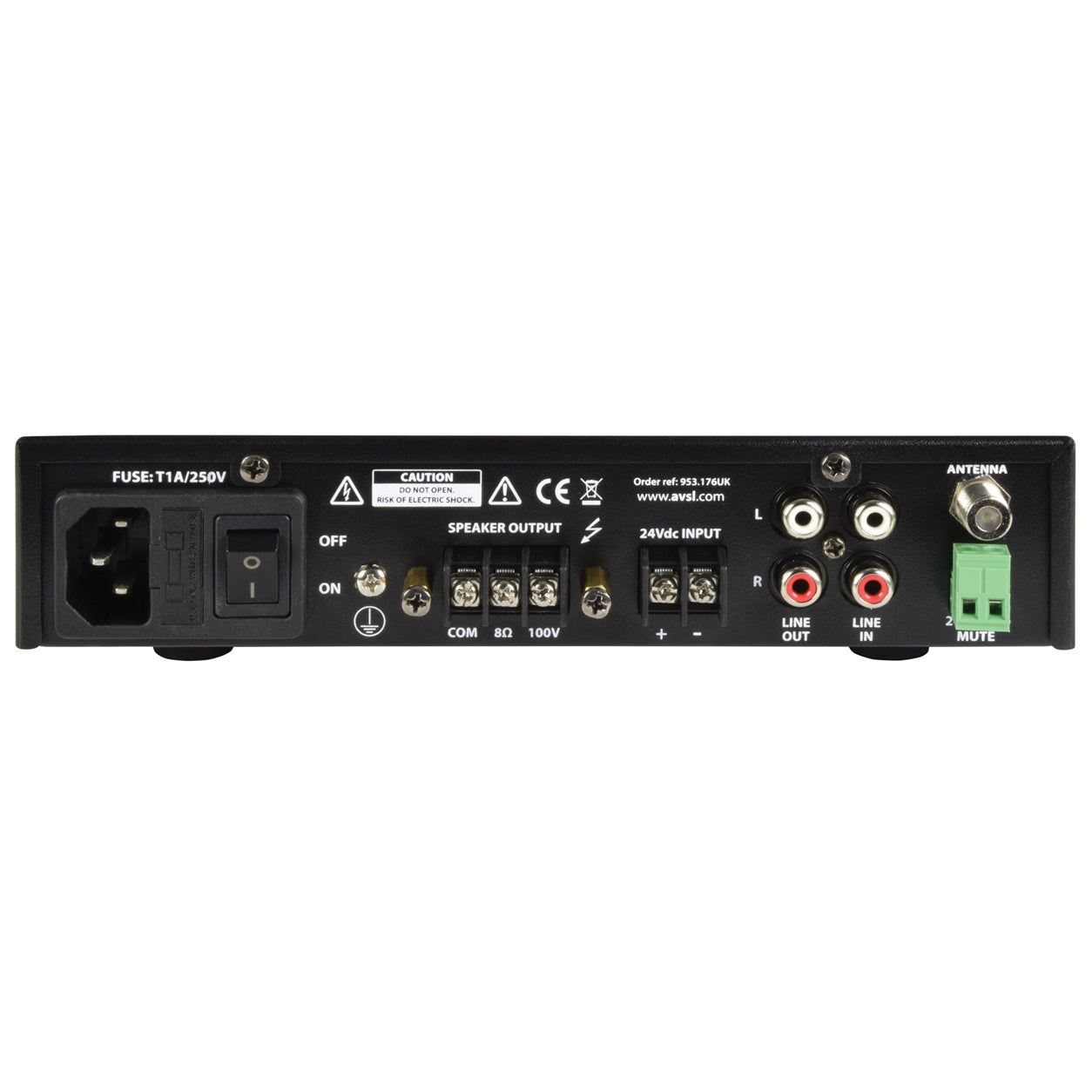

  • Speaker outputs: Screw terminals for 100V, 8 Ohms and common
  • Audio sources: USB, FM radio and Bluetooth
  • Bluetooth version: 5.0
  • Microphone input: 1 x 6.3mm jack
  • Line input: 2 x RCA
  • Auxiliary input: 1 x 3.5mm jack
  • Line output: 2 x RCA, mono
  • Alarm output: Fog, siren and alert generator
  • Mute connection: 24V relay contacts
  • Power supply: 170–264V AC, 50Hz IEC, or 24V DC
  • DC connection: 24V DC screw terminals
  • Frequency response: 100Hz–18kHz
  • Total harmonic distortion: Less than 0.4% at 1kHz
  • Signal-to-noise ratio: 80dB line, 75dB microphone
  • Input sensitivity: -10dB line, -45dB microphone
  • Input impedance: 1k Ohms microphone/line
  • Dimensions: 269 x 210 x 44mm
  • Weight: 2.47kg

Perfect For

  • Shops, cafés and restaurants
  • Offices and reception areas
  • Schools, classrooms and community venues
  • Small halls, meeting rooms and houses of worship
  • Background music and announcement systems
  • Compact commercial and professional PA installations
