Showtec Helix S5000 Q4 IP65 RGBW LED Outdoor Wash Light
Showtec Helix S5000 Q4 IP65 RGBW LED Outdoor Wash Light
-
Free DeliveryOn Orders Over £100
-
Hassle-Free Returns14 Day Cooling Off Period
-
100% Secure ShoppingShop In Confidence

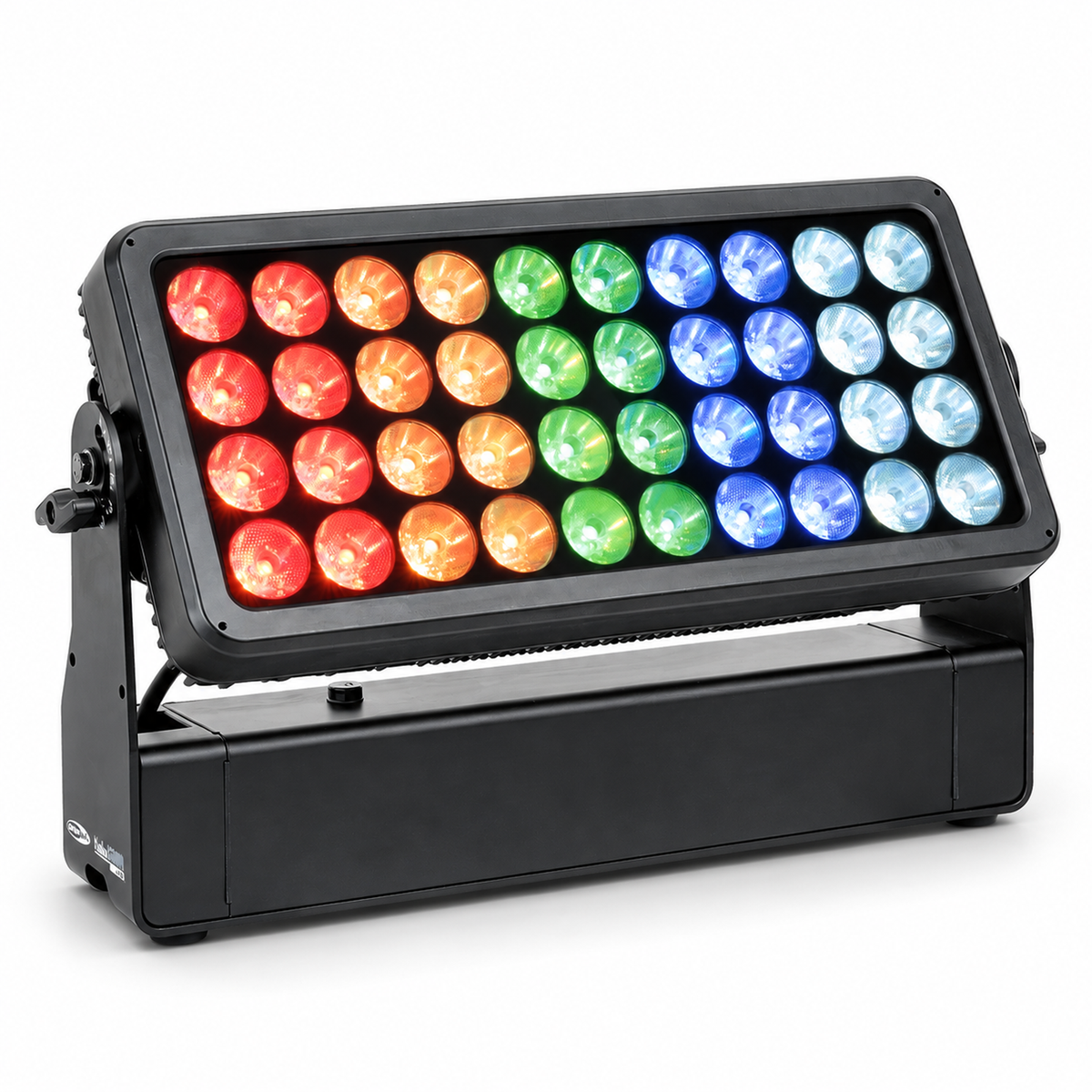

The Showtec Helix S5000 Q4 is a powerful professional IP65-rated LED wash light designed for high-output indoor and temporary outdoor illumination. Equipped with 40 x 10W RGBW 4-in-1 LEDs, it delivers rich colour mixing and an intense 10° beam with up to 54,000 lux at 2 metres. Flexible control includes DMX, Wireless DMX, Master/Slave, automatic and built-in programs, while five individually controllable LED sections allow more creative lighting effects.
KEY FEATURES & BENEFITS
- 40 x 10W RGBW LEDs – powerful output with full red, green, blue and white colour mixing
- 54,000 lux at 2 metres – high-intensity output suitable for illuminating larger areas
- IP65 rated – protected against dust and water for temporary outdoor applications
- 10° beam angle – produces a concentrated, powerful beam that can be modified using optional beam shapers
- 5-section LED control – allows the LED array to be divided into separate sections for dynamic effects
- Wireless DMX built in – reduces the need for long DMX cable runs
- Multiple DMX modes – 4, 6, 8, 20 and 24-channel operation for simple or detailed control
- 0–100% electronic dimming and 0–20Hz strobe – suitable for both smooth washes and energetic effects
- Quick-lock mounting system – designed to make professional installation and rigging quicker
- Die-cast aluminium housing – robust construction suitable for professional lighting applications
DESCRIPTION
The Showtec Helix S5000 Q4 is a professional high-power RGBW LED panel washer designed for demanding event, stage and architectural lighting applications.

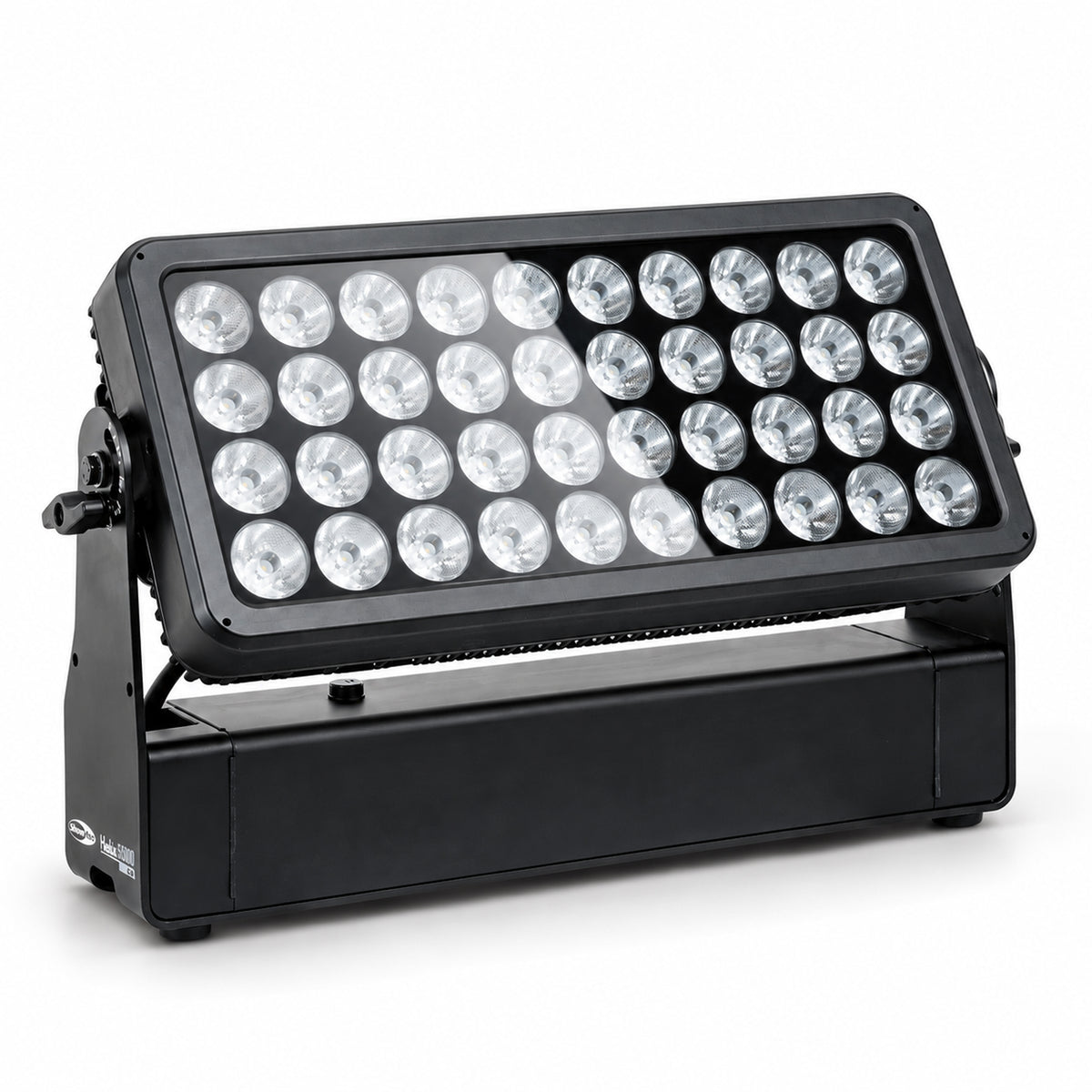

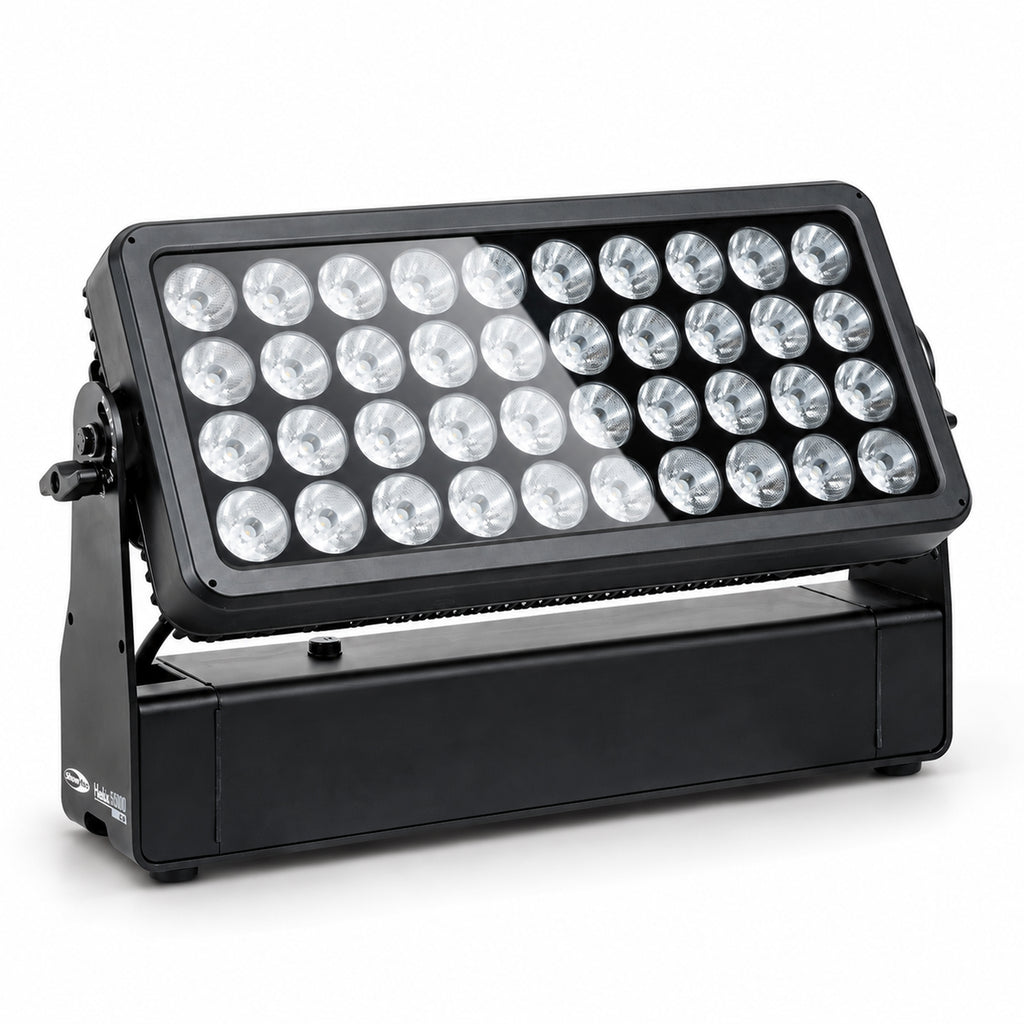

Its light engine consists of 40 Prolight Opto 10W RGBW 4-in-1 LEDs, producing an output of up to 54,000 lux at 2 metres. The standard 10° beam provides a powerful concentrated output, while optional beam-shaping accessories can be used where a wider or differently shaped wash is required.
For creative programming, the LED array can be divided into five separately controllable sections. This enables the Helix S5000 Q4 to operate as more than a conventional static wash, allowing colour and intensity effects to be created across the face of the fixture.
Control options include DMX512, Wireless DMX, Master/Slave, manual operation, automatic operation and built-in programs. Five DMX personalities – 4, 6, 8, 20 and 24 channels – allow the fixture to be configured according to the level of control required.
The IP65-rated enclosure makes the Helix particularly useful for temporary outdoor productions as well as indoor installations. Professional features including 5-pin DMX connections, PowerCON True1 power connectivity, an OLED display and quick-lock mounting hardware make it well suited to professional production environments.
SPECIFICATIONS
| Specification | Manufacturer Specification |
|---|---|
| Model | Showtec Helix S5000 Q4 |
| Order Code | 43725 |
| Light Source | 40 x Prolight Opto RGBW 4-in-1 LEDs |
| LED Power | 10W each |
| Light Output | 54,000 lux @ 2m |
| Beam Angle | 10° |
| Refresh Rate | 3.0kHz |
| Dimmer | 0–100% |
| Strobe | 0–20Hz |
| DMX Modes | 4, 6, 8, 20 or 24 channels |
| Control | Auto, Built-in Programs, Manual, Master/Slave, DMX512, W-DMX |
| Wireless DMX | Wireless Solutions |
| DMX Input | 5-pin XLR-HD |
| DMX Output | 5-pin XLR-HD |
| Display | OLED |
| Input Voltage | 100–240V AC, 50/60Hz |
| Power Consumption | 415W |
| Peak Power | 810W |
| Power Linking | 3 units @ 110V / 7 units @ 240V |
| DMX Linking | Up to 30 units |
| Power Connection | Neutrik PowerCON True1 |
| IP Rating | IP65 |
| Housing | Die-cast aluminium |

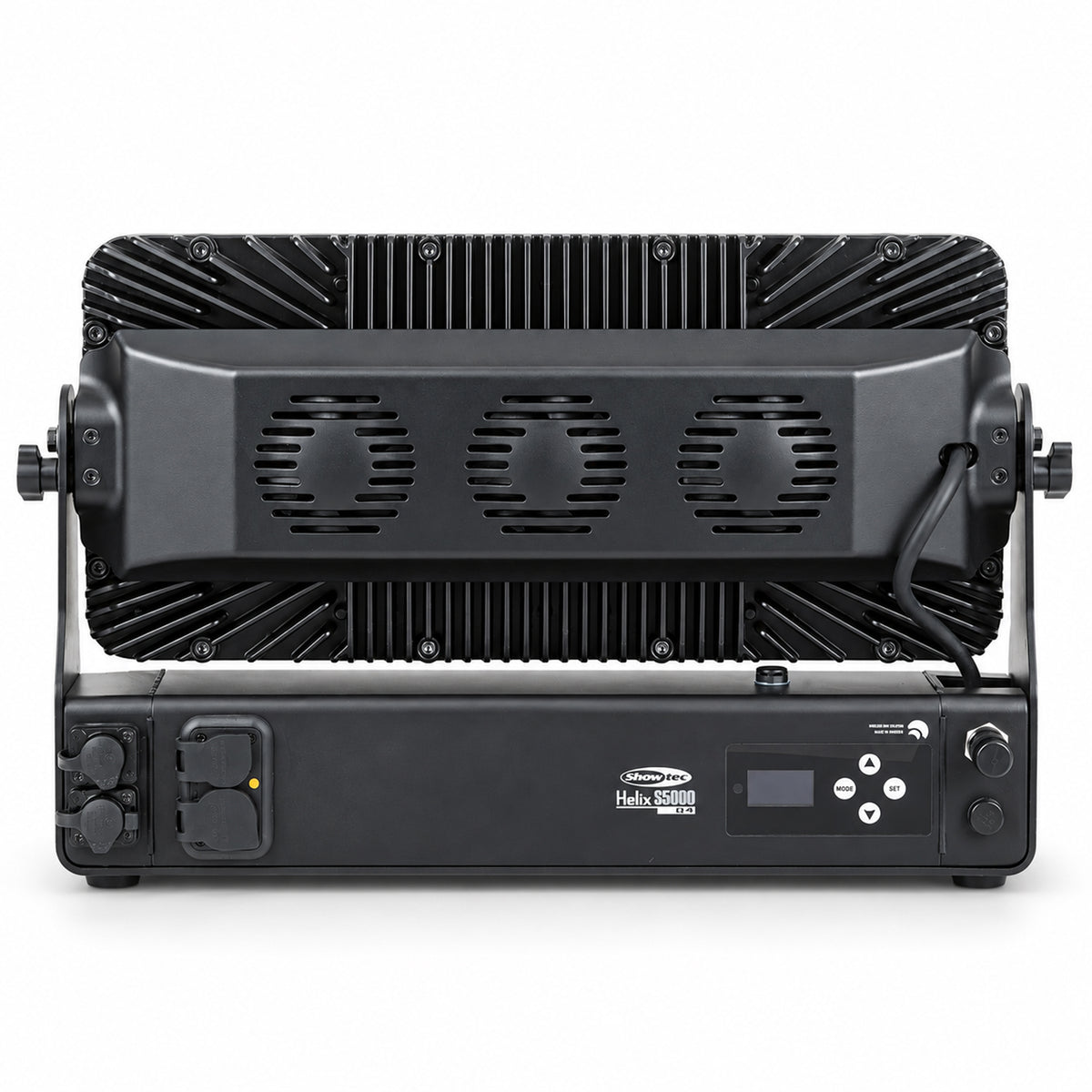

| Cooling | Cooling fans |
| Operating Temperature | -10°C to +40°C |
| Dimensions | 530 x 125 x 318mm (L x W x H) |
| Weight | 11.5kg |

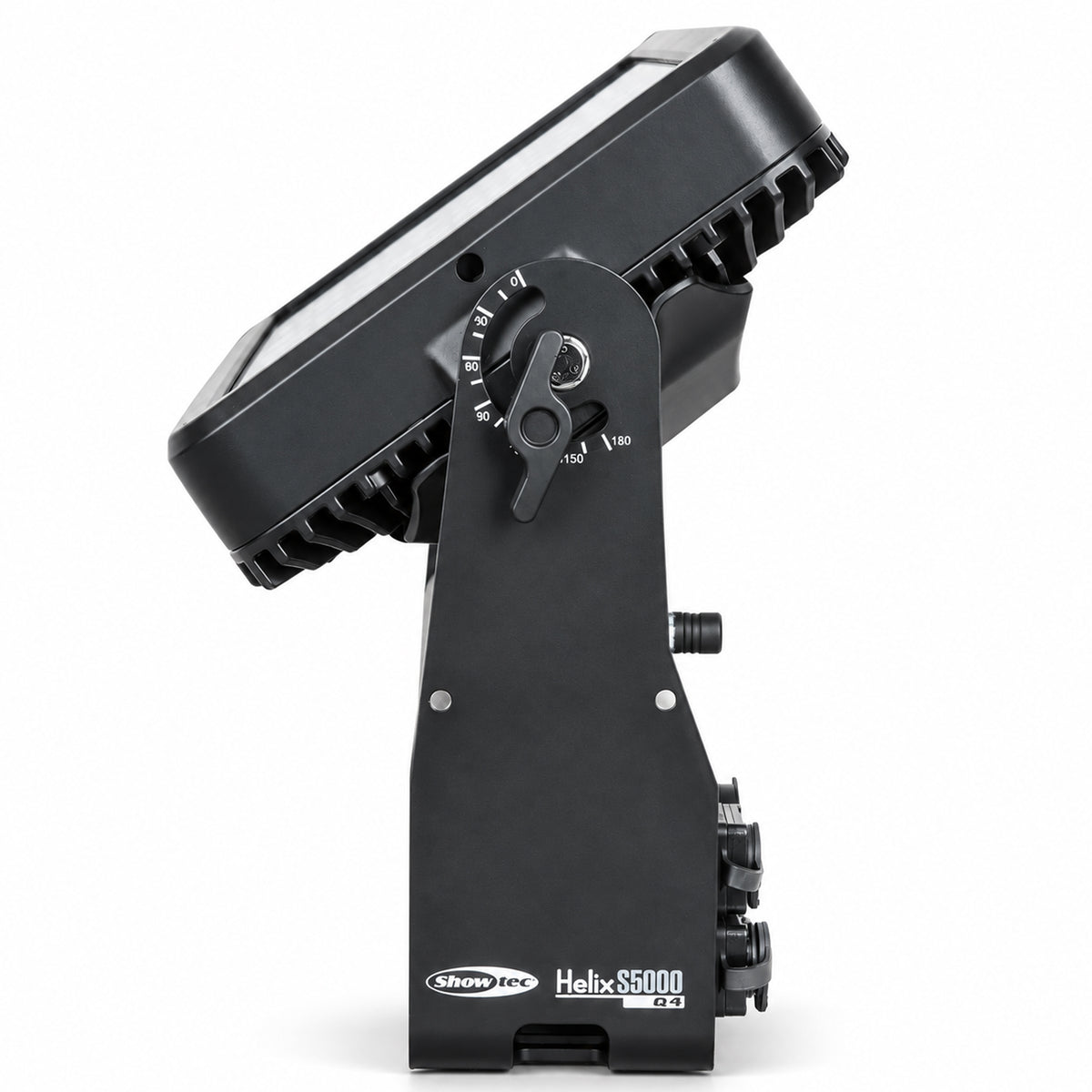

| Rigging | Quick-lock mounting system |
PERFECT FOR
- Outdoor events and festivals
- Professional stage productions
- Concert and live music lighting

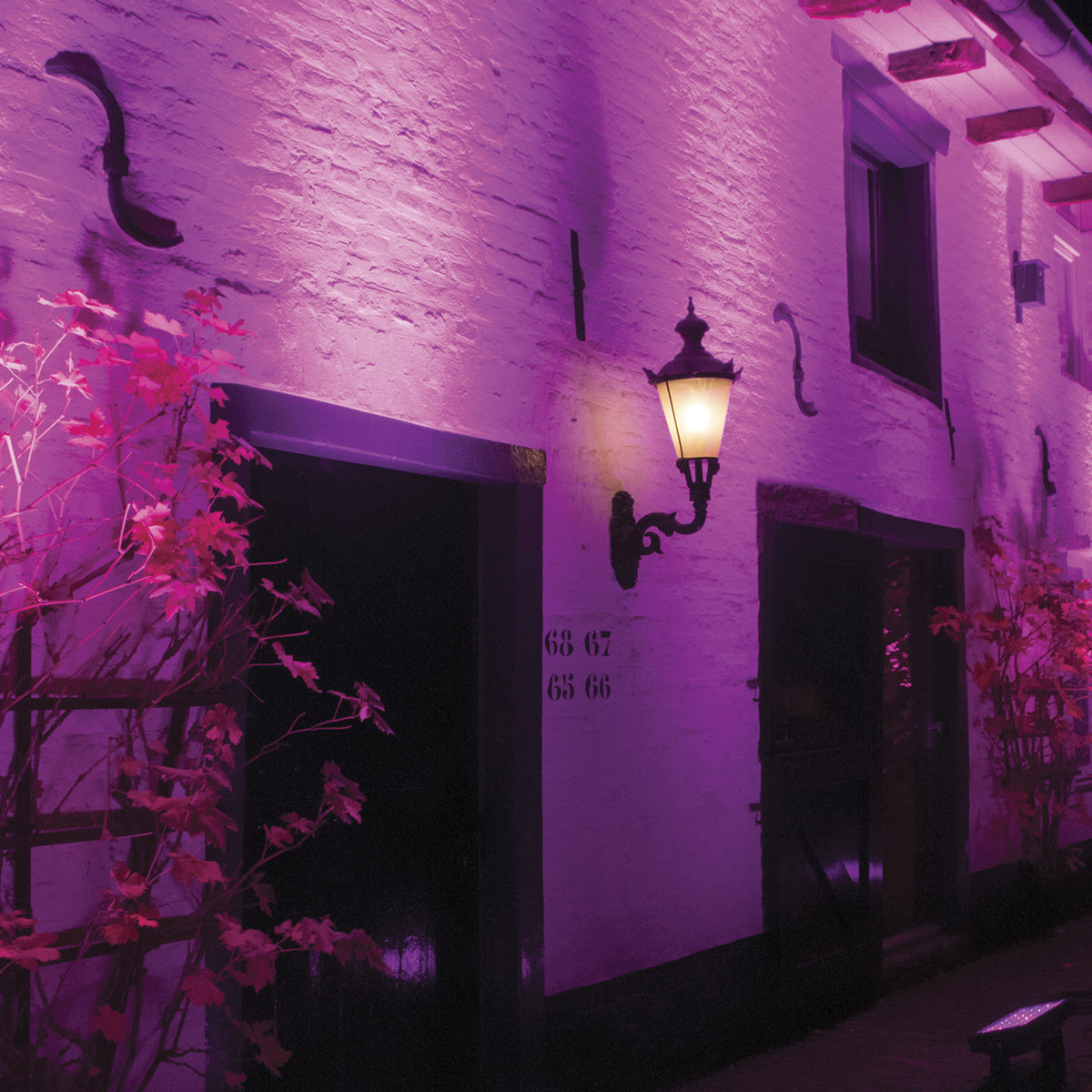

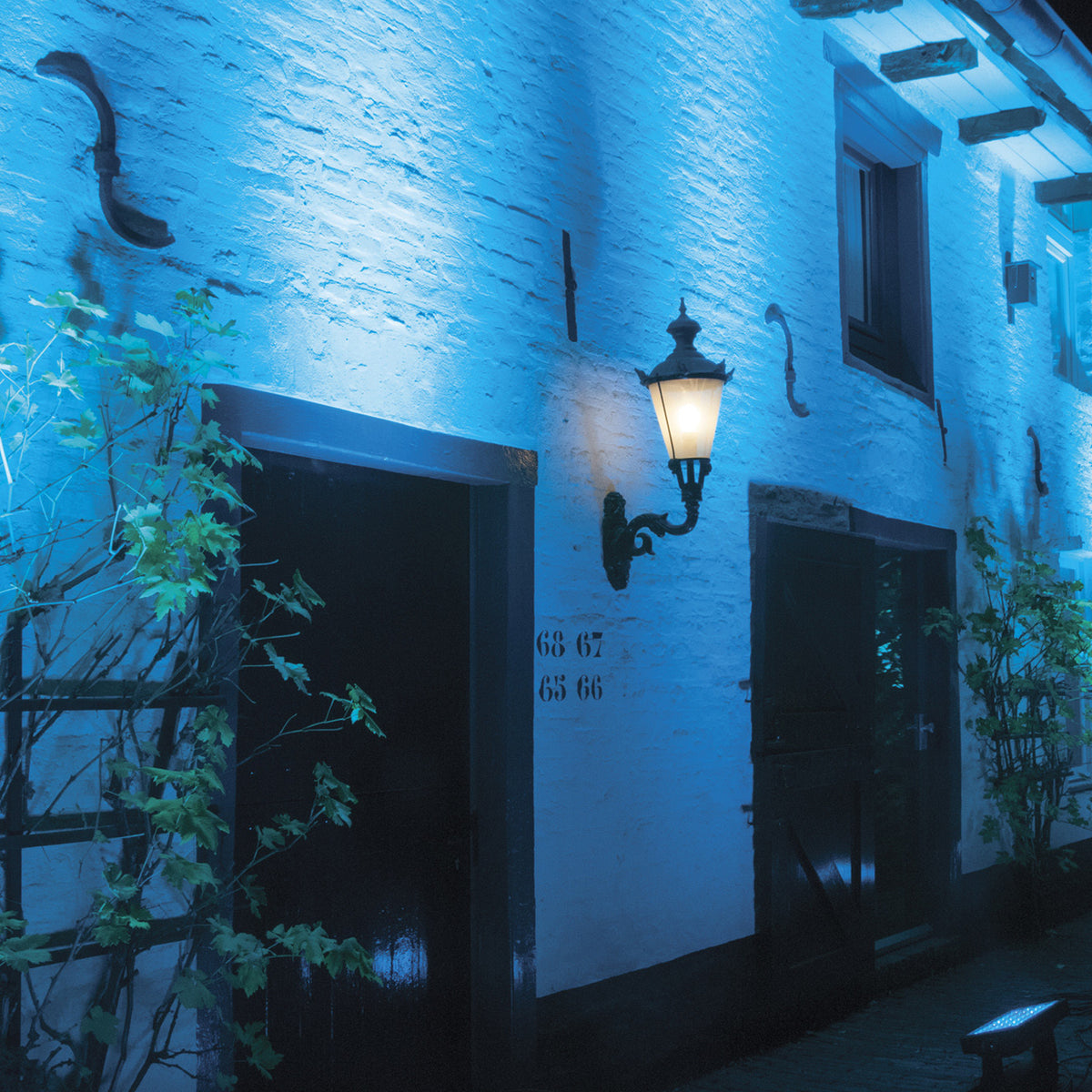

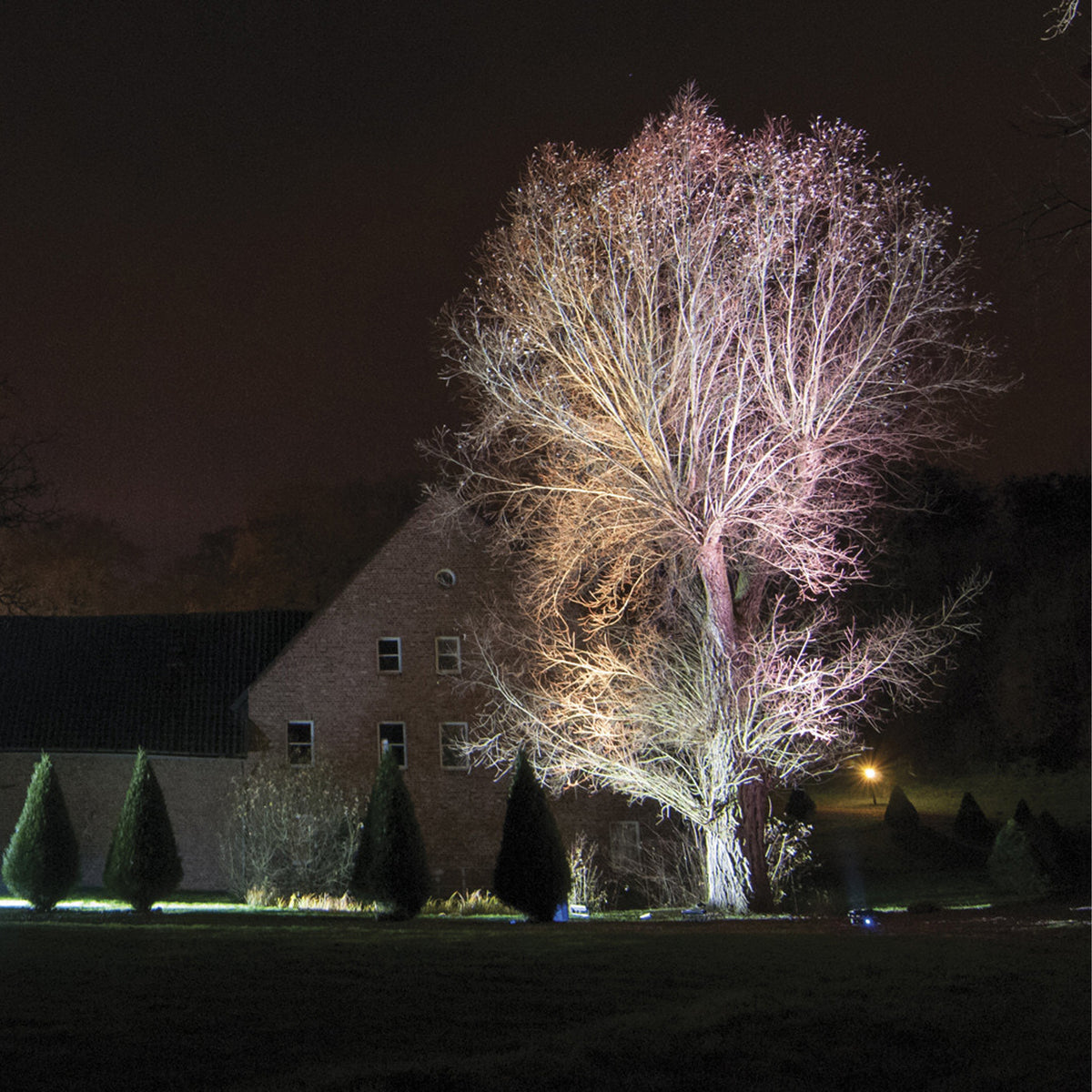

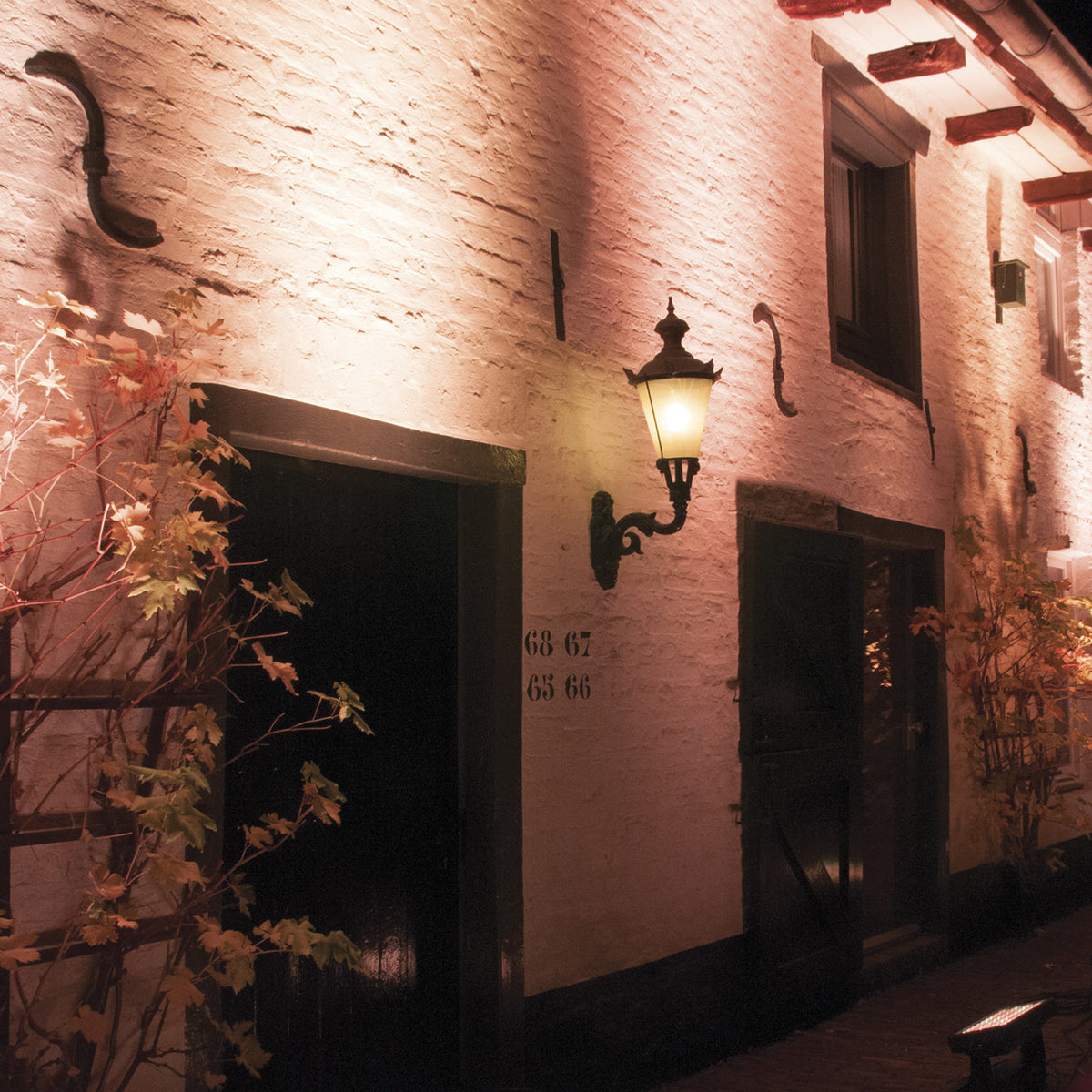

- Architectural and building illumination
- Large indoor venues
- Event production and rental companies
- Colour washing stages, scenery and structures
- Applications requiring powerful RGBW wash lighting
What's inside
- 1 x Showtec Helix S5000 Q4
- 1 x Schuko to Neutrik PowerCON True1 power cable – 1.5m
- 6 x Quick-locks
- 2 x Quick-lock brackets
- 4 x Rubber feet
- 1 x Mounting bracket
- 1 x User manual
