Sentinel Wash Q7Z ILS RGBW LED Moving Head Wash with Zoom
Sentinel Wash Q7Z ILS RGBW LED Moving Head Wash with Zoom
-
Free DeliveryOn Orders Over £100
-
Hassle-Free Returns14 Day Cooling Off Period
-
100% Secure ShoppingShop In Confidence

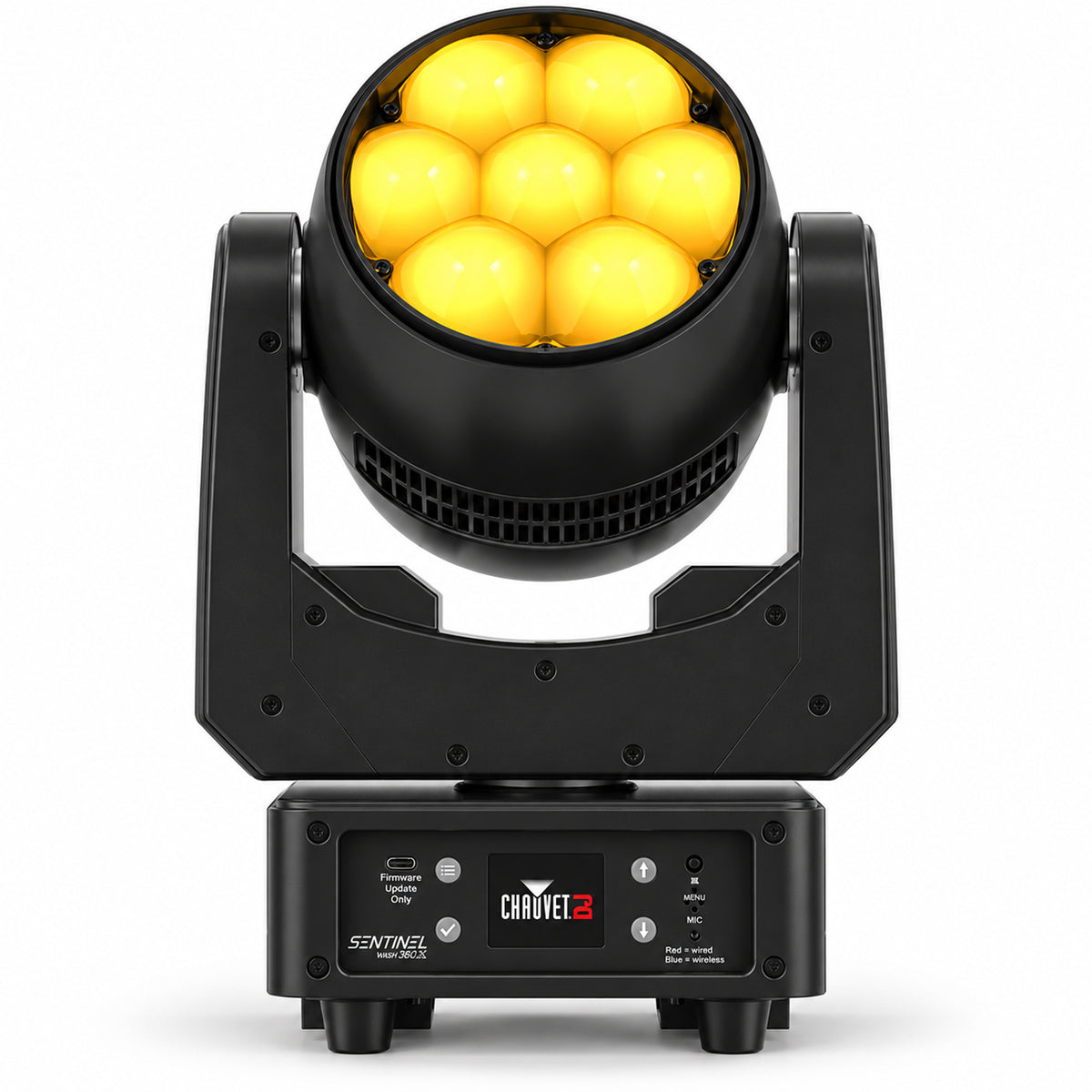

The CHAUVET DJ Sentinel Wash Q7Z ILS is a compact, powerful RGBW LED moving head wash designed for both short- and long-throw applications. Seven 20W quad-colour LEDs deliver rich colour mixing, while the motorised 5°–27° zoom allows the fixture to move from a concentrated beam to a broad wash. Built-in D-Fi provides wireless DMX or ILS communication, while ILS compatibility makes coordinated lighting setups quick and straightforward.
KEY FEATURES & BENEFITS
- 7 x 20W RGBW LEDs – powerful 140W total LED source with saturated colour mixing.
- Motorised 5°–27° zoom – easily changes from a narrow, concentrated beam to a wide wash.
- Built-in D-Fi transceiver – allows DMX or ILS signals to be transmitted wirelessly.
- ILS compatible – integrates into CHAUVET DJ's Integrated Lighting System for coordinated lighting shows.
- Short- and long-throw capability – adjustable zoom makes the fixture suitable for different venue sizes and positioning.
- Full-colour LCD display – provides straightforward access to fixture settings and functions.
- Totem Mode – restricts movement to help keep the lighting focused on the dance floor.
- Power linking – link multiple fixtures together to reduce the number of individual mains connections required.
- Flexible DMX control – selectable 9 or 14-channel DMX operation.
- Smooth pan and tilt movement – up to 540° pan and 225° tilt for dynamic moving wash effects.
DESCRIPTION
The CHAUVET DJ Sentinel Wash Q7Z ILS combines the flexibility of a moving head with a powerful RGBW wash and motorised zoom. Its light source consists of seven quad-colour RGBW LEDs producing 140W total output, allowing saturated colours and versatile colour mixing from a relatively compact fixture.
A major feature is its 5° to 27° motorised zoom. At the narrow setting, the Sentinel Wash Q7Z ILS can produce a more concentrated beam for longer throws, while widening the zoom creates a broader wash suitable for covering larger areas.
The fixture incorporates a built-in D-Fi transceiver, allowing compatible DMX or ILS signals to be communicated wirelessly. It is also fully compatible with the CHAUVET DJ ILS ecosystem, enabling different ILS-compatible fixture types to be coordinated from a compatible controller.

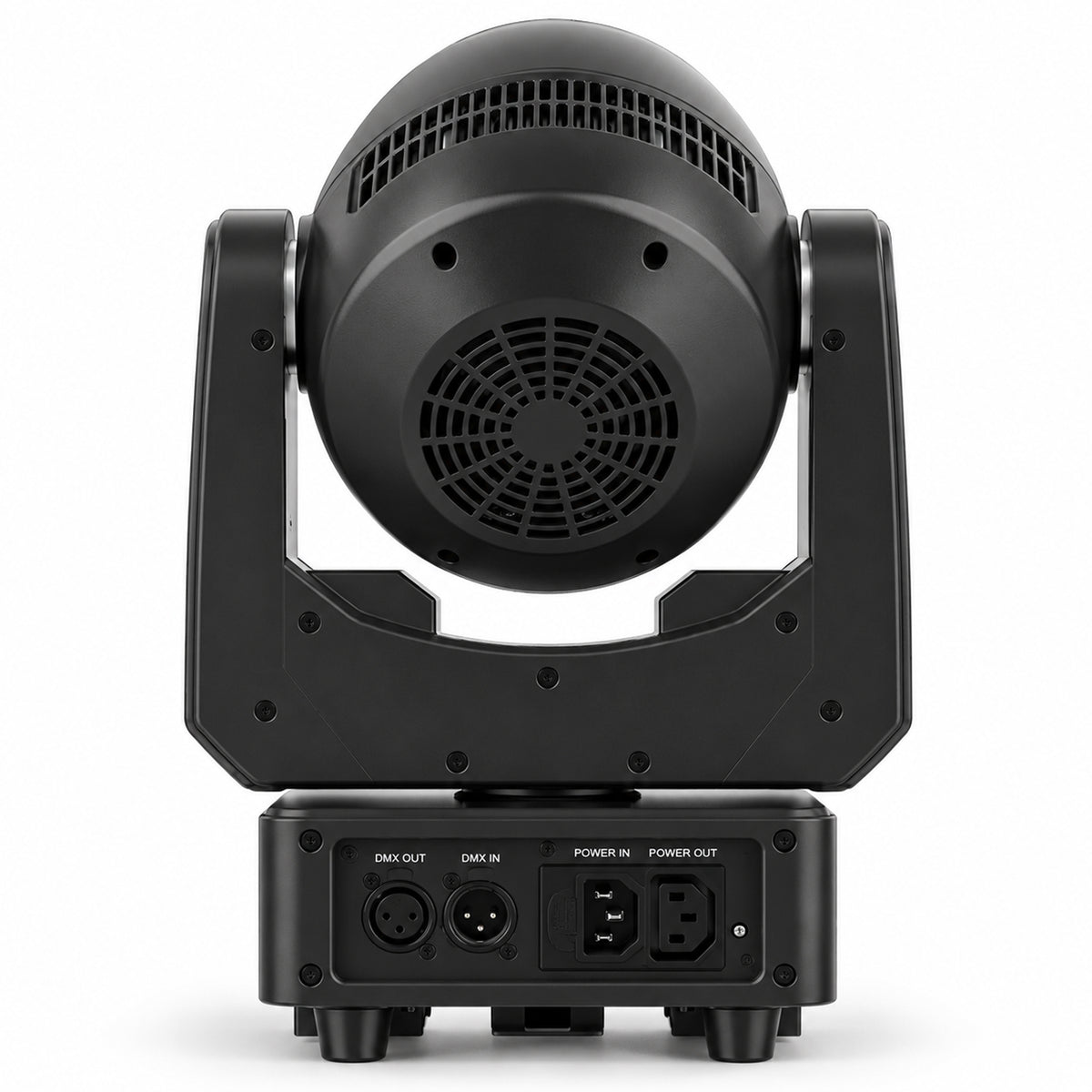

For conventional lighting installations, the Sentinel Wash Q7Z ILS offers 9 or 14-channel DMX control via 3-pin XLR, together with selectable pan and tilt ranges. Totem Mode can restrict the fixture's movement so effects remain focused on the dance floor.
Power linking allows multiple fixtures to share a power connection, while the full-colour LCD display provides direct access to the fixture's functions and settings.
SPECIFICATIONS
| Specification | Manufacturer Specification |
|---|---|
| Light Source | 7 x quad-colour RGBW LEDs |
| LED Power | 140W total |
| LED Life Expectancy | 50,000 hours |
| Zoom Angle | 5°–27° |
| DMX Channels | 9 or 14 |
| DMX Connectors | 3-pin XLR |
| Pan / Tilt | 540° / 225° |
| Selectable Pan Ranges | 180°, 360°, 540° |
| Selectable Tilt Ranges | 90°, 180°, 225° |
| Strobe Rate | 0–20Hz |
| Illuminance – Narrow 5° | 30,537 lux @ 2m |
| Illuminance – Wide 27° | 3,390 lux @ 2m |
| Input Voltage | 100–240VAC, 50/60Hz, auto-ranging |
| Power Consumption @ 230V | 146W, 0.7A @ 230V, 50Hz |
| Power Linking @ 230V | Up to 12 units |
| Dimensions | 362 x 255 x 188mm |
| Weight | 6.3kg |
| Cable Length | 1.5m |
| Approvals | CE, RoHS, FCC |
| Optional Controllers | IRC-6, ILS Command |
PERFECT FOR
- Mobile DJs
- Bars and clubs
- Live events and entertainment venues
- Dance floors
- Small stages
- ILS-based lighting systems
- DMX-controlled lighting installations
- Applications requiring adjustable narrow-beam and wide-wash coverage
These applications align with CHAUVET DJ's published applications and the fixture's stated short-/long-throw functionality.
What's inside
- 1 x CHAUVET DJ Sentinel Wash Q7Z ILS
- 1 x Power cord
- 1 x Hanging bracket
- 1 x Quick Reference Guide
