The Chauvet DJ Pinspot Q1Z ILS is a compact pinspot built around a 20W quad-colour RGBW LED. Its adjustable 5°–25° manual zoom supports focused short-throw and longer-throw lighting applications, while ILS compatibility helps integrate it into coordinated lighting shows. Control options include DMX, an optional IRC-6 remote and compatible ILS controllers. An OLED display provides straightforward access to onboard functions.
- Powerful 20W RGBW LED produces versatile coloured or white accent lighting.
- Adjustable 5°–25° manual zoom suits both narrow, focused beams and wider coverage.
- ILS compatibility enables coordinated shows with different ILS fixture types.
- Three DMX modes—4, 6 or 7 channels—provide flexible programming options.
- D-Fi USB compatibility supports wireless DMX or master/slave operation when fitted with the separately sold adapter.
- Optional IRC-6 remote control offers convenient wireless, non-DMX operation.
- OLED display makes onboard settings and functions easy to navigate.
- Variable 0–33Hz strobe adds dynamic effects when required.
- Auto-ranging 100–240V input supports operation across different mains supplies.
NOTE - Graded System used on demo in showroom and exhibitions, maybe some minor marks, but generally as new - 6 Month Warrant from P.O.S. from Manufacturer

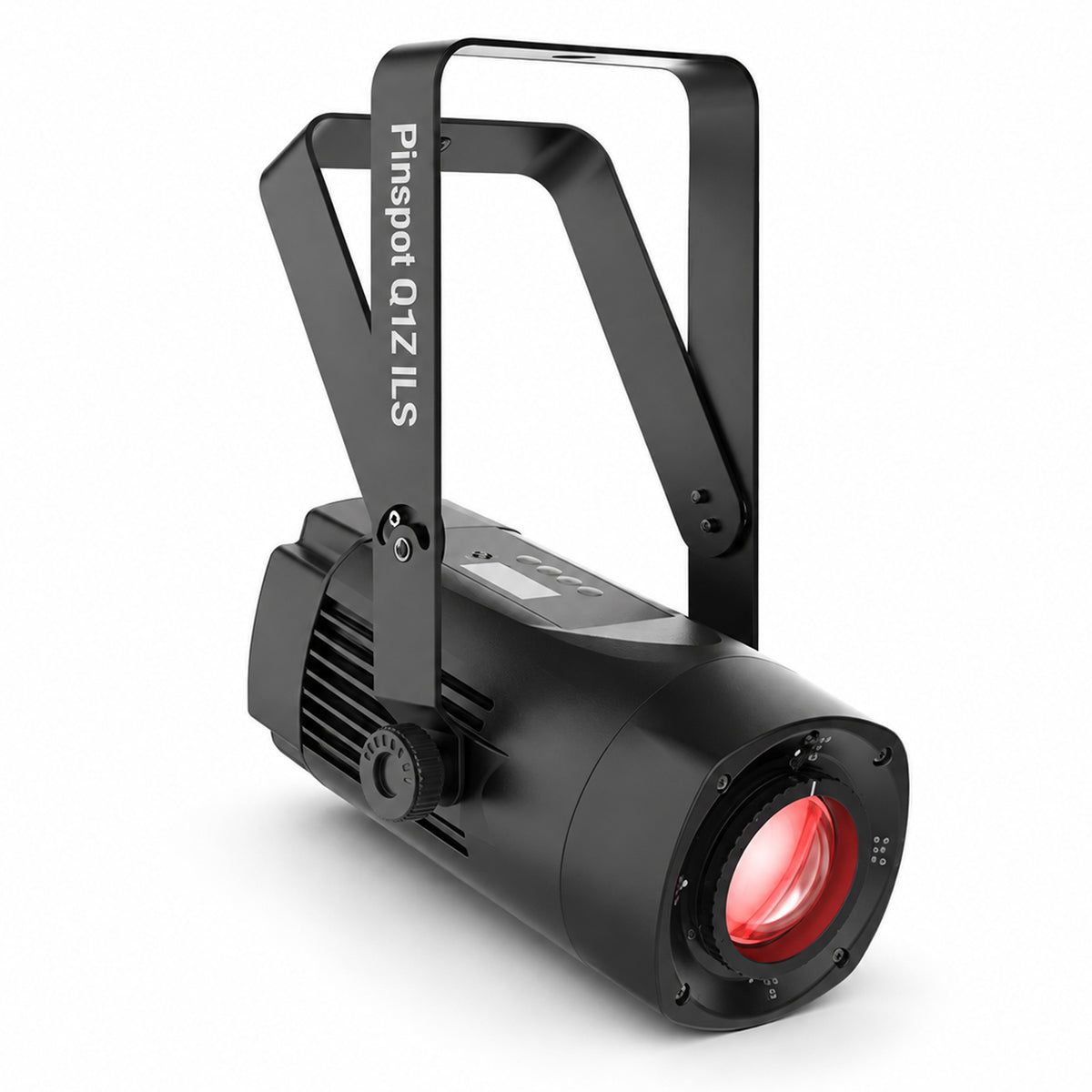

The Chauvet DJ Pinspot Q1Z ILS is a compact LED lighting fixture designed to produce precise, controllable accent illumination. Its single 20W quad-colour LED combines red, green, blue and white output, allowing it to create saturated colours as well as cleaner white light from one fixture.
A manually adjustable zoom range of 5° to 25° lets the operator tailor the beam to the application. Select a tight beam for concentrated illumination or widen it when broader coverage is needed. The fixture delivers up to 4,081 lux at two metres with the narrow setting and 623 lux at two metres with the wide setting.

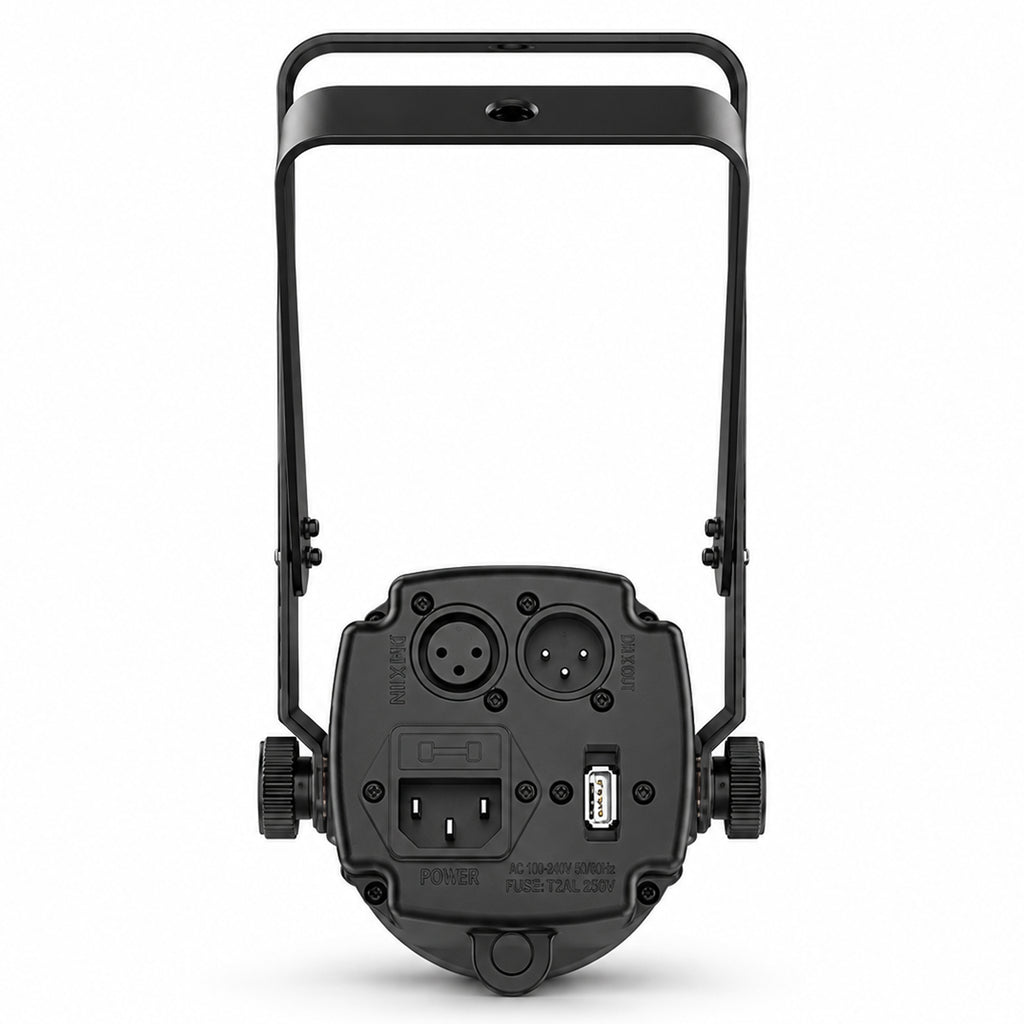

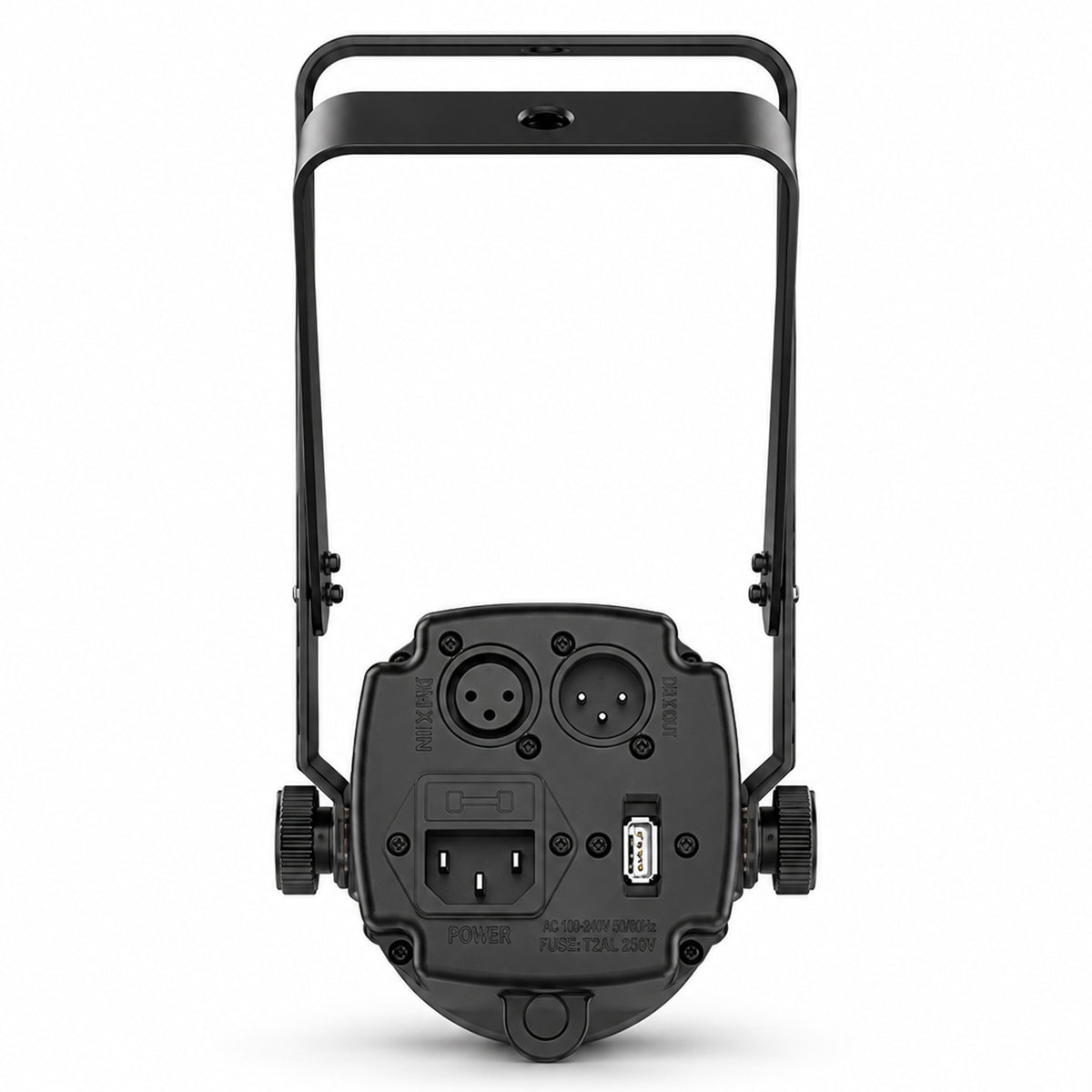

Integration options include three-pin DMX connections and a choice of 4-, 6- or 7-channel operation. The fixture is also compatible with Chauvet DJ’s Integrated Lighting System, allowing it to participate in coordinated shows controlled by an ILS leader such as the optional ILS Command. Adding an optional D-Fi USB adapter enables wireless DMX or master/slave control, while the separately available IRC-6 provides simple wireless non-DMX operation.

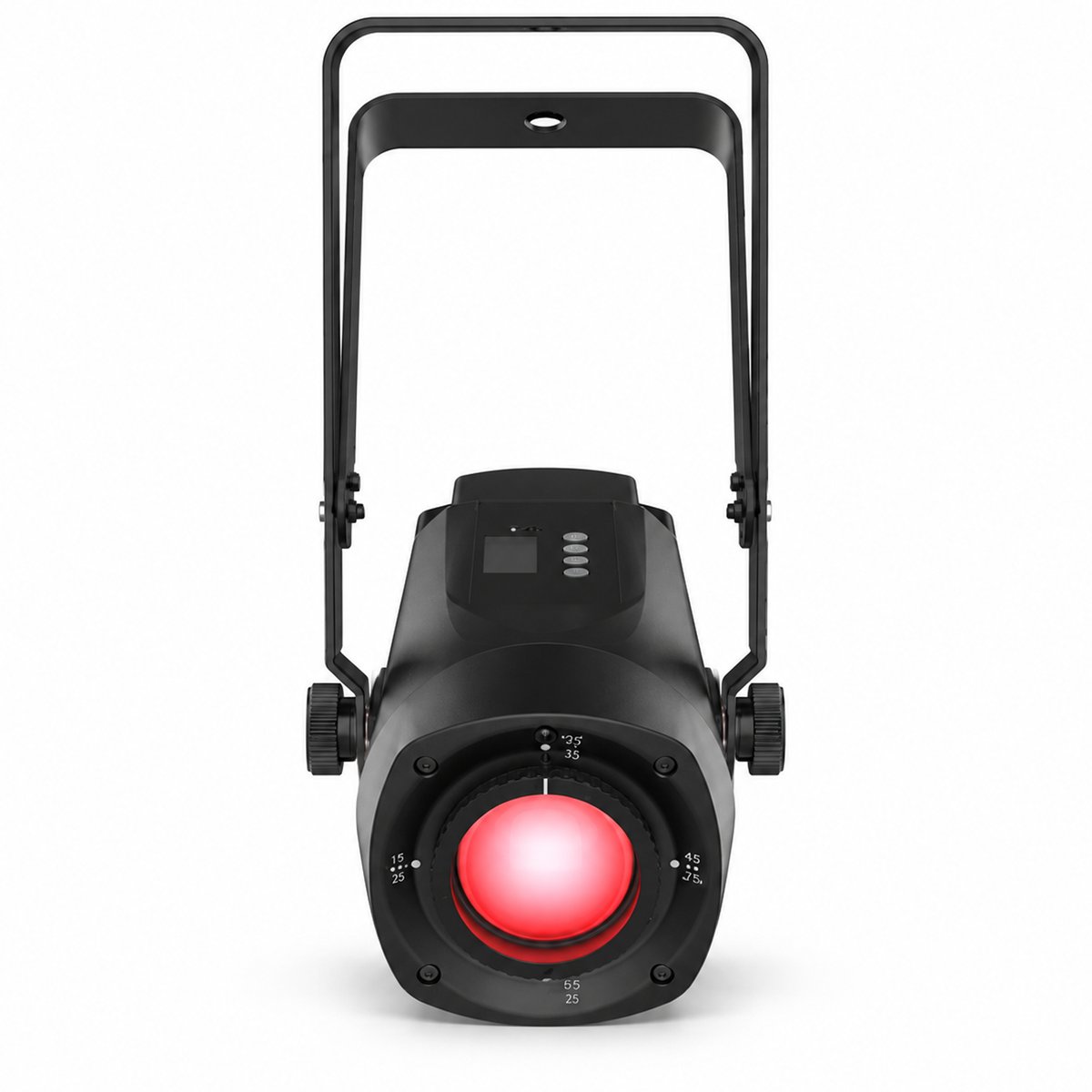

An onboard OLED display provides direct access to fixture functions and menu settings. Measuring 308mm long and weighing 1.36kg, the Pinspot Q1Z ILS is compact enough for portable lighting systems as well as fixed entertainment installations.
| Specification | Manufacturer-confirmed detail |
|---|---|
| Light source | 1 × 20W quad-colour RGBW LED |
| LED life expectancy | 50,000 hours |
| Zoom angle | 5°–25° |
| Light output | 617 lumens |
| Illuminance, narrow | 4,081 lux at 2m |
| Illuminance, wide | 623 lux at 2m |
| Strobe rate | 0–33Hz |
| DMX channels | 4, 6 or 7 |
| DMX connectors | 3-pin XLR |
| Input voltage | 100–240VAC, 50/60Hz, auto-ranging |
| Power and current at 120V | 9W, 0.3A at 60Hz |
| Power and current at 230V | 20W, 0.2A at 50Hz |
| Dimensions | 308 × 89 × 217mm |
| Weight | 1.36kg |
| Bracket mounting hole | M12 |
| Approvals | CE, UKCA and RoHS |
| Optional controllers | IRC-6 and ILS Command |
| Wireless compatibility | D-Fi USB adapter, sold separately |
Perfect For
- Mobile DJ lighting systems
- Coordinated Chauvet DJ ILS installations
- Focused stage and performance lighting
- Short- or long-throw accent illumination
- DMX-controlled entertainment lighting rigs
- Bars and clubs
- Events and small stages
- Theatre, education and worship venues
What's Inside
- 1 × Chauvet DJ Pinspot Q1Z ILS
- 1 × Power cord
- 1 × Quick Reference Guide
