Pinspot Bar 6-Head LED Pinspot Lighting Fixture (Graded)

Pinspot Bar 6-Head LED Pinspot Lighting Fixture (Graded)

£211.54
£211.54 £406.80
Skip to product information
Pinspot Bar 6-Head LED Pinspot Lighting Fixture (Graded)
  • Pinspot Bar 6-Head LED Pinspot Lighting Fixture (Graded)
  • Pinspot Bar 6-Head LED Pinspot Lighting Fixture (Graded)
  • Pinspot Bar 6-Head LED Pinspot Lighting Fixture (Graded)
  • Pinspot Bar 6-Head LED Pinspot Lighting Fixture (Graded)
  • Pinspot Bar 6-Head LED Pinspot Lighting Fixture (Graded)
Pinspot Bar 6-Head LED Pinspot Lighting Fixture (Graded)
Chauvet

Pinspot Bar 6-Head LED Pinspot Lighting Fixture (Graded)

Code: CHAPINSPOTBAR(GRADED)
Now £211.54
Was £406.80 | Save: £195.26
(FREE Delivery)
Item in Stock| Usually dispatched within 24 hours
  • Free Delivery
    On Orders Over £100
  • Hassle-Free Returns
    14 Day Cooling Off Period
  • 100% Secure Shopping
    Shop In Confidence

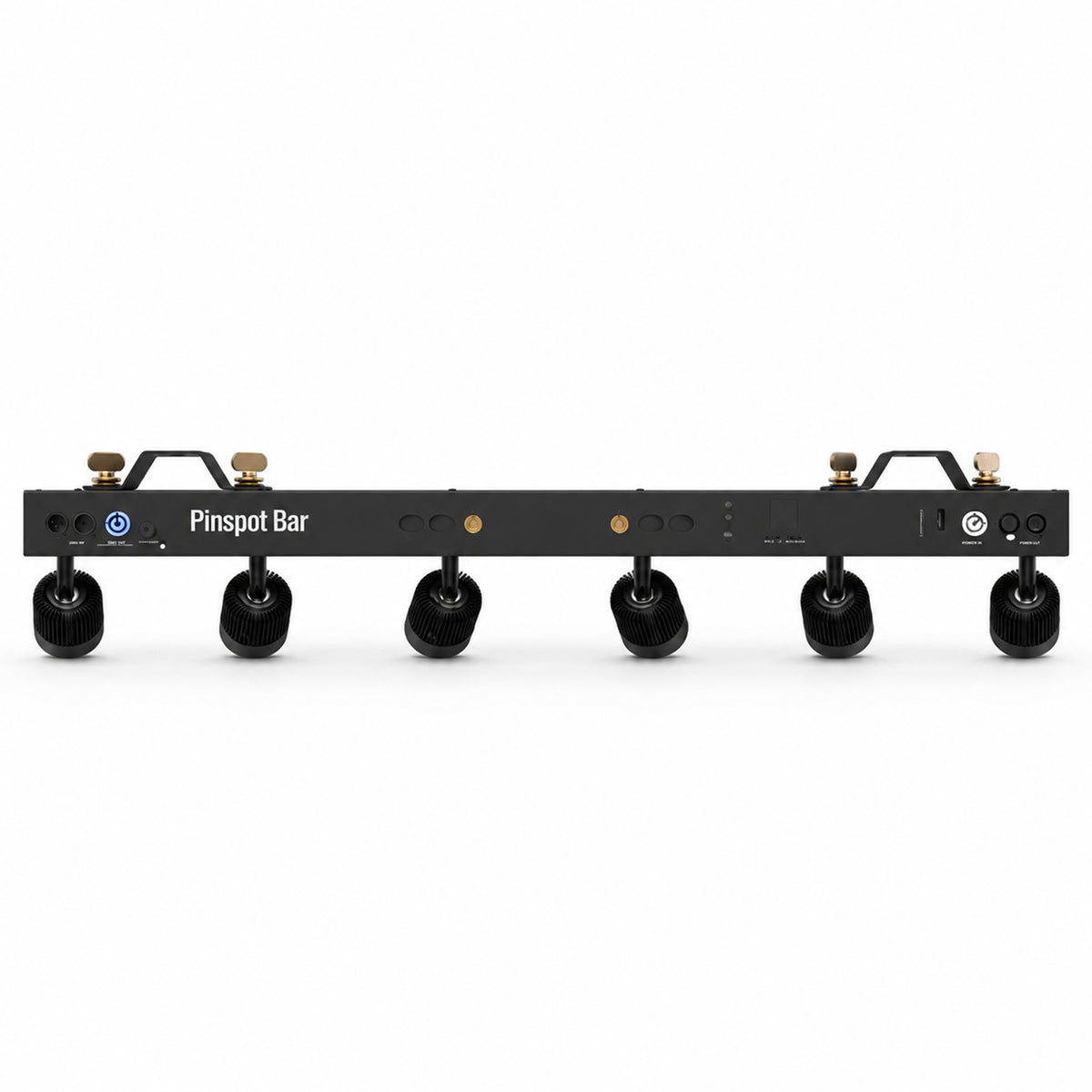

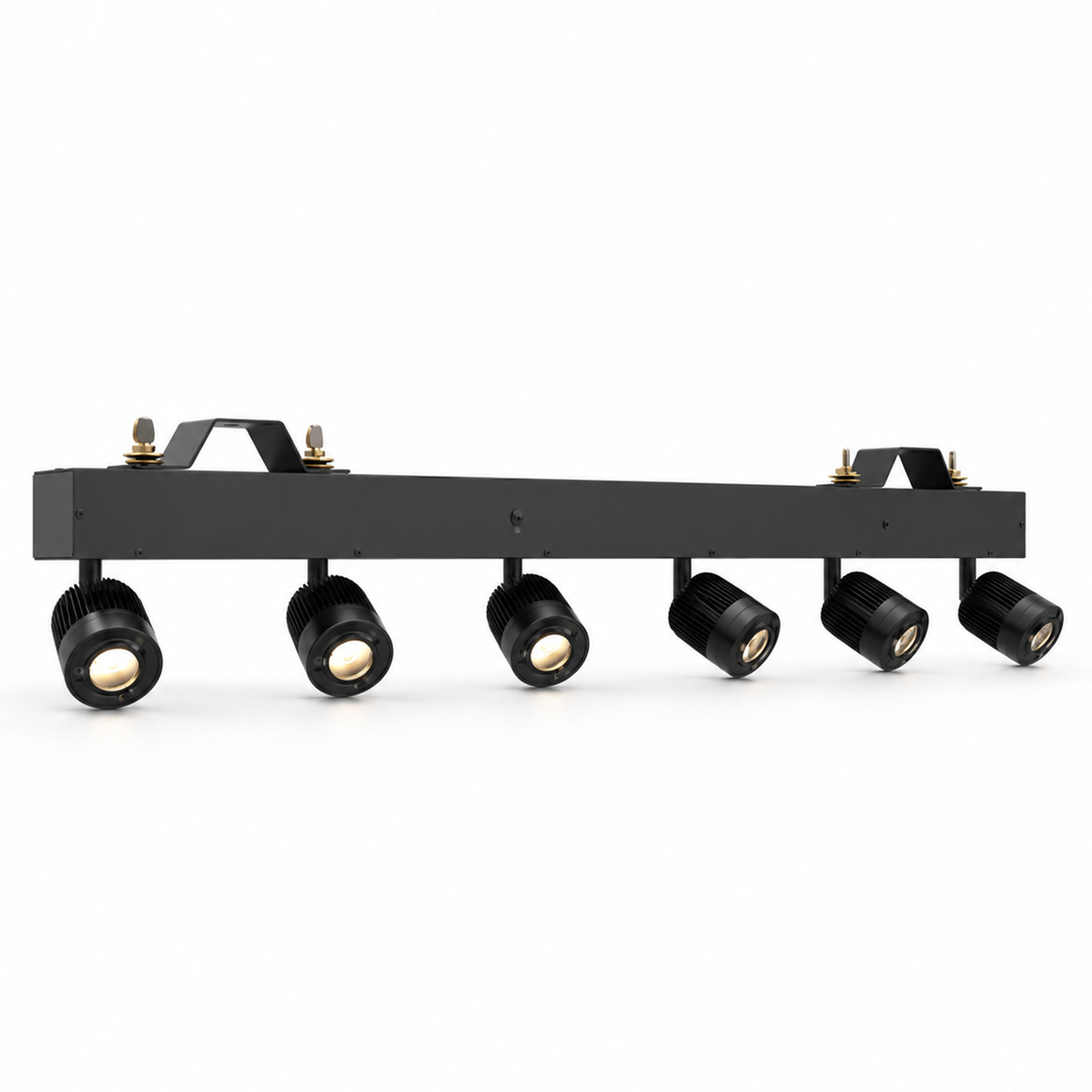

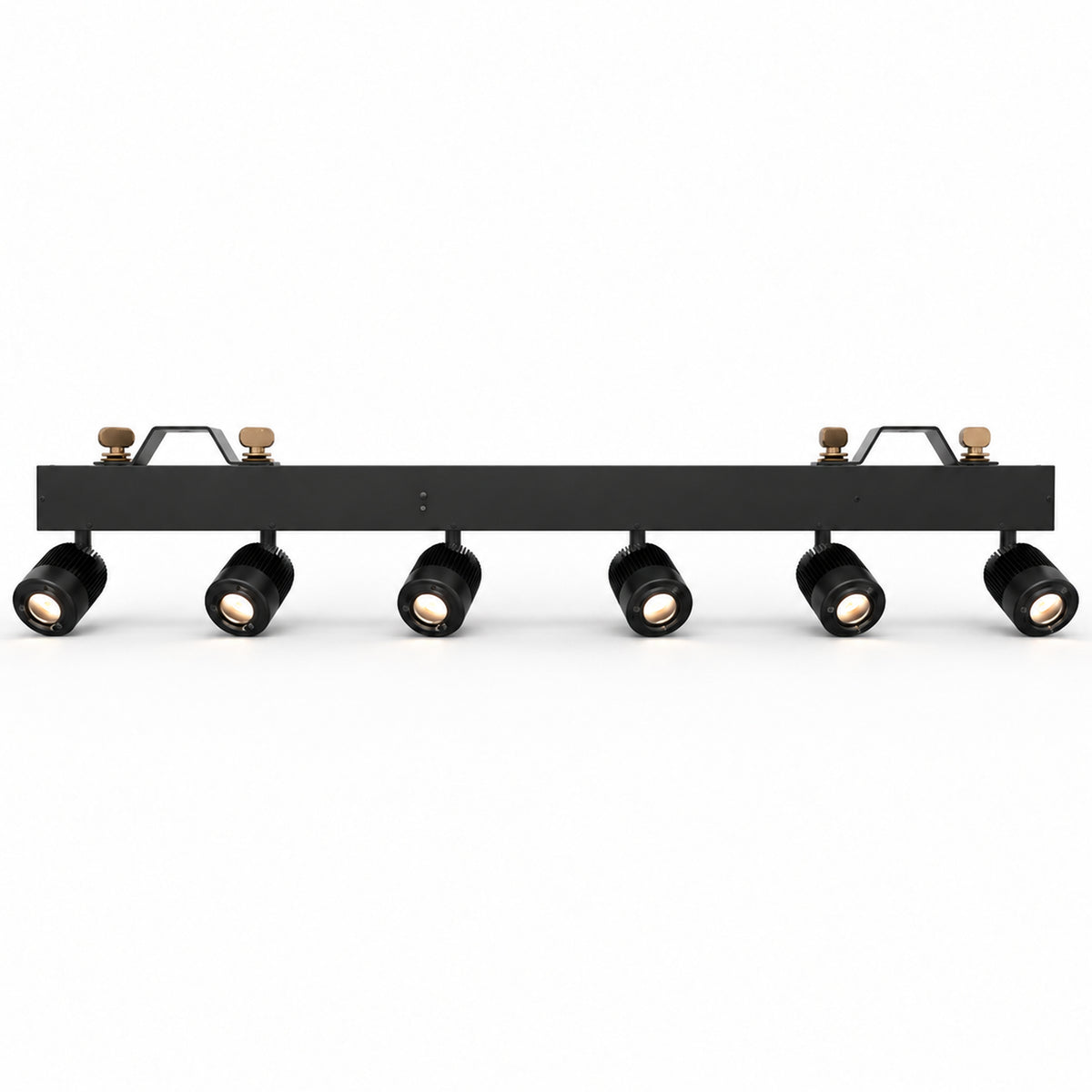

The CHAUVET DJ Pinspot Bar is a professional lighting fixture featuring six independently controllable warm-white LED pinspots. Designed for precise accent lighting, it can highlight displays, décor, buffet areas and other event features while maintaining a clean installation. Interchangeable beam diffusers and 2700K CTO filters provide additional flexibility, while DMX control, power linking and multiple mounting options make it suitable for temporary events and installed applications.

NOTE - Graded System used on demo in showroom and exhibitions, maybe some minor marks, but generally as new - 6 Month Warrant from P.O.S. from Manufacturer

  • Six independently controlled pinspots provide flexible, precisely programmed accent lighting.
  • High-output 15W warm-white LEDs recreate the appearance of traditional incandescent lamps with lower maintenance requirements.
  • Supplied 10° and 20° diffusers let you adapt the beam coverage to different subjects and spaces.
  • Included 2700K CTO filters produce a warmer appearance when required.
  • Supports 1-, 6- and 11-channel DMX modes for simple or detailed fixture control.
  • Compatible with the optional IRC-6 remote and D-Fi USB system for convenient wireless control.
  • Power linking reduces the number of separate mains cable runs required.
  • Included Omega brackets support multiple mounting arrangements, including pipe-and-drape installations.
  • Flicker-free operation makes the fixture suitable for on-camera environments.
  • Auto-ranging 100–240V power input supports use across different mains-voltage regions.


The CHAUVET DJ Pinspot Bar combines six high-output LED pinspots in a single professional fixture. Each head uses a 15W warm-white LED and can be controlled independently, allowing individual objects or areas to be highlighted from one compact lighting bar. Its native 4000K colour temperature provides a clean white output, while the supplied 2700K CTO filters offer a warmer, more traditional appearance.

A focused 5° beam is suitable for precise accent lighting. The included 10° and 20° diffusers broaden the output when greater coverage is needed, giving users the flexibility to adapt the fixture for different displays, décor and event layouts.

Control is available through the onboard digital display or via DMX using 3-pin or 5-pin XLR connections. Optional IRC-6 and D-Fi USB accessories provide additional wireless control options. Three DMX personalities—1, 6 and 11 channels—allow the bar to be operated as a simple complete fixture or with more detailed control over its individual heads.

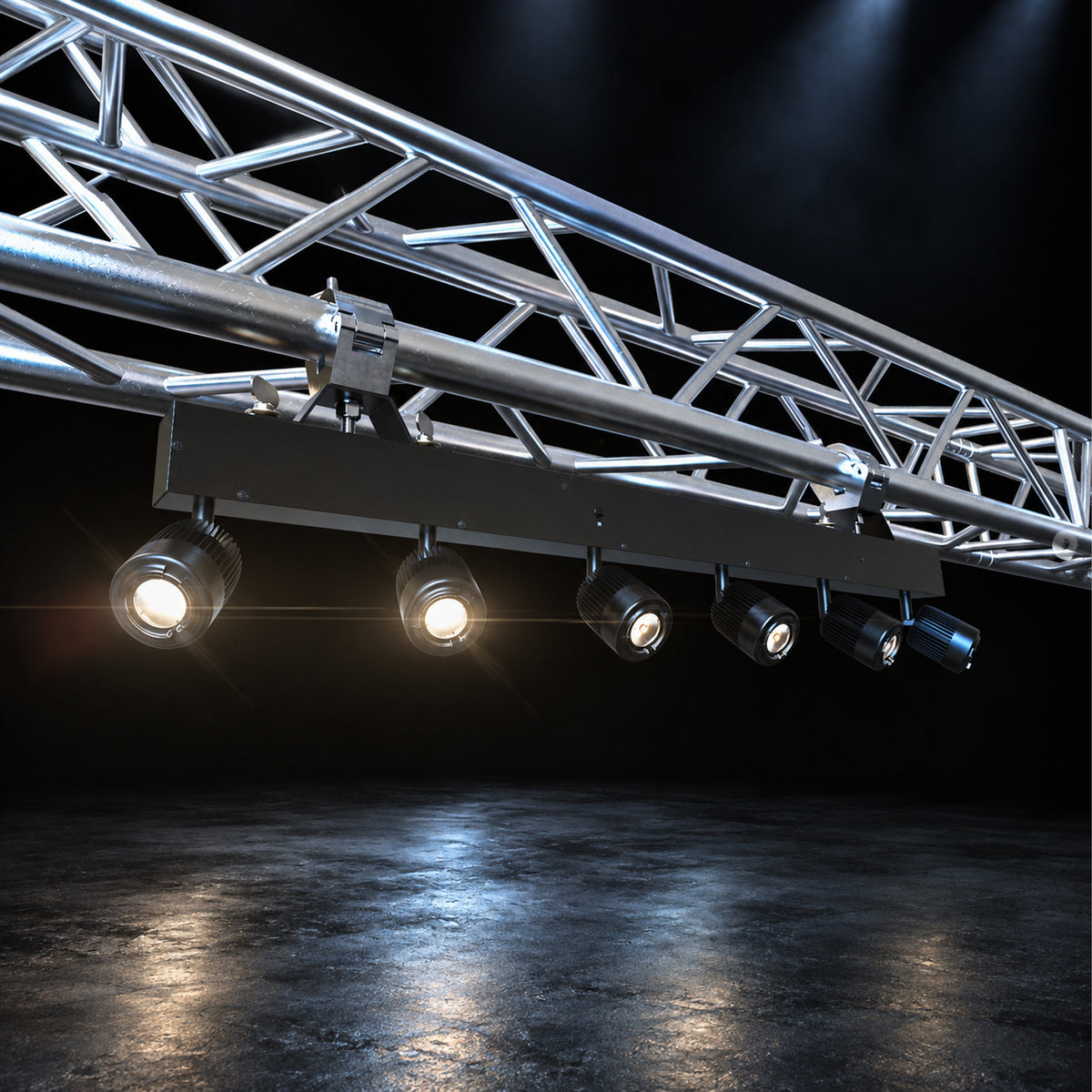

Power-linking capability helps simplify multi-fixture installations, while the included Omega brackets provide versatile mounting options, including use with pipe-and-drape systems. Flicker-free output also supports applications where photography or video recording is required.


Specification Manufacturer-confirmed details
Light source 6 × 15W warm-white LEDs
LED life expectancy 50,000 hours
Colour temperature 4000K
CRI 81
Beam angle 5°
Field angle 11°
Illuminance 7,707 lux at 2m per pod
DMX channels 1, 6 or 11
DMX connections 3-pin and 5-pin XLR
PWM frequency 1,000Hz
Input voltage 100–240VAC, 50/60Hz, auto-ranging
Power consumption 171W, 1.4A at 120V/60Hz
Power consumption 191W, 0.8A at 230V/50Hz
Power linking Up to 8 units at 120V; 13 units at 230V
Dimensions 1,000 × 119 × 131mm
Weight 4.3kg
Bracket mounting hole 13mm
Optional controllers IRC-6 and D-Fi USB
Approvals CE, RoHS

Perfect For

  • Highlighting buffet and food-service displays
  • Illuminating exhibition pieces and displays
  • Accenting event décor and centrepieces
  • Upscale event lighting installations
  • Pipe-and-drape lighting arrangements
  • Photography and video environments requiring flicker-free lighting

What's inside

  • 1 × CHAUVET DJ Pinspot Bar
  • 1 × Power cord
  • 2 × Omega brackets
  • 6 × 10° diffusers
  • 6 × 20° diffusers
  • 6 × 2700K CTO filters
  • 1 × Quick Reference Guide

Pan and Tilt: 360°, 180°

Light Source: 3 LEDs (warm white) 5 W, (1.3 A), 50,000 hours life expectancy

PWM Frequency: 35.7 MHz

Beam Angle: 5° (per pod)

Field Angle: 10° (per pod)

Maximum Run Time: (all on): up to 8 hours

Recharge Time: 7.5 hours

Illuminance: 3,898 lux @ 2 m (per pod)

Input Voltage: 15 VDC, 1.6 A (external power supply: 100 to 240 VAC, 50/60 Hz)

Power and Current: 19 W, 0.3 A @ 120 V, 60 Hz

18 W, 0.2 A @ 230 V, 50 Hz

Weight: 4.2 lb (1.9 kg)

Size: 14 x 5 x 4 in (358 x 127 x 106 mm)

Approvals: CE

Color Temperature: 4000 K

Threaded Clamp Hole: M10

Included Controllers: IRC-6

What's Inside

EZBar Fixture

IRC6 Hand Remote Control

Warranty card

Quick Reference Guide
