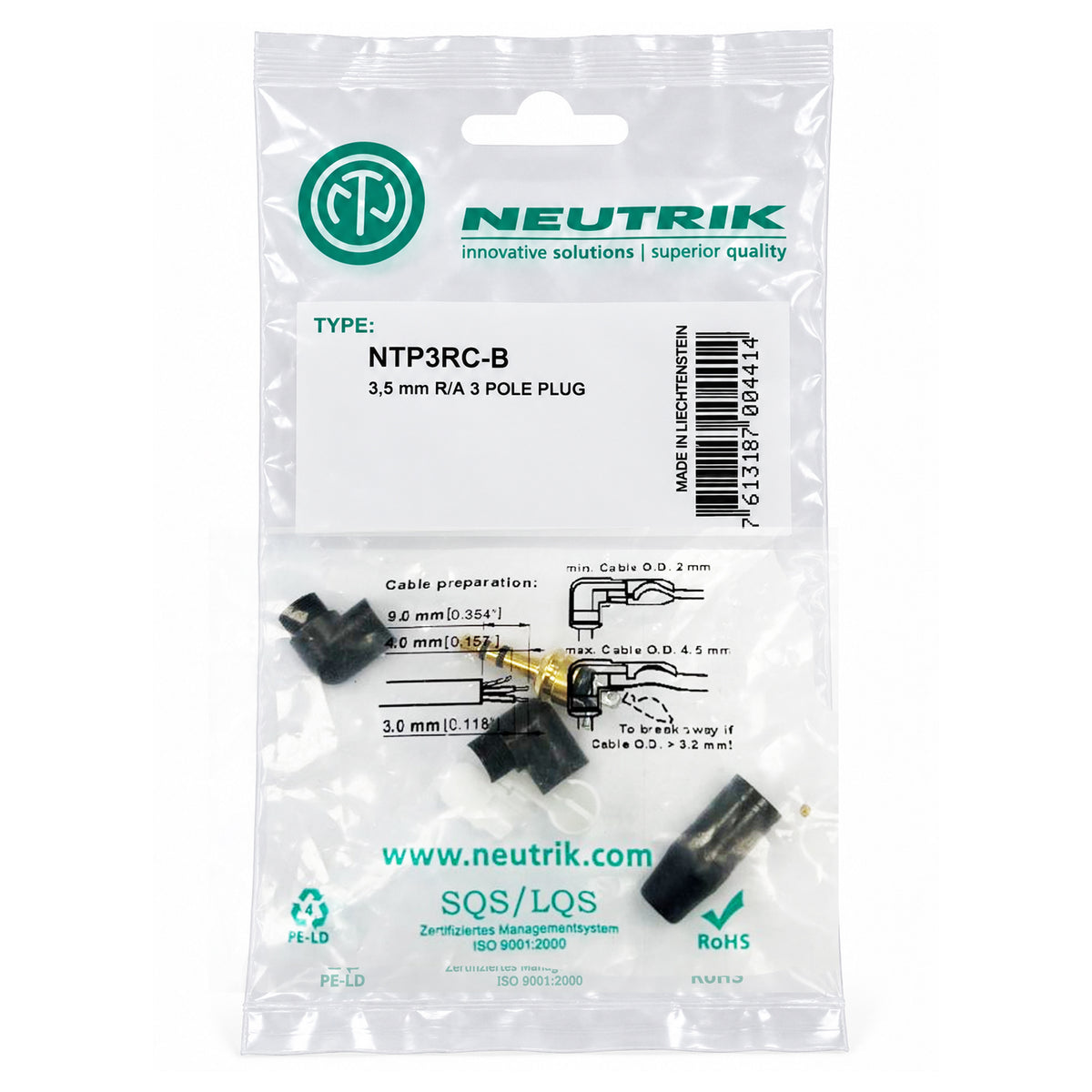

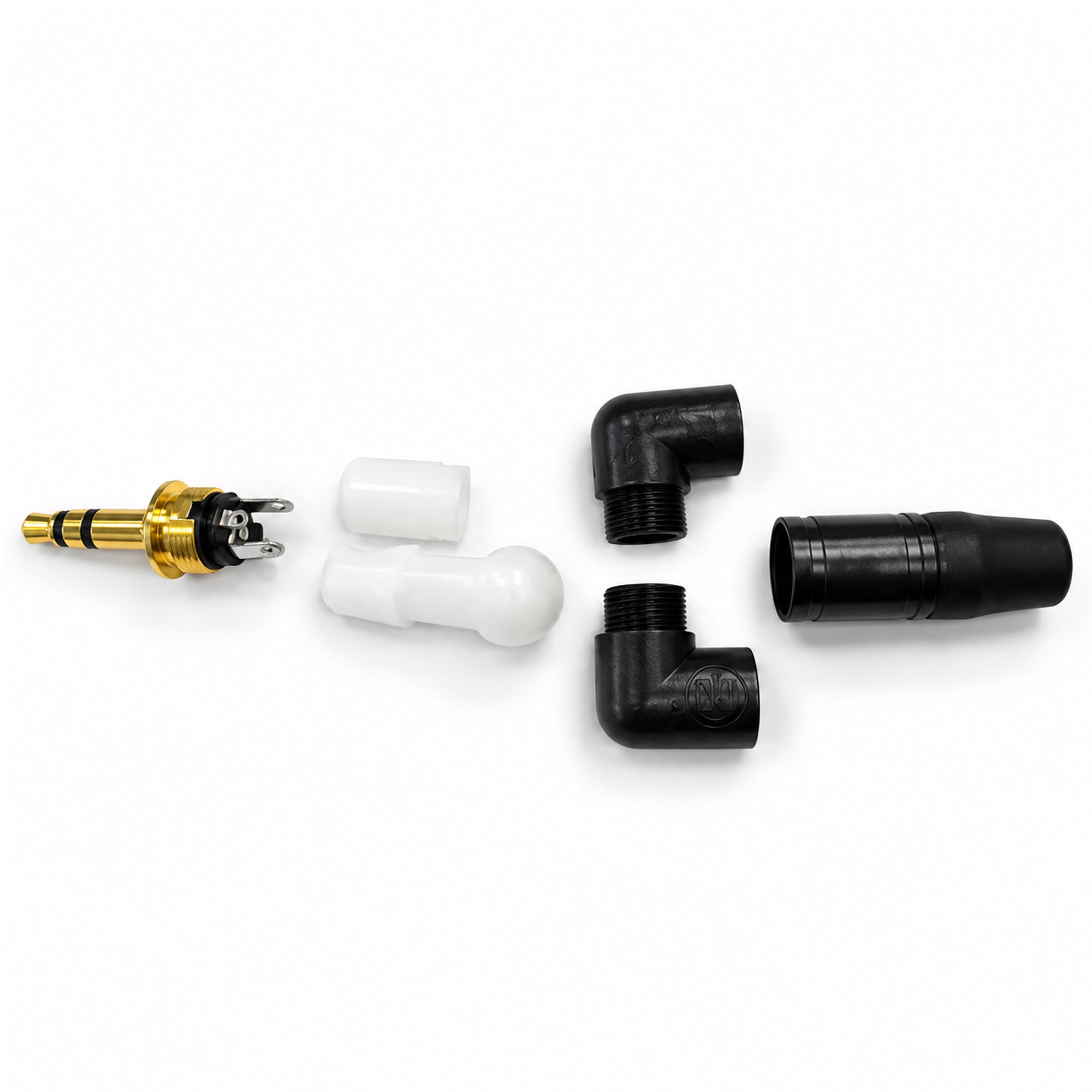

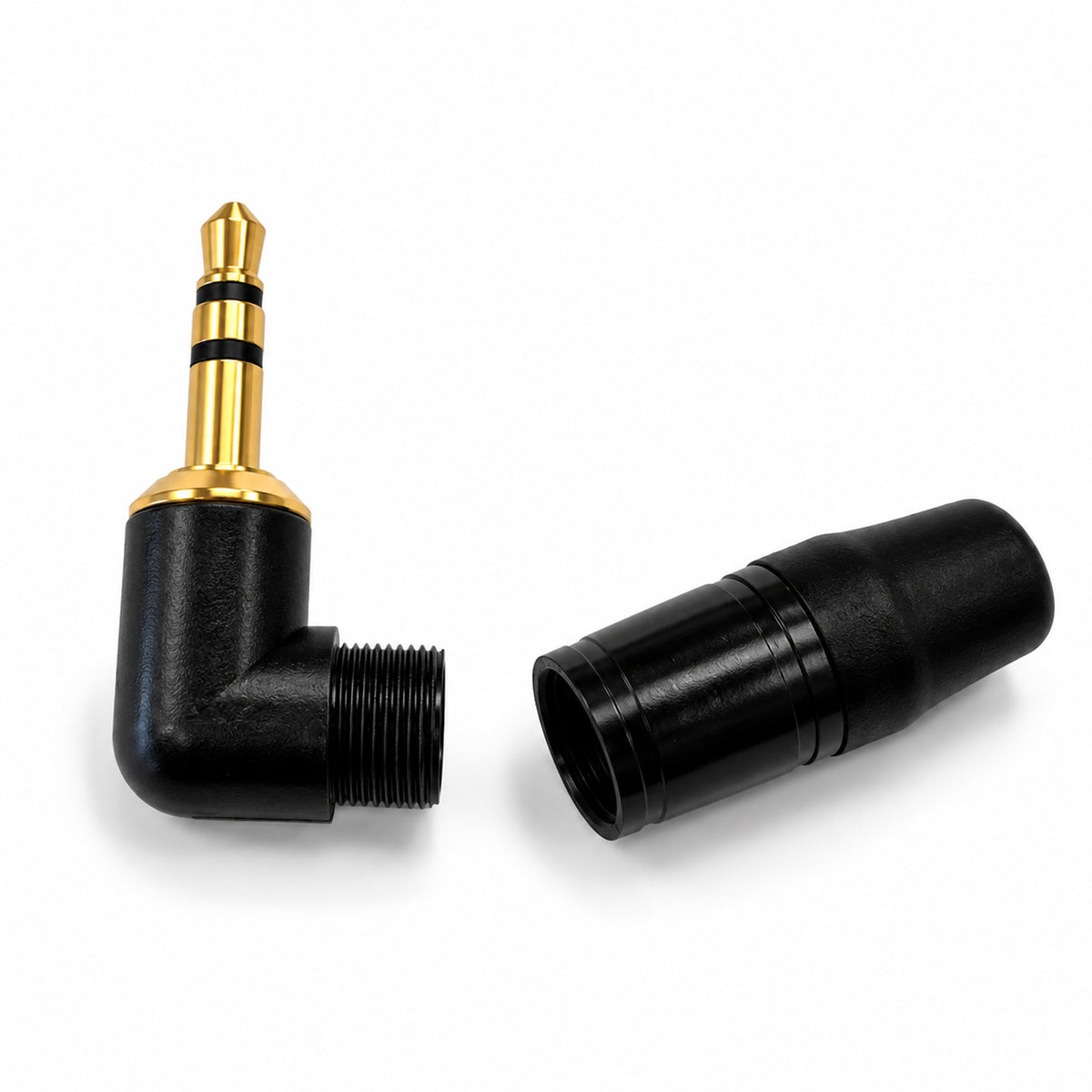

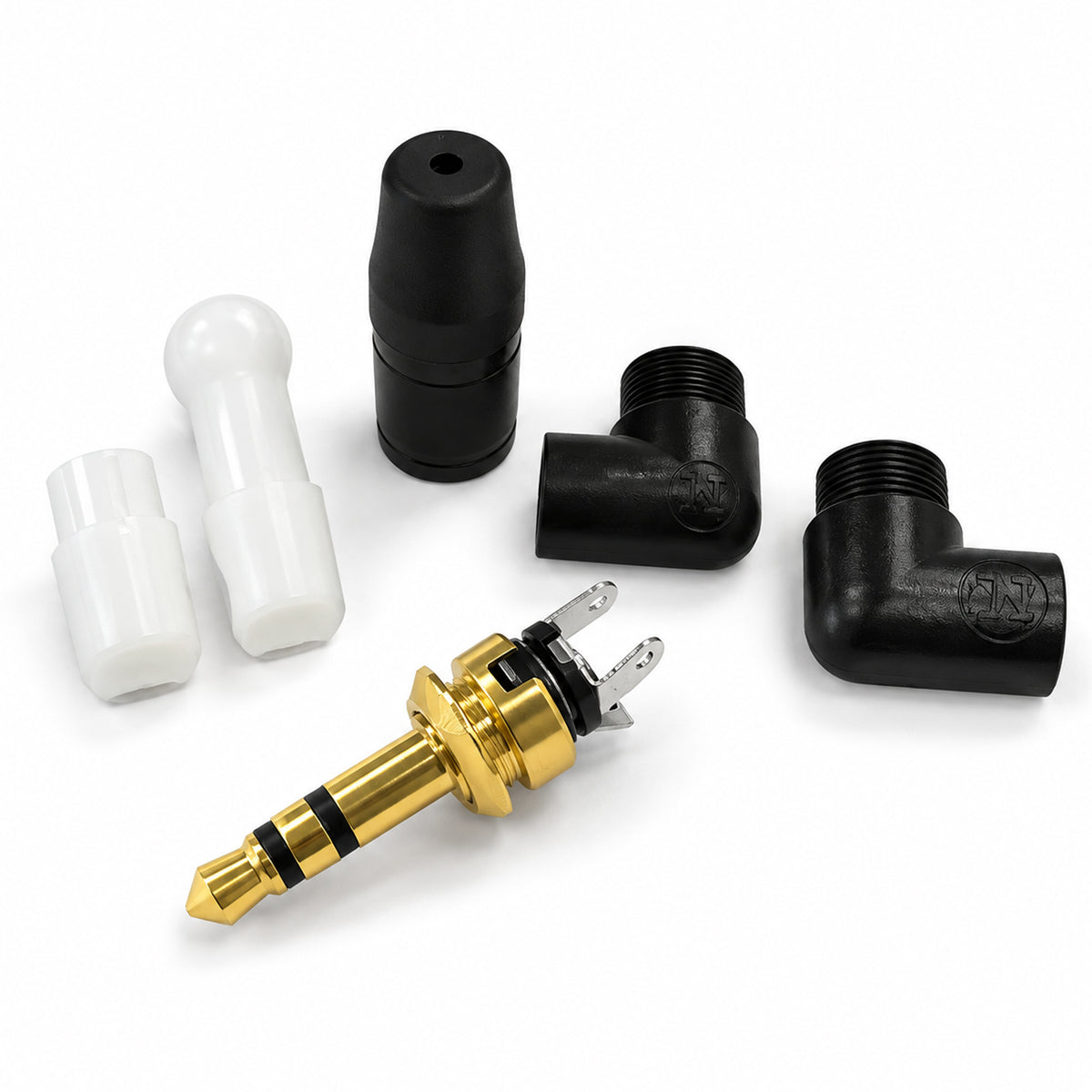

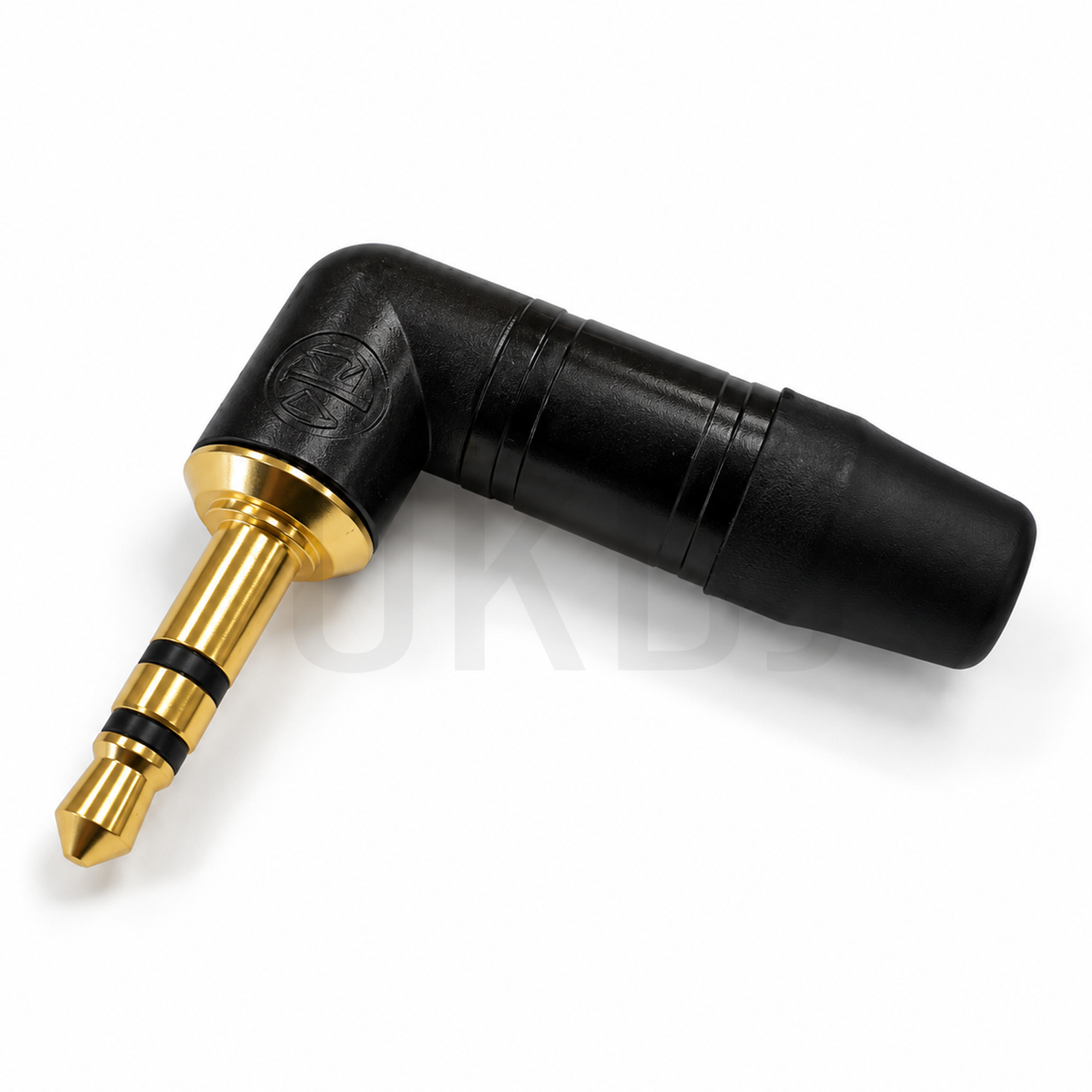

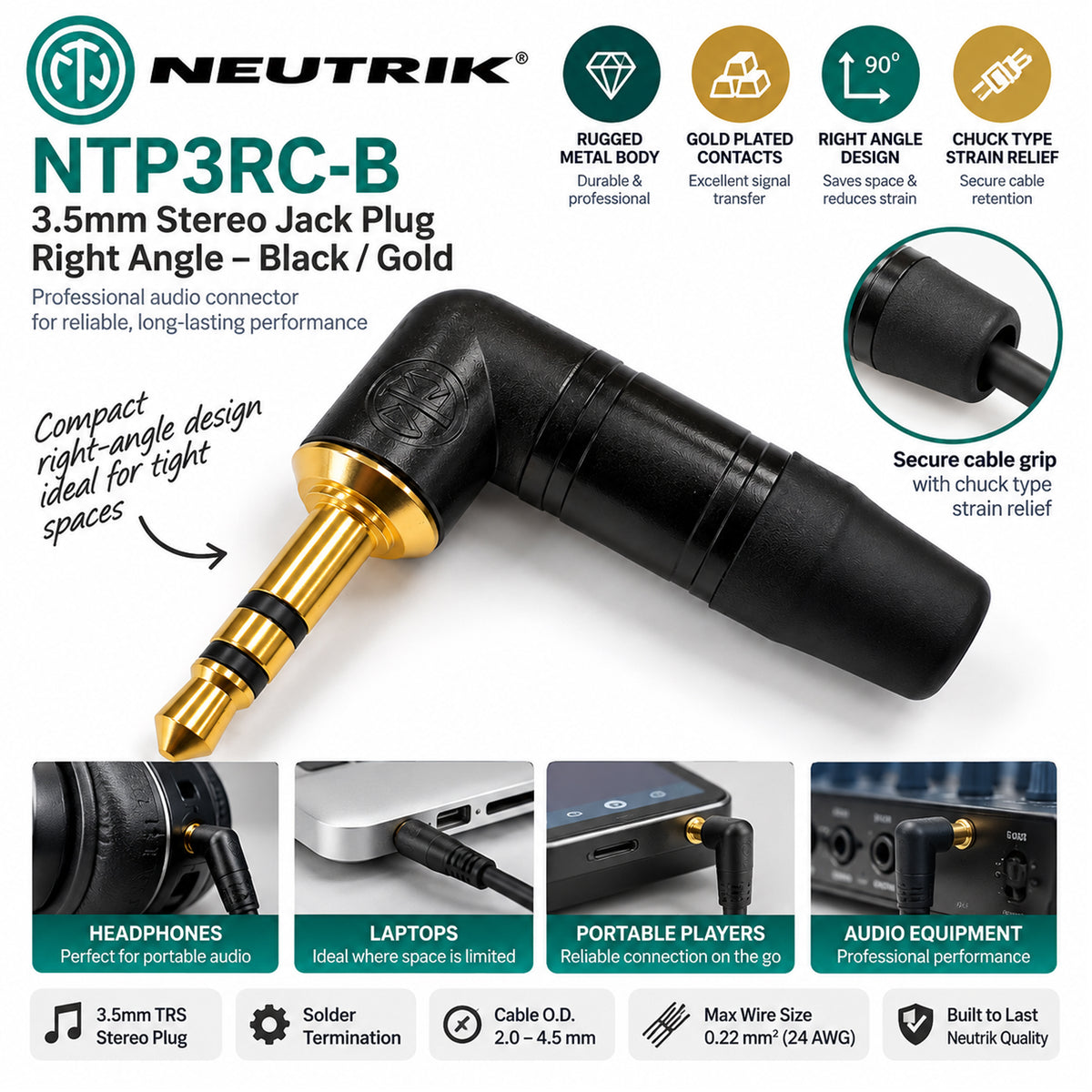

Neutrik NTP3RC-B 3.5mm Stereo Jack Plug

Right-Angled 3-Pole TRS Plug with Gold-Plated Contacts & Black Metal Housing
Product Overview

The Neutrik NTP3RC-B is a professional-quality 3.5mm stereo TRS male jack plug designed for custom audio cable manufacture and replacement or repair work. Its compact 90° construction is ideal where rear clearance is limited, while the robust zinc die-cast metal housing, gold-plated contacts and Neutrik chuck-type strain relief provide a secure and durable connection for demanding audio applications.

Key Benefits
  • Genuine Neutrik connector – professional construction from a recognised audio connector manufacturer
  • 3.5mm stereo TRS connection – three-pole male plug for standard stereo audio applications
  • 90° right-angle design – ideal where space behind equipment is restricted
  • All-metal housing – durable zinc die-cast construction for improved mechanical strength
  • Gold-plated contacts – designed to provide a dependable electrical connection
  • Chuck-type strain relief – securely grips the cable to reduce strain at the termination point
  • Rubber cable gland – provides additional protection where the cable enters the connector
  • Compact construction – suitable for portable equipment and closely spaced connections
  • Solder termination – suitable for professional cable assembly, repairs and custom leads
Specifications
  • Manufacturer: Neutrik
  • Manufacturer Part Number: NTP3RC-B
  • Electrovision Code: NE168
  • Connector Type: 3.5mm audio plug
  • Gender: Male
  • Number of Poles / Contacts: 3
  • Configuration: TRS / Stereo
  • Plug Diameter: 3.5mm
  • Orientation: Right-angle / 90°
  • Termination: Solder
  • Maximum Wire Size: 0.22mm²
  • AWG: 24 AWG
  • Suitable Cable Outside Diameter: 2.0–4.5mm
  • Rated Voltage: <50V
  • Dielectric Strength: 1kV DC
  • Insulation Resistance: >2GΩ initially
  • Contact Material: Brass (CuZn39Pb3)
  • Contact Plating: 0.2µm gold (Au)
  • Shell Material: Zinc die-cast (ZnAl4Cu1)
  • Shell Finish: Black chromium
  • Insert Material: Polyamide PA 6.6, 15% glass reinforced
  • Strain Relief Material: Polyacetal (POM)
  • Bushing: Brass + PU, black chromium finish
  • Cable Retention: Chuck-type strain relief
  • Solderability: Complies with IEC 68-2-20
  • Operating Temperature: -20°C to +65°C
Perfect For
  • Headphone and earphone cable repairs
  • Custom 3.5mm stereo audio leads
  • Laptop and computer audio connections
  • Portable audio equipment
  • Mixers and audio interfaces
  • DJ and recording equipment
  • Hi-Fi and AV equipment
  • Installations where rear clearance is restricted
  • Replacing damaged or moulded 3.5mm stereo plugs
