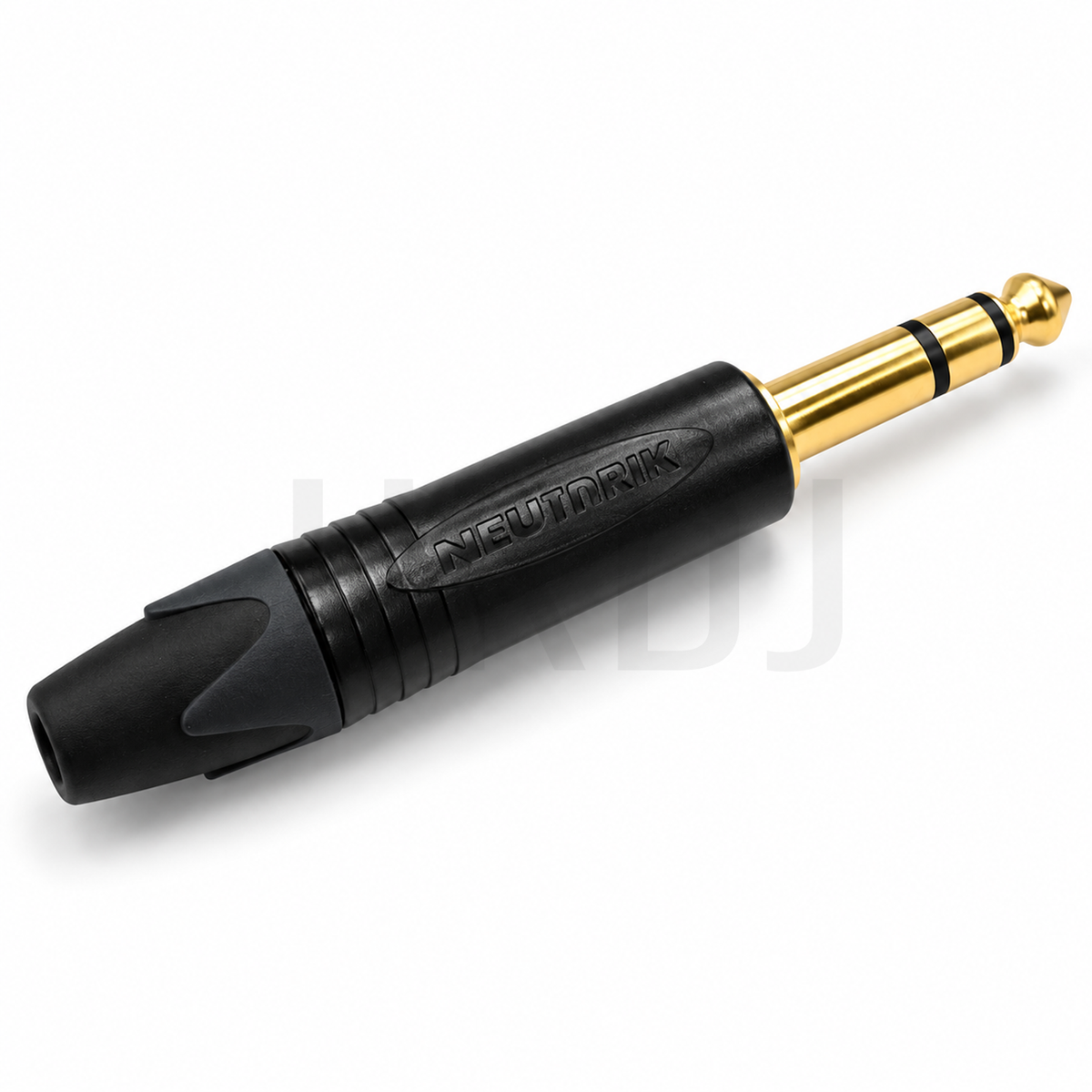

Neutrik NP3X-B Professional 6.35mm Stereo Jack Plug
Product Overview
The Neutrik NP3X-B is a professional 6.35mm 3-pole TRS jack plug designed for manufacturing, repairing and upgrading high-quality audio cables. Part of Neutrik's renowned X Series, it combines a robust black zinc die-cast housing, precision-machined contacts, gold contact plating and secure chuck-type strain relief for dependable use in professional audio installations, studios and live sound systems.
Key Benefits
- Genuine Neutrik NP3X-B professional X Series connector
- 3-pole TRS design for stereo or balanced mono audio connections
- 0.2 µm gold-plated contacts for reliable electrical connection
- Slim 14.5mm body ideal where jack sockets are closely spaced
- One-piece precision-machined tip contact with no rivets
- Rivet-free construction helps reduce the risk of the tip catching or separating inside a socket
- Chuck-type cable strain relief securely grips the cable and protects soldered connections
- Heavy-duty black zinc die-cast shell for professional use
- Suitable for cables with an outside diameter of 4-7mm
- Rated for more than 1,000 mating cycles
Specifications
- Brand: Neutrik
- Manufacturer Part Number: NP3X-B
- Electrovision Product Code: NE138
- Connector Type: 6.35mm / 1/4" jack plug
- Configuration: 3-pole TRS (Tip-Ring-Sleeve)
- Gender: Male
- Application: Stereo or balanced mono audio
- Body Colour: Black
- Body Width: 14.5mm
- Contact Plating: 0.2 µm gold (Au)
- Contact Material: Brass (CuZn39Pb3)
- Shell Material: Zinc die-cast (ZnAl4Cu1)
- Shell Finish: KTL coating
- Insert Material: Polyamide PA 6.6, 30% glass reinforced
- Strain Relief Material: Polyacetal (POM)
- Bushing Material: POM + PU
- Termination: Solder contacts
- Cable Outside Diameter: 4-7mm
- Maximum Wire Size: 1mm² / 18 AWG
- Rated Voltage: <50V
- Dielectric Strength: 1kV DC
- Insulation Resistance: >2GΩ initially
- Mating Life: >1,000 cycles
- Operating Temperature: -20°C to +65°C
- Standard Compliance: IEC 60603-11 / EIA RS-453
- Solderability: IEC 68-2-20 compliant
Perfect For
- Balanced TRS audio leads
- Stereo 6.35mm jack leads
- Mixing desks and consoles
- Audio interfaces
- Patch bays and jackfields
- Amplifiers
- Keyboards and electronic instruments
- Headphone and extension cables
- Stage and studio wiring
- Professional cable manufacture and repair
