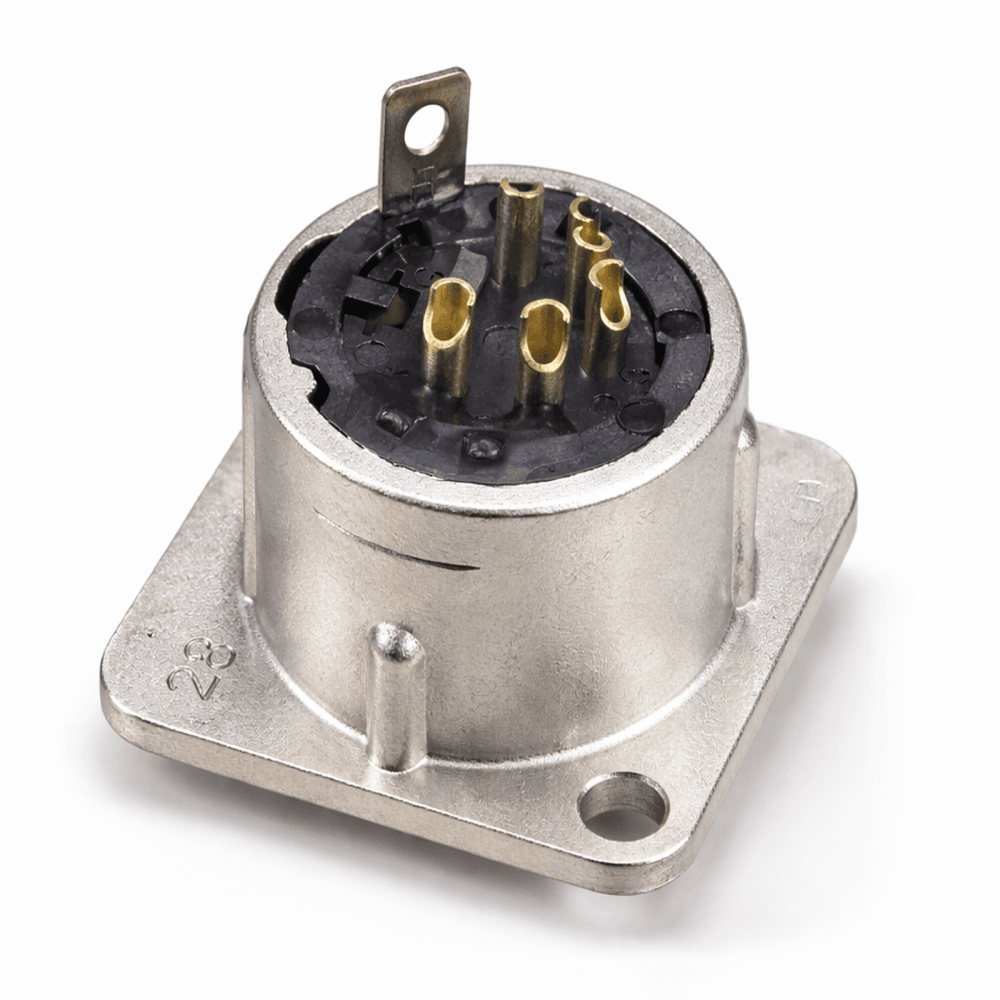

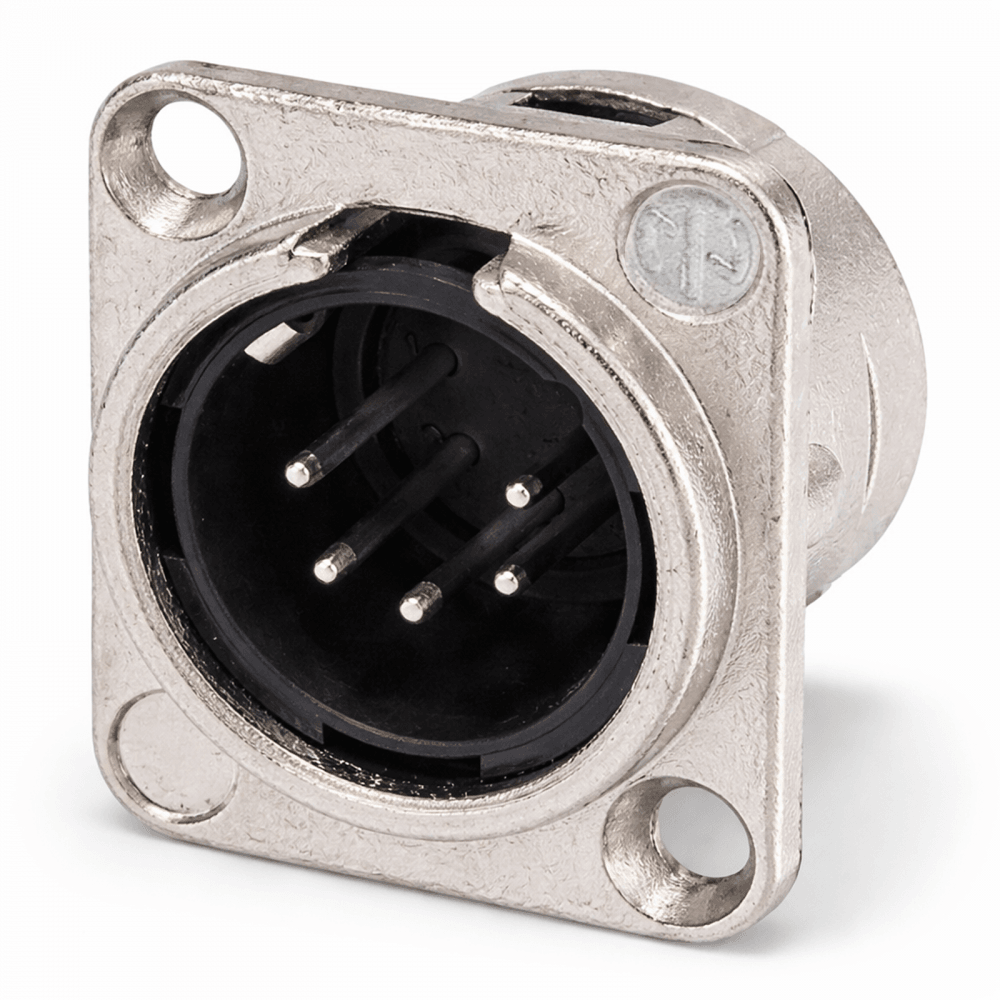

NC5MD-L-1 Male 5 Pin XLR Chassis Connector
NC5MD-L-1 Male 5 Pin XLR Chassis Connector
-
Free DeliveryOn Orders Over £80
-
Hassle-Free Returns14 Day Cooling Off Period
-
100% Secure ShoppingShop In Confidence
- Professional 5-Pin XLR Male Connector — Ideal for DMX512 lighting, control signals, and low-voltage interconnections.
- Chassis Mount Design — Panel-mount format with universal D-size metal body.
- Durable Metal Construction — Nickel-plated die-cast zinc housing for strength and shielding.
- Silver-Plated Contacts — Brass contacts plated with silver for enhanced conductivity.
- Solder Cup Termination — Secure and reliable solder points for wiring up to AWG 18 / 1 mm².
- Latch Locking Device — Positive latch connection to prevent accidental unplugging.
- IEC Standard XLR Interface — Fits the standardized 24 mm panel cutout (D-size).
- Long Lifecycle & Rugged Performance — Rated for >1,000 mating cycles.
The Neutrik NC5MD-L-1 is a professional-grade 5-pole male XLR chassis-mount connector part of Neutrik’s DL series. Designed for reliable performance in audio, lighting, control and low-voltage power applications, it features a rugged metal body with nickel plating, precision silver-plated contacts, and solder-cup terminations for secure wiring. Built to international IEC XLR standards and UL-recognized, this connector installs easily into standard D-size cutouts and offers long service life and robust mechanical performance in demanding environments
Electrical
Connector Type: XLR (circular, 5-pole)
Gender: Male
Contact Resistance: ≤ 5 mΩ
Capacitance Between Contacts: ≤ 7 pF
Insulation Resistance: > 10 GΩ (initial)
Dielectric Strength: 1.5 kVdc
Rated Voltage: < 50 V
Rated Current per Contact: 7.5 A
Mechanical
Termination Style: Solder cups
Locking Device: Latch lock
Mounting Style: Chassis / panel mount
Insertion Force: ≤ 20 N
Withdrawal Force: ≤ 20 N
IP Rating: IP40
Mating Cycle Durability: > 1,000 cycles
Materials
Contact Material: Brass (CuZn39Pb3)
Contact Plating: 2 µm Ag (silver) over 2 µm Ni (nickel)
Shell Material: Zinc die-cast
Shell Plating: Nickel
Insert Material: Polyamide (PA66)
Locking Element: Steel
Environmental
Temperature Range: –30 °C to +80 °C
Flammability Rating: UL94 V-0
Standards Compliance: IEC 61076-2-103, UL recognized component
