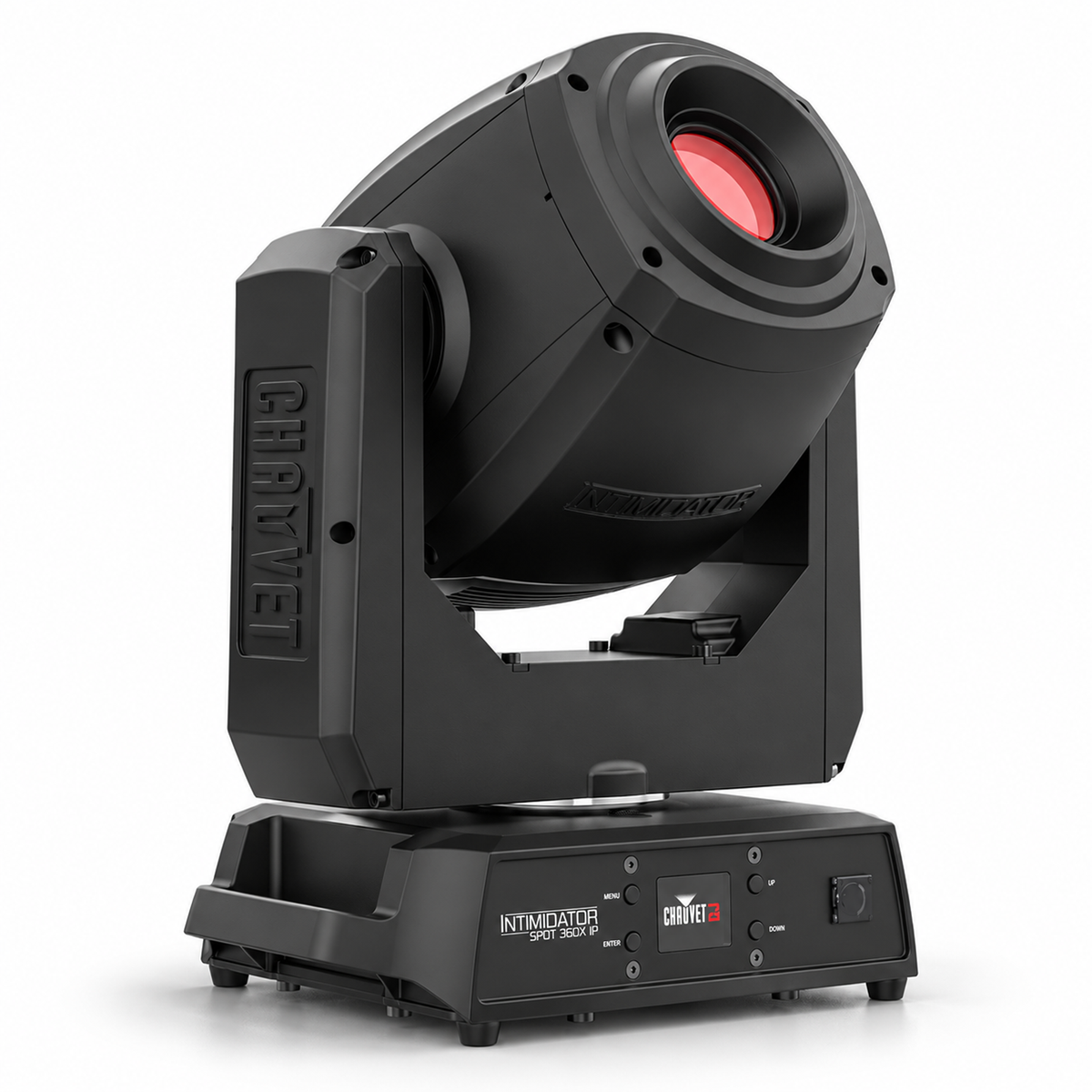

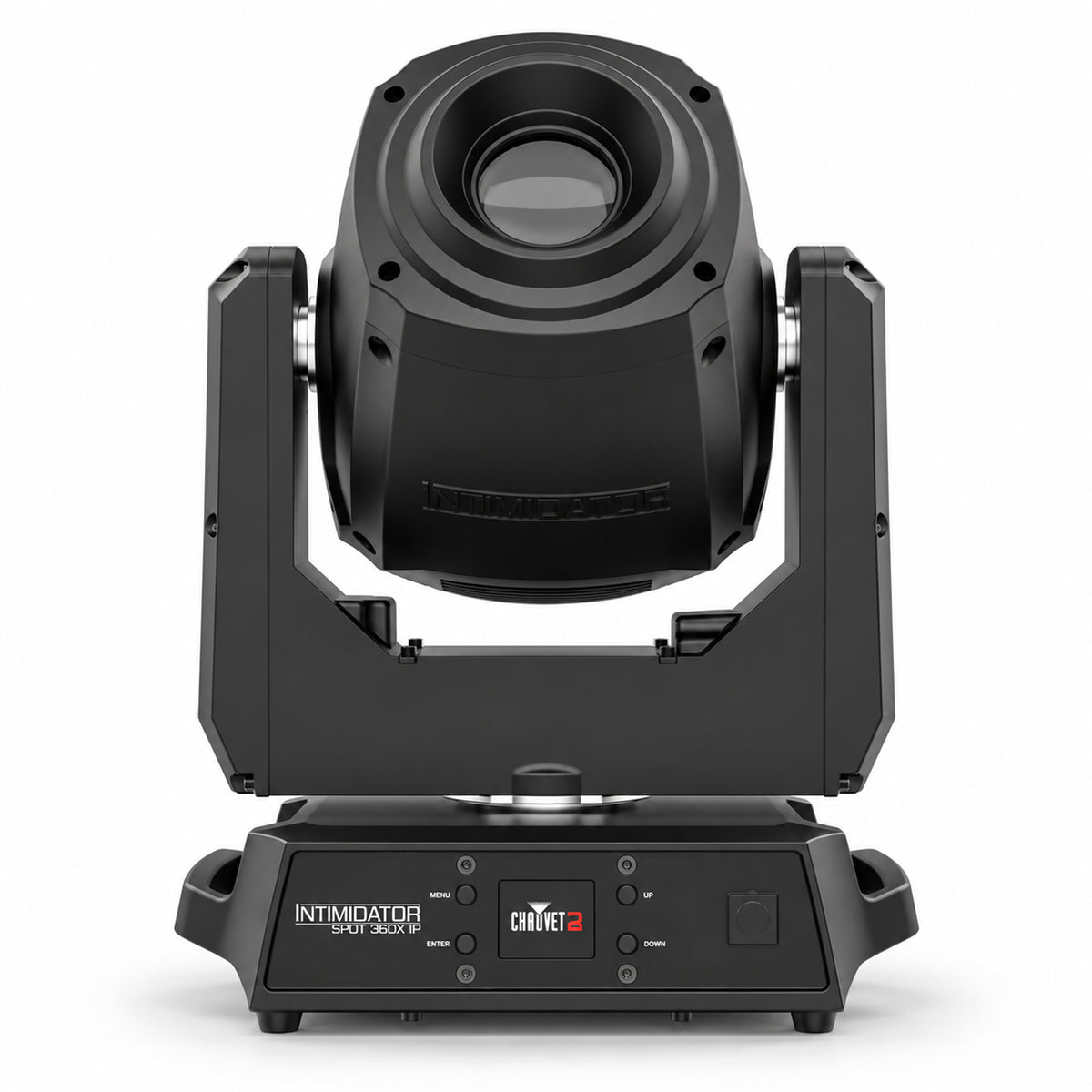

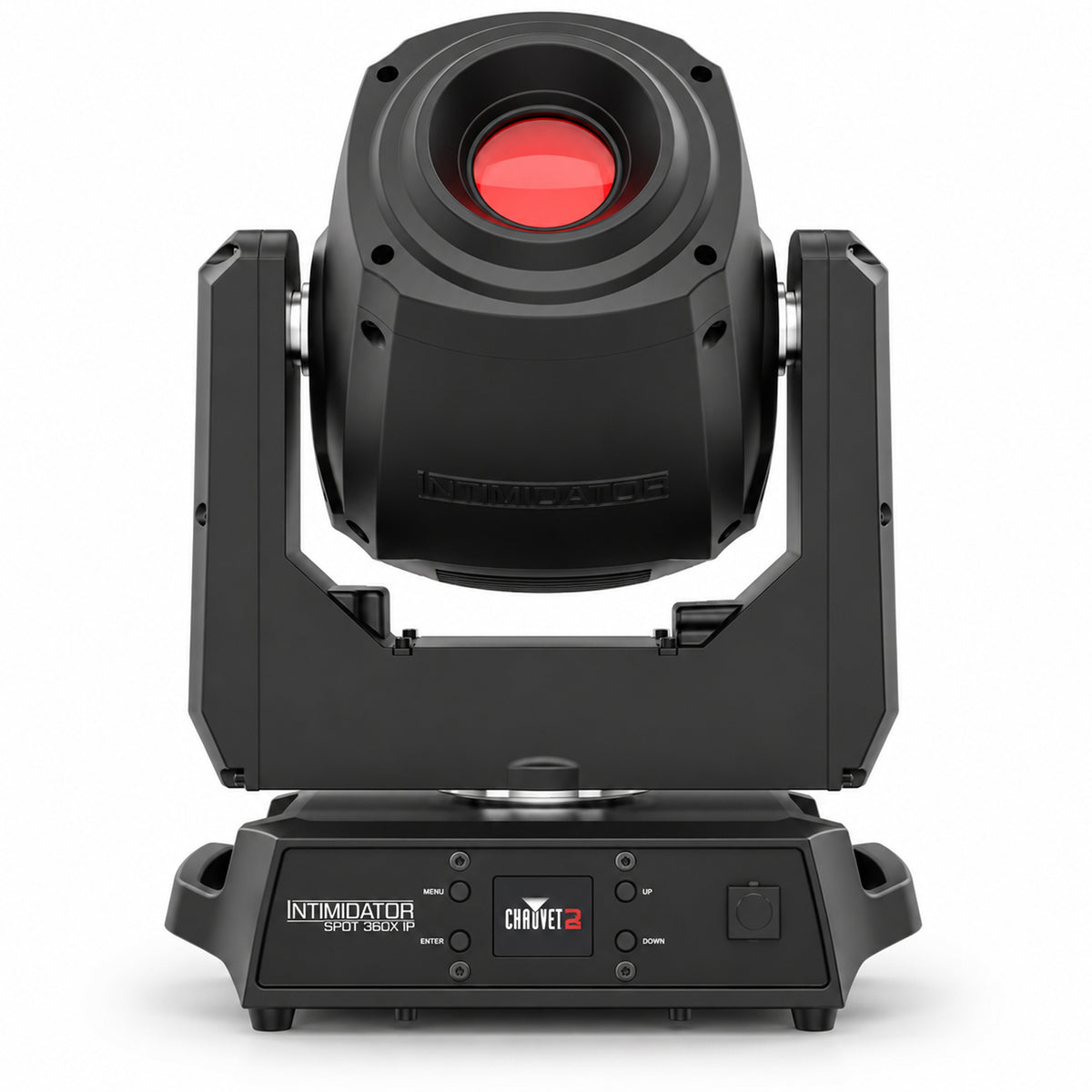

Chauvet DJ Intimidator Spot 360X IP Outdoor Moving Head

The Chauvet DJ Intimidator Spot 360X IP is a powerful IP65-rated LED moving head designed for professional indoor and outdoor events. Powered by a bright 100W cool white LED, it combines an impressive 4,268 lumen output with motorised focus, rotating gobos, dual rotating prisms and comprehensive DMX control.

Its rugged magnalium housing is lightweight, strong and corrosion resistant, while water-resistant power connections and an IP65 enclosure make the fixture suitable for temporary outdoor installations where changing weather conditions need to be considered.

The Intimidator Spot 360X IP features 540° pan and 270° tilt, with selectable movement ranges for more precise programming. Chauvet's innovative Totem mode keeps the beams directed towards the dance floor, while the improved home position provides smoother operation when triggering programs.

For creative effects, the fixture offers 8 colours plus white, split-colour effects, seven rotating gobos plus open, and two independently styled prism effects. A 5-facet linear prism and 3-facet round prism can be used to split and expand the beam, helping a single fixture cover a larger area.

Motorised focus provides sharp gobo projection at varying distances, while the full-colour LCD display allows convenient setup and the ability to manually set, save and recall one scene directly from the fixture.

A built-in RF receiver also provides compatibility with the optional Chauvet RFC and RFC-XL wireless remote controls.

Key Features

• IP65-rated moving head suitable for indoor and outdoor event use

• Powerful 100W cool white LED light source

• Impressive 4,268 lumen output

• 15° beam angle for defined spot and gobo effects

• Motorised focus for sharp gobo projection at varying distances

• 540° pan and 270° tilt

• Selectable pan and tilt ranges for controlled movement

• 8 colours plus white with split-colour capability

• Variable-speed continuous colour scrolling

• 7 rotating gobos plus open

• Includes 6 metal gobos and 1 glass gobo

• Gobos are interchangeable, indexable and feature Slot-N-Lock fitting

• 5-facet linear rotating prism

• 3-facet round rotating prism

• Bi-directional prism rotation with variable speed

• Built-in Totem mode helps keep beams directed towards the dance floor

• Improved home position for smoother programming and movement

• Built-in RF receiver for optional RFC and RFC-XL remotes

• Full-colour LCD display for easy setup

• Set, save and recall one scene directly from the fixture

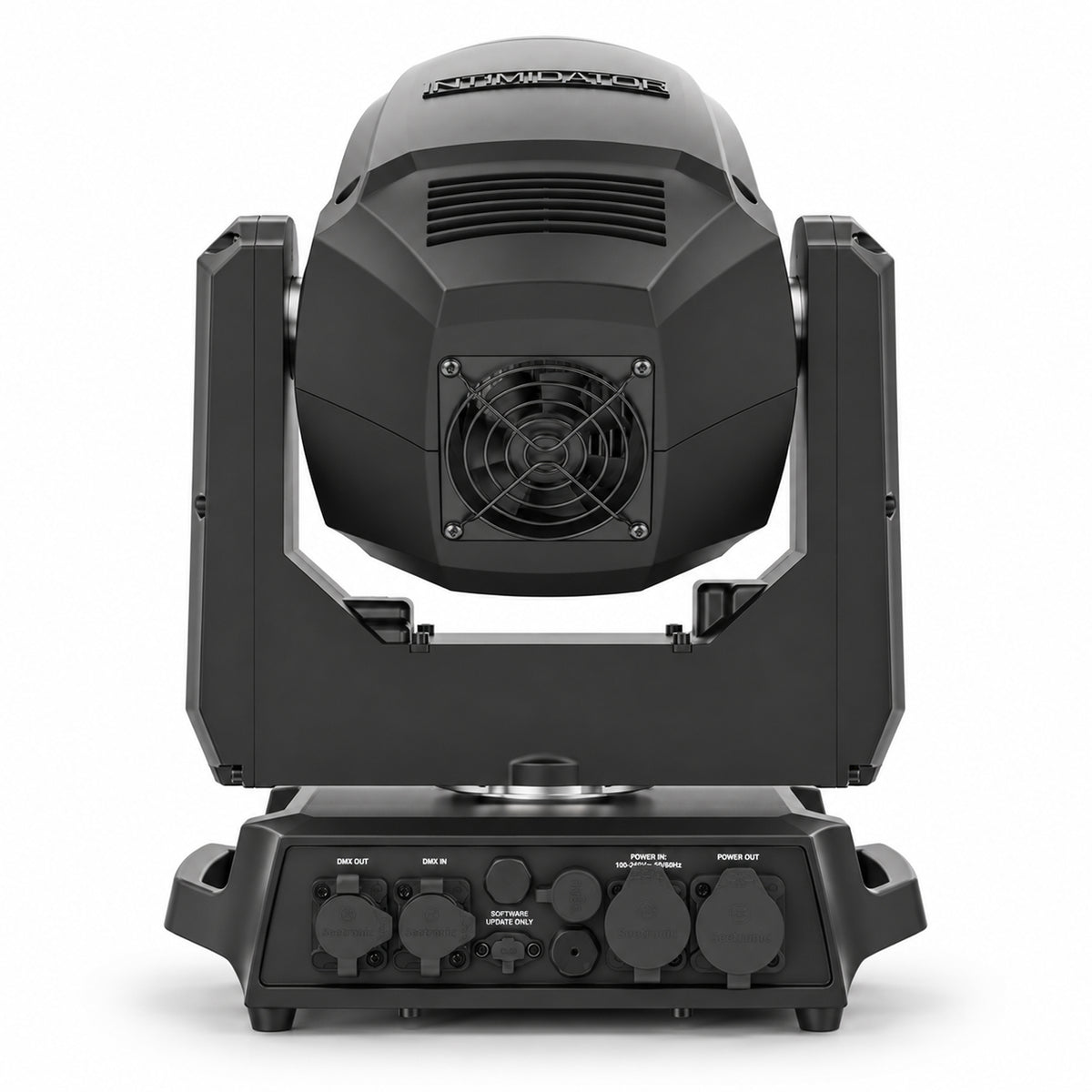

• Water-resistant power input and output connections

• Power linking capability reduces the number of separate mains connections required

• Durable magnalium housing is lightweight, strong and corrosion resistant

• ¼-turn hanging bracket supports single or dual clamp mounting

• 8 or 14-channel DMX operation

• Compatible with the Intimidator Road Case

Specifications

Light Source: 1 x 100W cool white LED
LED Life Expectancy: 50,000 hours
Colour Temperature: 15,000K
Lumens: 4,268
Beam Angle: 15°

Illuminance at 2m: 23,978 lux
Illuminance at 5m: 3,836 lux

Colours: 8 + white
Colour Effects: Split colours and continuous scrolling at variable speeds

Gobos: 7 + open
Gobo Type: 6 metal + 1 glass
Gobo Functions: Rotating, interchangeable, indexing and continuous variable-speed scrolling
Gobo System: Slot-N-Lock
Gobo Size: 24mm outside diameter / 20mm image diameter
Maximum Gobo Thickness: 0.5mm

Prism 1: 5-facet linear, bi-directional with variable speed
Prism 2: 3-facet round, bi-directional with variable speed

Motorised Focus: Yes
Strobe Rate: 0–20Hz

Pan: 540°
Tilt: 270°
Selectable Pan Ranges: 540° / 360° / 180°
Selectable Tilt Ranges: 270° / 180° / 90°

DMX Channels: 8 or 14
DMX Connections: 3-pin XLR

IP Rating: IP65

Input Voltage: 100–240VAC, 50/60Hz, auto-ranging
Power Consumption: 185W at 230V, 50Hz
Current: 1.4A at 230V, 50Hz
Power Linking: Up to 9 units at 230V

Startup Temperature: -20°C to +45°C
Operating Temperature: -30°C to +45°C

Cable Length: 1.5m
Bracket Mounting Hole: 13mm

Dimensions: 299 x 217 x 406mm
Weight: 10.4kg

Approvals: CE, MET, UKCA, RoHS

Optional Controllers: Chauvet RFC / RFC-XL

Ideal For

The Intimidator Spot 360X IP is particularly suited to:

• Mobile DJs

• Outdoor parties and events

• Wedding entertainment

• Marquees and temporary event structures

• Festivals

• Bars and entertainment venues

• Stage productions

• Corporate events

• Professional event production

• Indoor venues requiring a rugged, weather-resistant moving head

With its combination of IP65 weather protection, powerful output, motorised focus, rotating gobos and dual prism effects, the Intimidator Spot 360X IP provides a versatile solution for creating professional moving-head effects both indoors and outdoors.
