DJ GigBAR Bridge Beam ILS 3-in-1 Moving Head Lighting System
Chauvet

DJ GigBAR Bridge Beam ILS 3-in-1 Moving Head Lighting System

Code: GIGBARBRIDGEBEAMILS
Now £659.00
Was £870.00 | Save: £211.00
(FREE Delivery)
Item in Stock| Usually dispatched within 24 hours
  • Free Delivery
    On Orders Over £100
  • Hassle-Free Returns
    14 Day Cooling Off Period
  • 100% Secure Shopping
    Shop In Confidence

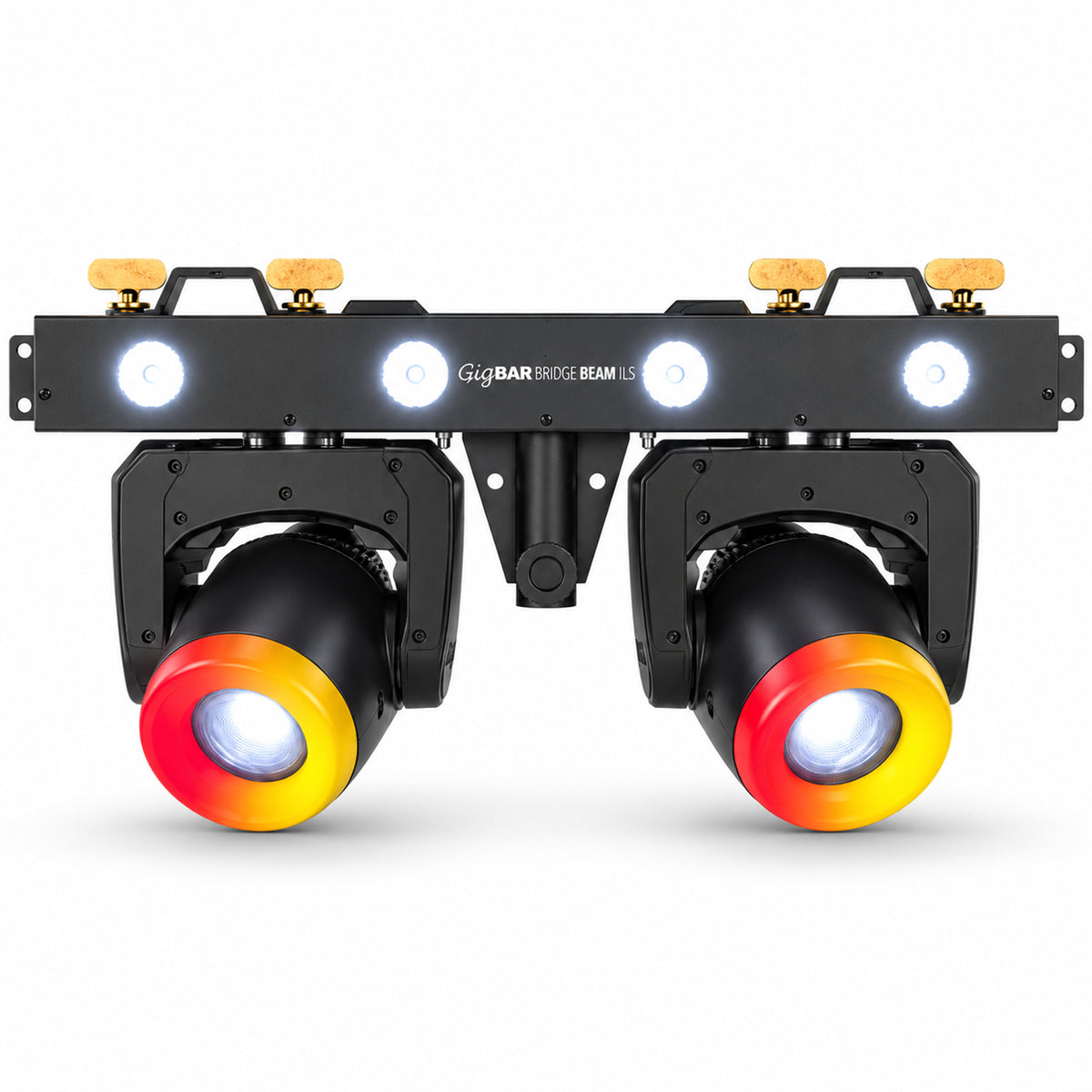

The Chauvet DJ GigBAR Bridge Beam ILS is a complete 3-in-1 lighting system combining two moving-head beam effects, RGBAW+UV wash lighting and RGBW LED rings on one pre-mounted bar. Designed for quick setup and easy transport, it supports Chauvet's ILS ecosystem plus wireless ILS or DMX operation through built-in D-Fi. An included RF remote gives convenient access to built-in shows, making it particularly well suited to DJs, entertainers and event applications.

Key Features & Benefits

  • 3-in-1 lighting system – combines moving heads, colour washes and RGBW LED rings on one integrated bar.
  • Twin moving-head beams – two RGBW moving heads produce narrow 5° beams for strong, defined aerial effects.
  • RGBAW+UV wash LEDs – adds broad colour coverage including ultraviolet/blacklight effects.
  • Built-in ILS compatibility – integrates with Chauvet DJ's ILS ecosystem for coordinated lighting shows.
  • Wireless D-Fi built in – transmits and receives DMX or ILS signals without requiring additional signal cables.
  • RF remote included – trigger built-in programmes without needing direct line of sight.
  • Totem Mode – helps keep moving-head effects directed towards the dance floor rather than unwanted areas.
  • Flexible mounting – removable bracket allows installation on suitable truss or mobile tripod systems.
  • Power linking – reduces the number of individual mains connections required when operating multiple units.
  • Full-colour LCD display – provides straightforward access to settings and operating functions.

Description

The Chauvet DJ GigBAR Bridge Beam ILS provides three complementary lighting effects in a single pre-mounted system. Two independently moving RGBW heads create tight, punchy beams with 540° pan and 270° tilt capability, while four RGBAW+UV LEDs provide wider wash coverage. RGBW LED rings surrounding the moving-head effects add an additional visual layer for colourful, animated displays.

The system is designed to simplify both setup and control. It is compatible with Chauvet DJ's Integrated Lighting System (ILS), allowing it to form part of a synchronised ILS lighting rig. A built-in D-Fi transceiver can carry DMX or ILS signals wirelessly, while conventional 3-pin DMX is also provided for wired installations.

For standalone operation, built-in programmes can be activated with the supplied RF remote, and Chauvet's Totem Mode can restrict the moving-head movement to more suitable areas of the dance floor. A full-colour LCD screen provides direct access to operating functions.

GigBAR Bridge Beam ILS can be mounted using its removable bracket and is suitable for mobile tripod or truss installations. Power linking is also supported, helping simplify larger lighting setups. A carrying case is supplied for storage and transport.

Specifications

Specification Manufacturer Specification
DMX Channels 3, 24 or 60
DMX Connectors 3-pin XLR
Pan / Tilt 540° / 270°
Pan Ranges 180°, 360°, 540°
Tilt Ranges 90°, 180°, 270°
Strobe Rate 0–20Hz
Operating Frequency 2.4GHz
Input Voltage 100–240VAC, 50/60Hz auto-ranging
Power Consumption – 230V 144W, 0.6A @ 230V, 50Hz
Power Consumption – 120V 147W, 1.2A @ 120V, 60Hz
Power Linking 18 units @ 230V / 9 units @ 120V
Moving Head Light Source 2 × RGBW LEDs, 80W total
Moving Head LED Life Expectancy 50,000 hours
Wash Light Source 4 × RGBAW+UV LEDs, 40W total
Wash LED Life Expectancy 50,000 hours
LED Ring Light Source 48 × RGBW LEDs, 10W total
LED Ring Life Expectancy 50,000 hours
Moving Head Beam Angle 5°
Wash Beam Angle 20°
Wash Field Angle 37°
Moving Head Illuminance 24,670 lux @ 2m per head
Wash Illuminance 525 lux @ 2m per section
Maximum Unobstructed D-Fi Distance 183m / 600ft
Compatible Tripod Size 37.4mm / 1.5in
Optional Controllers RF, Footswitch, ILS Command
Dimensions 635 × 65 × 290mm
Weight 7.5kg
Approvals CE, RoHS, FCC

All specifications above are taken from Chauvet DJ's current manufacturer information.

Perfect For

  • Mobile DJs
  • Wedding and party entertainment
  • Bands and live performers
  • Bars and clubs
  • Event lighting
  • Small stages
  • ILS-based Chauvet DJ lighting systems
  • Mobile or temporary truss/stand installations

These applications align with Chauvet DJ's stated event, mobile DJ and entertainment-lighting applications.

What's inside

  • GigBAR Bridge Beam ILS
  • Power cable
  • PowerCON to bare-end cable – EU only
  • Carrying case
  • 2 × hanging brackets
  • RF remote
  • Quick Reference Guide
