- 4-way DMX recorder and switch pack for automated lighting control
- Features 4x 5-Pin DMX outputs with opto-isolated signal protection
- Includes 4x Seetronic Power Twist TR1 switchable power outputs
- Programmable daily and weekly timers for scheduled playback
- Trigger scenes, chases and shows via DMX or timer functions
- Built-in 32GB internal memory for show storage and playback
- Individual current monitoring and limiter per output channel
- Supports Auto, Manual, Timer and DMX operating modes
- Rugged 1U 19-inch rackmount aluminium chassis for professional installs
- Ideal for shops, museums, theme parks, theatres and event automation

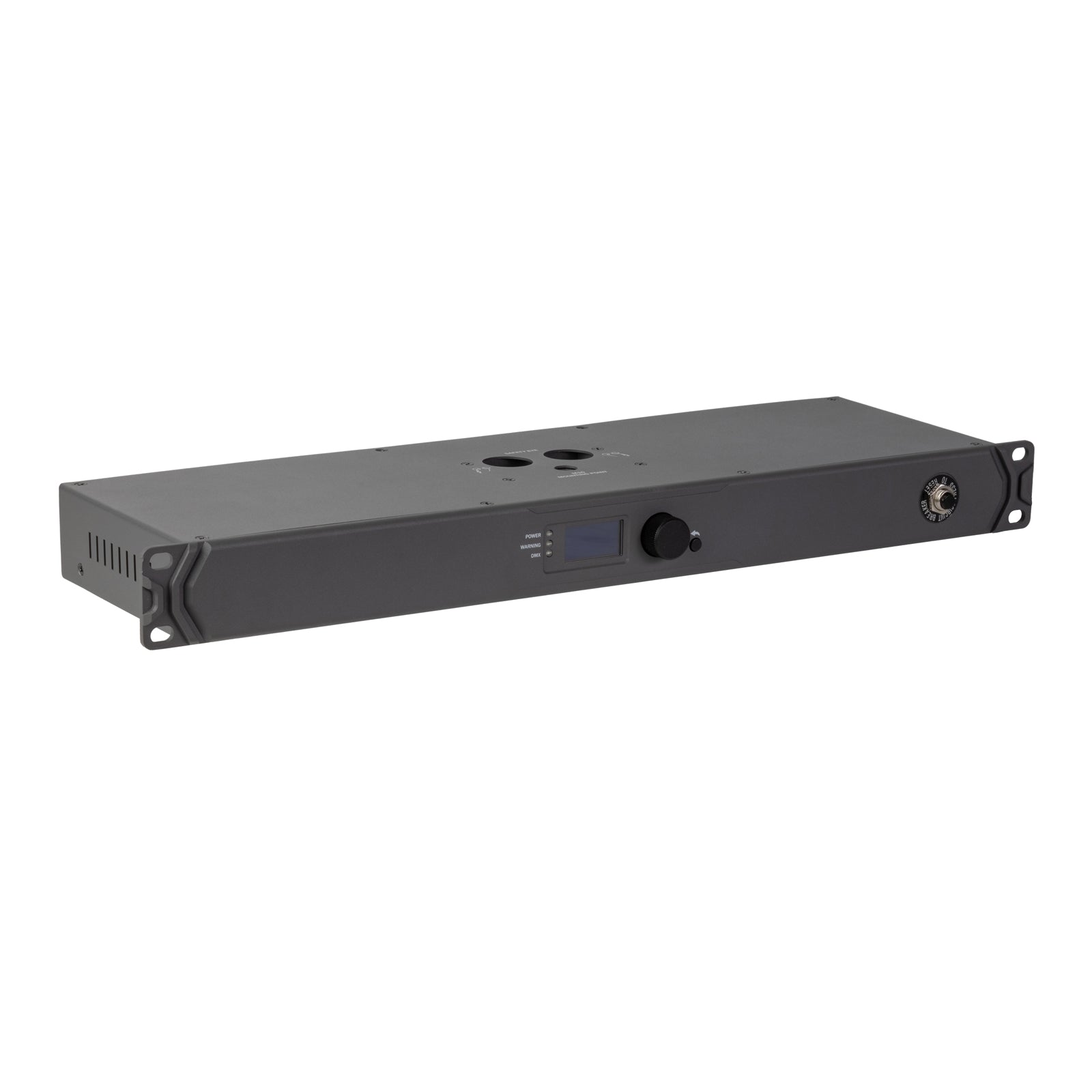

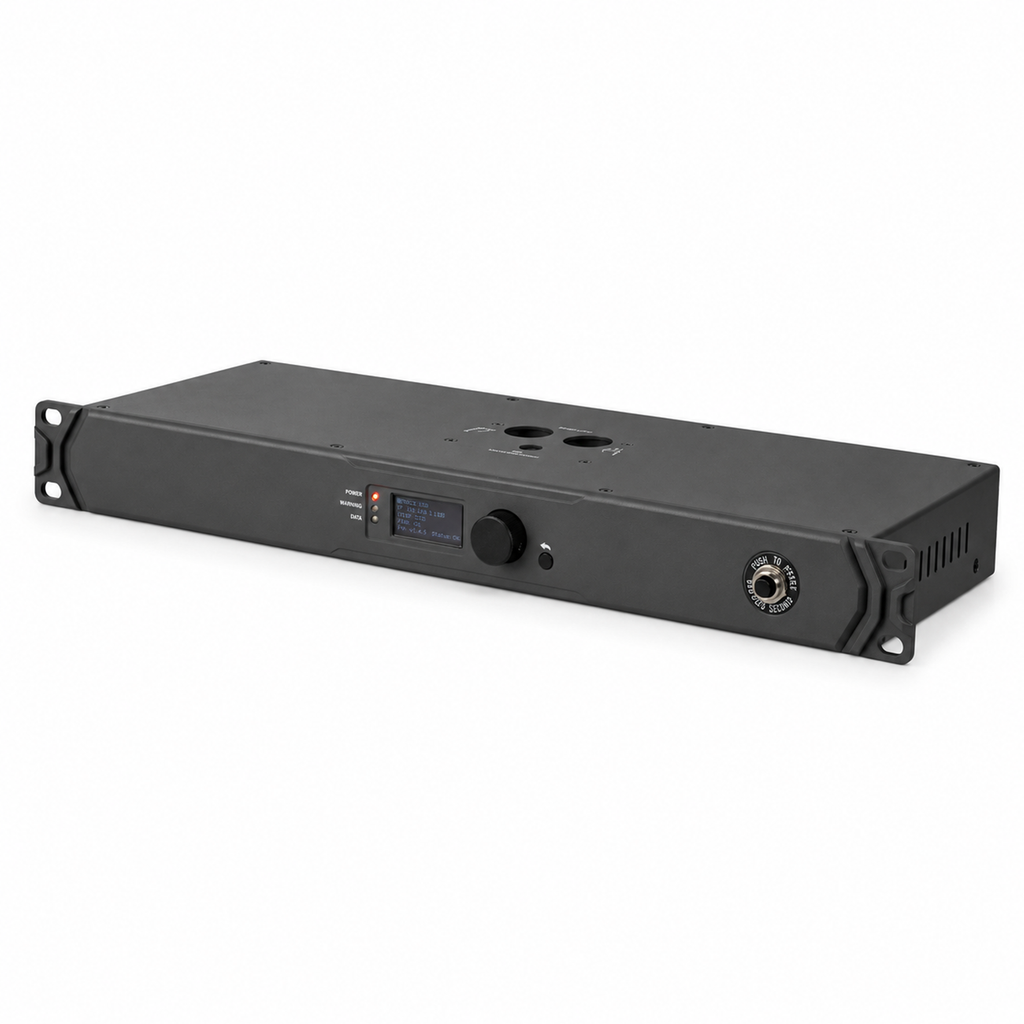

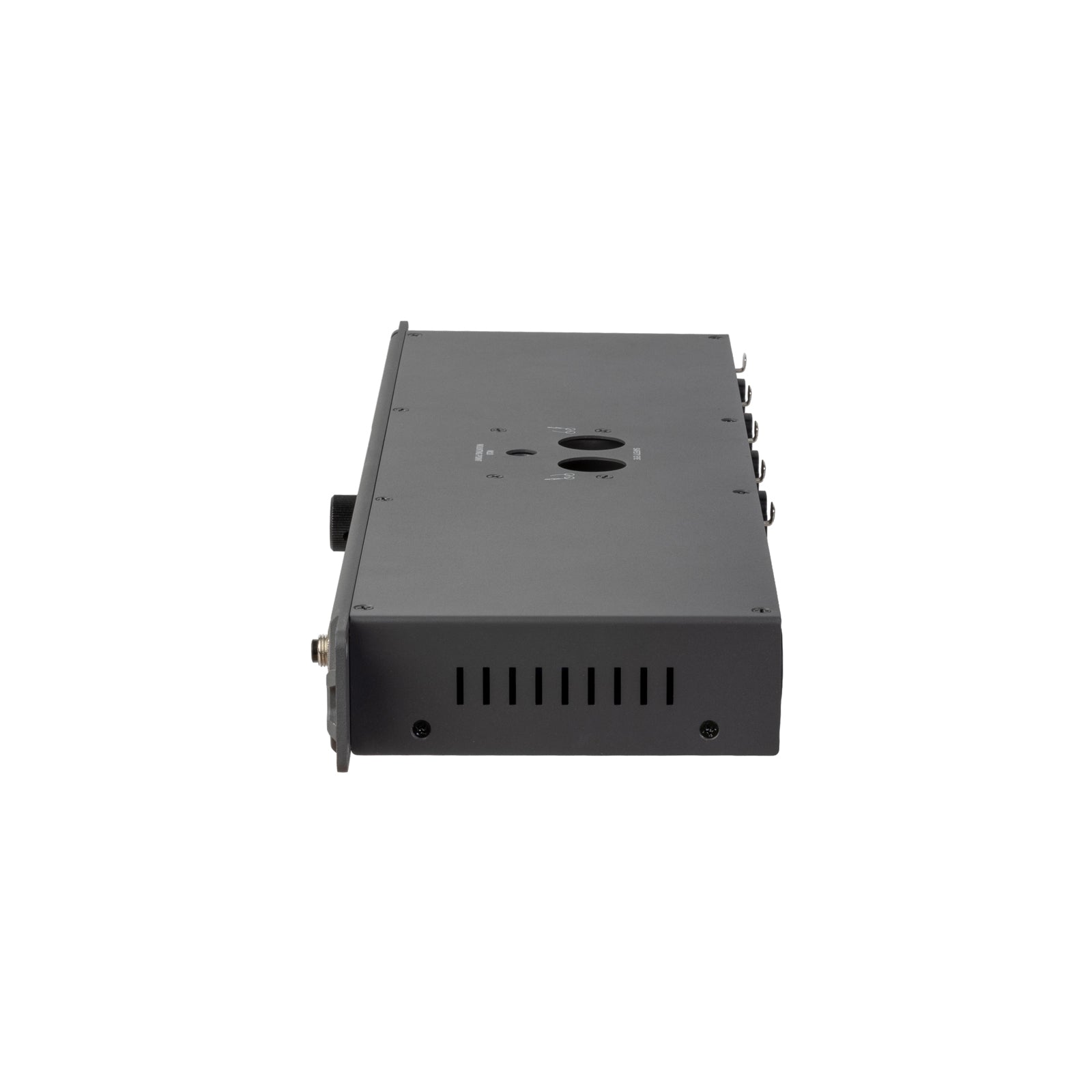

The Elumen8 Cygnus RSP4 DMX Recorder / Switch Pack is a professional lighting automation solution designed for recording, triggering and controlling DMX lighting shows. Ideal for permanent installations, retail displays, museums, theme parks and live events, it enables automated playback of scenes, chases and programmed lighting sequences using timers or DMX triggers. With integrated switchable power outputs, onboard memory and robust rackmount construction, the RSP4 simplifies lighting control and scheduled show operation in professional environments.
Technical Specifications

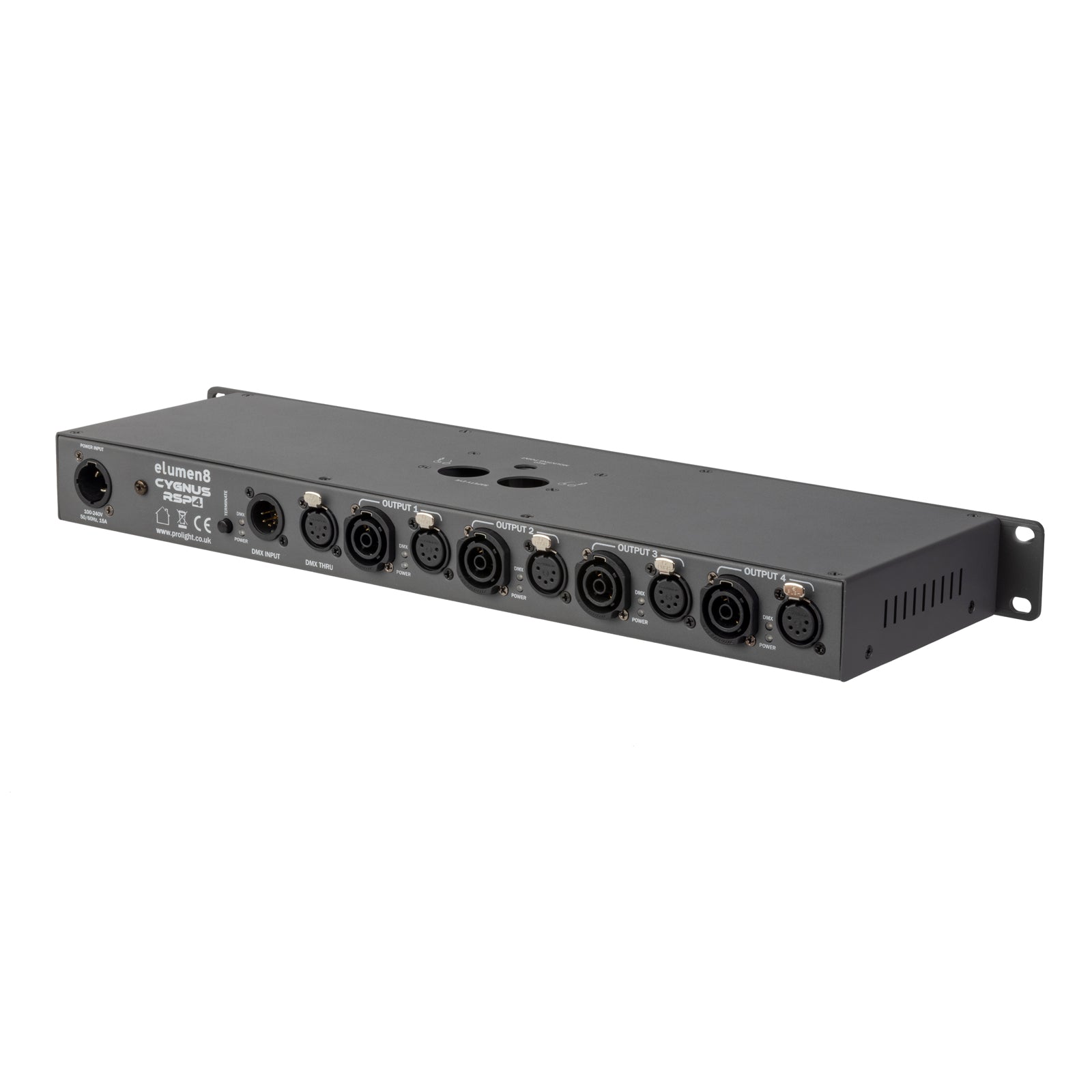

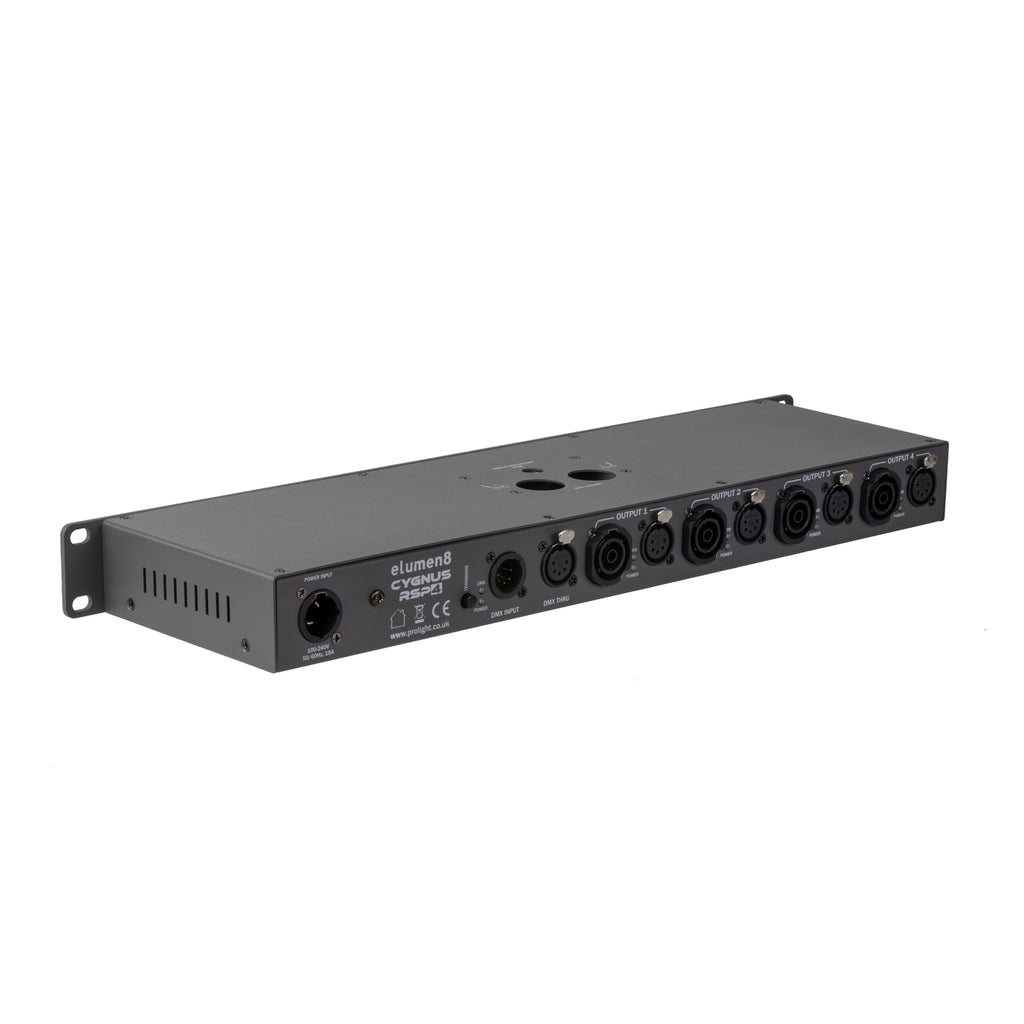

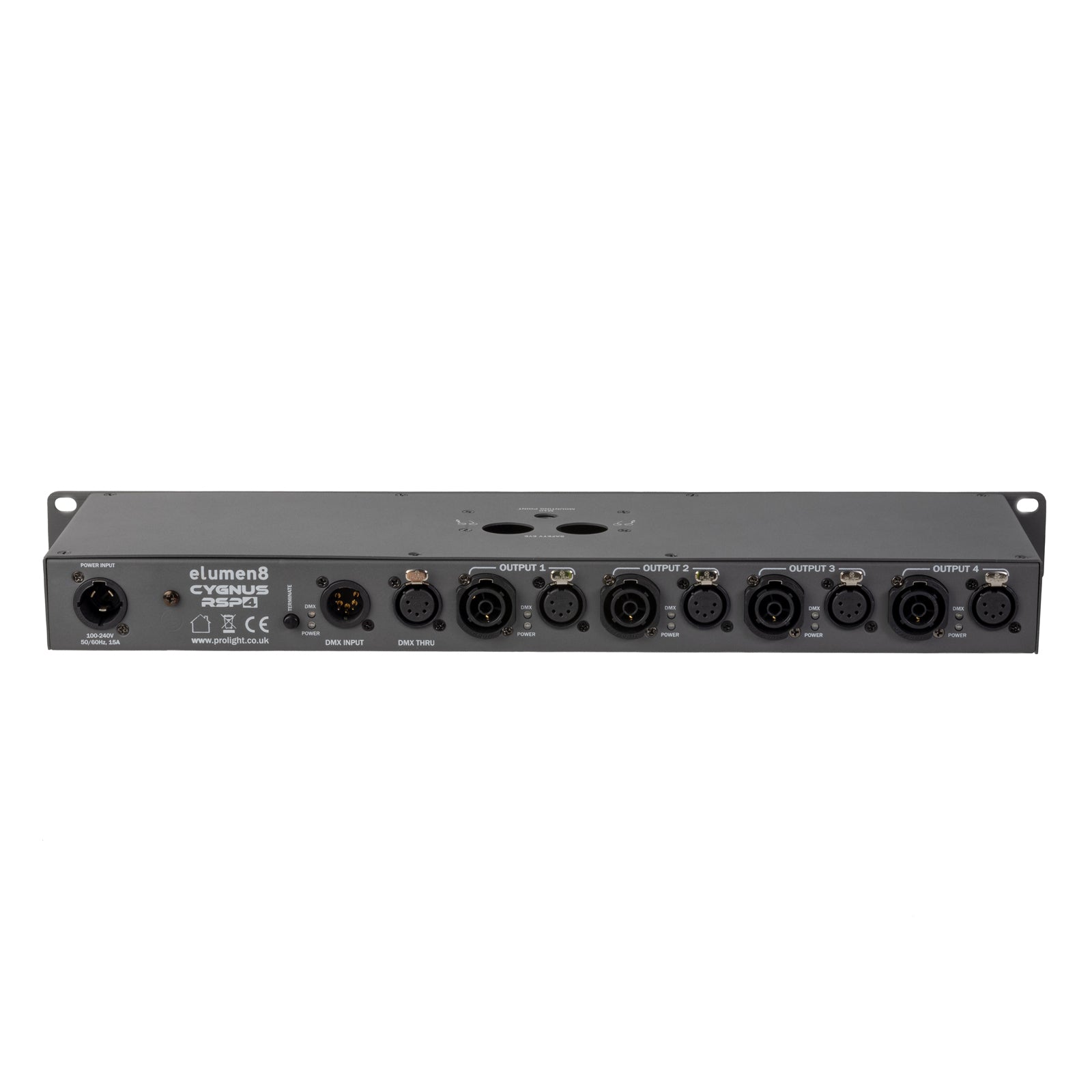

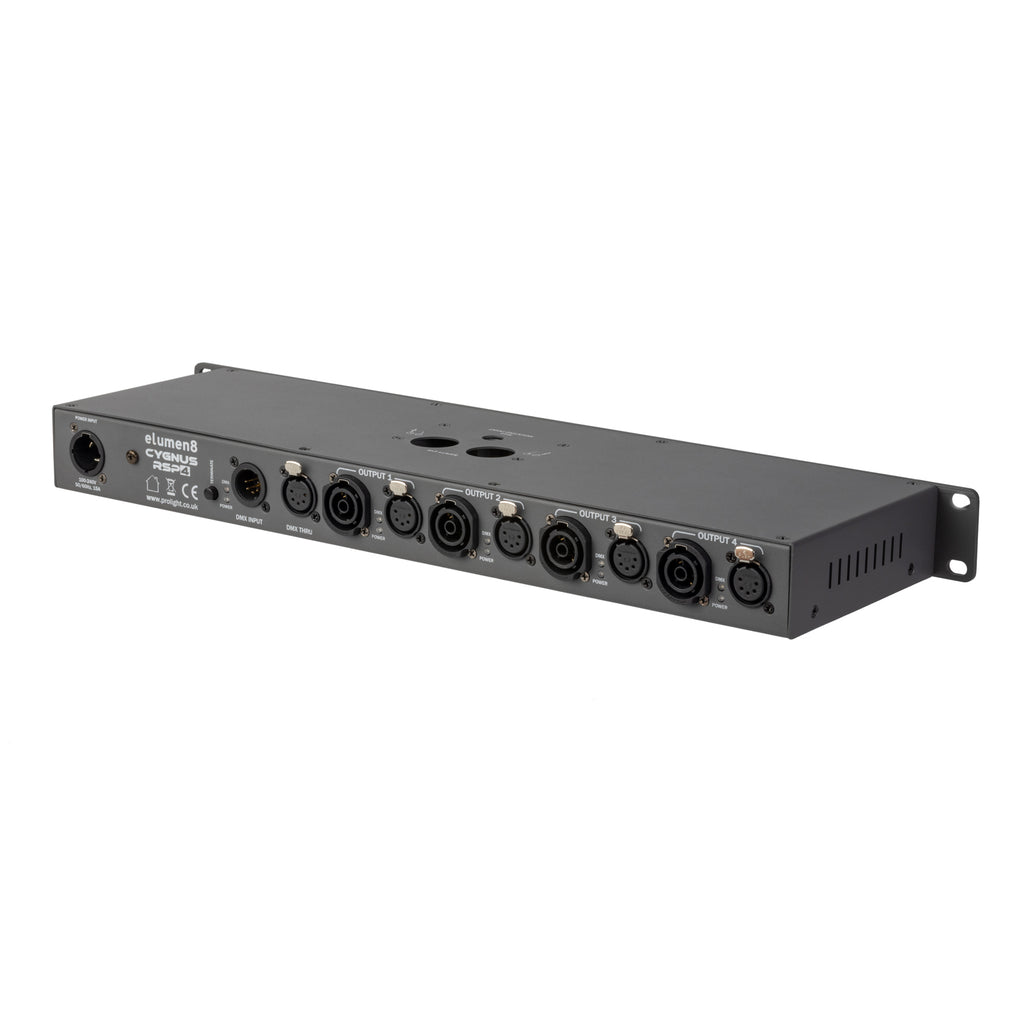

- DMX Input: 1x Seetronic 5-Pin XLR
- DMX Outputs: 4x Seetronic 5-Pin XLR
- DMX Passthrough: 1x 5-Pin XLR with switchable termination
- Power Outputs: 4x Power Twist TR1 switchable outputs
- Internal Memory: 32GB
- Modes: Auto, Manual, Timer, DMX
- Maximum Load: 10A per channel / 15A total
- Power Supply: 100~240V AC, 50/60Hz
- Power Consumption: 4W (3450W fully loaded)

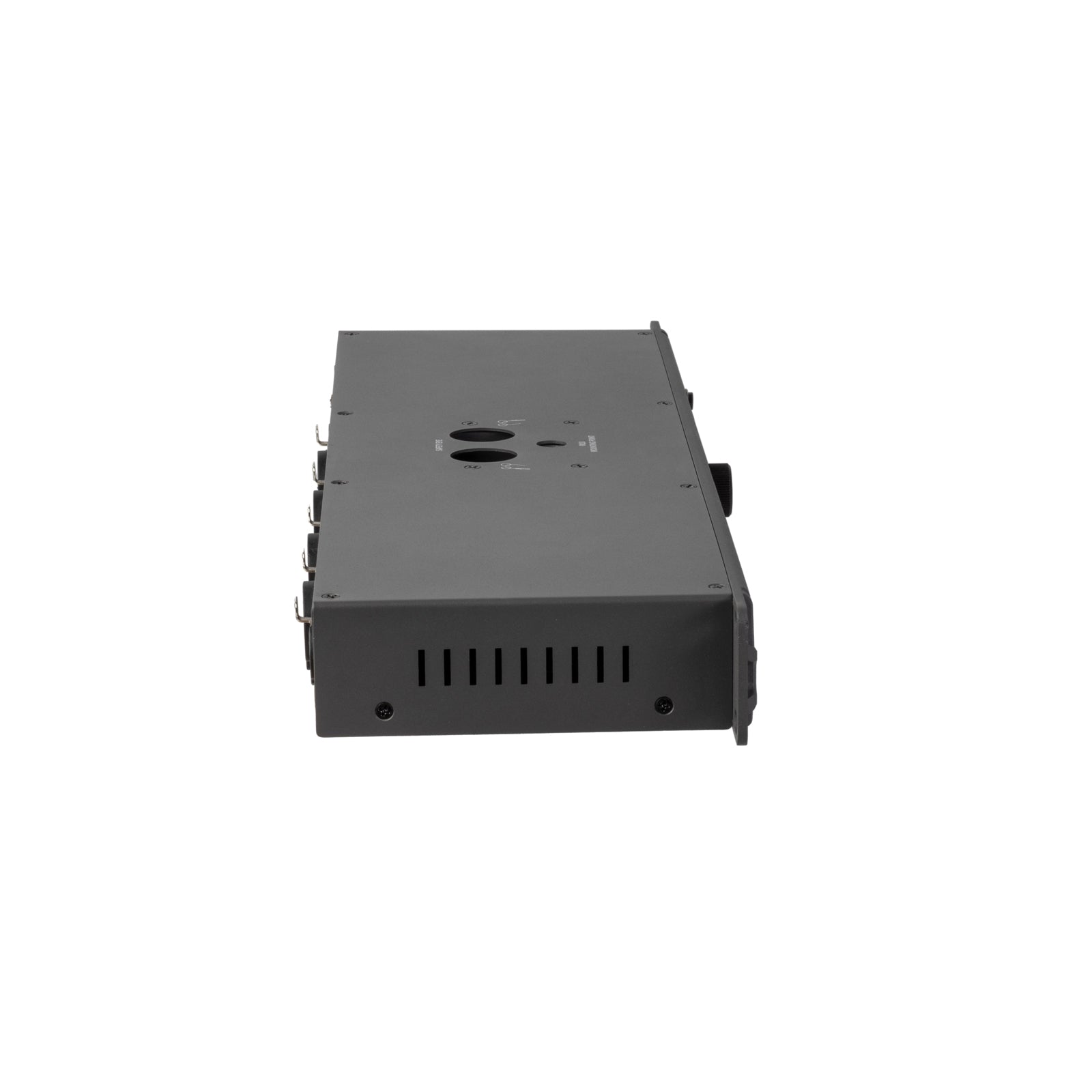

- Cooling: Convection cooled

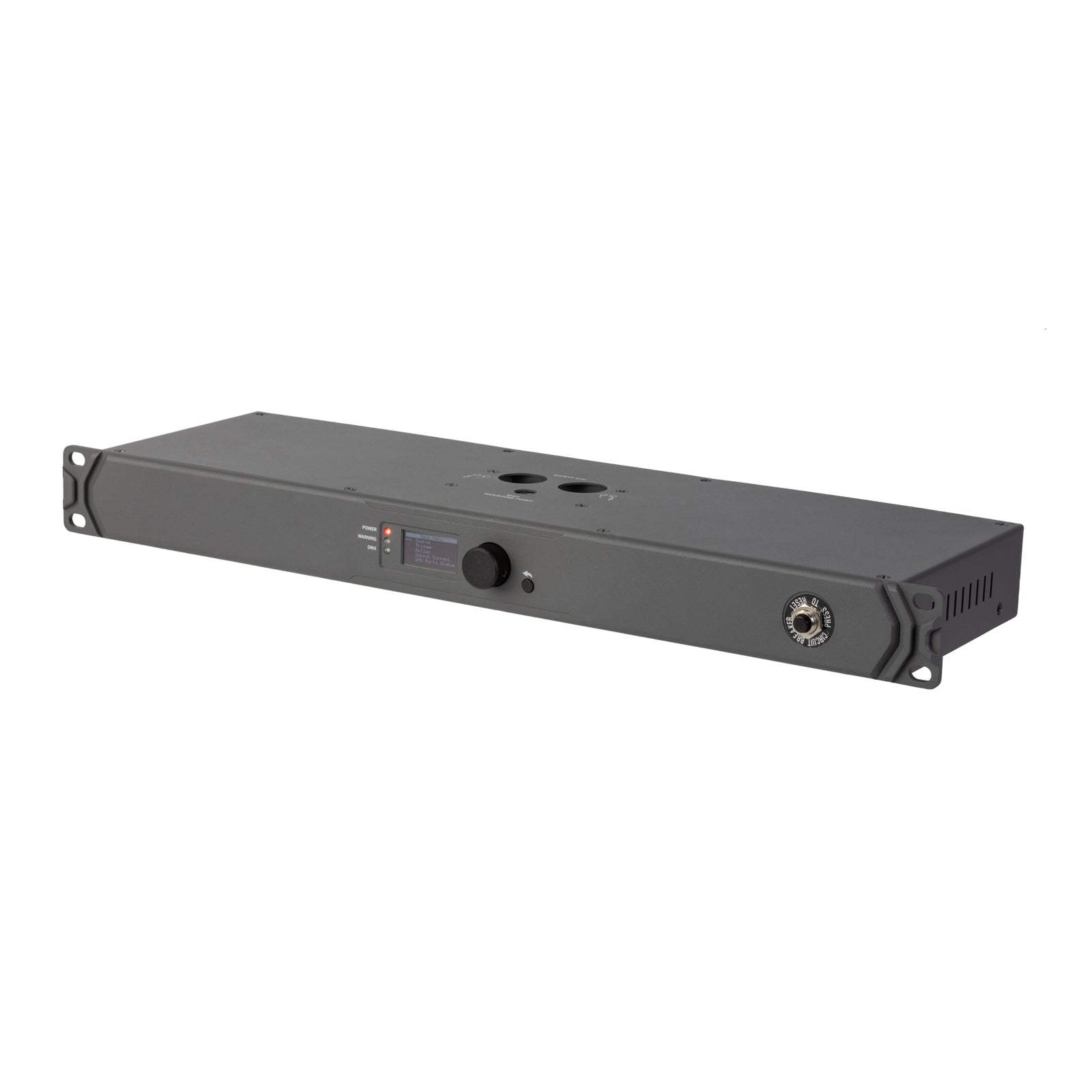

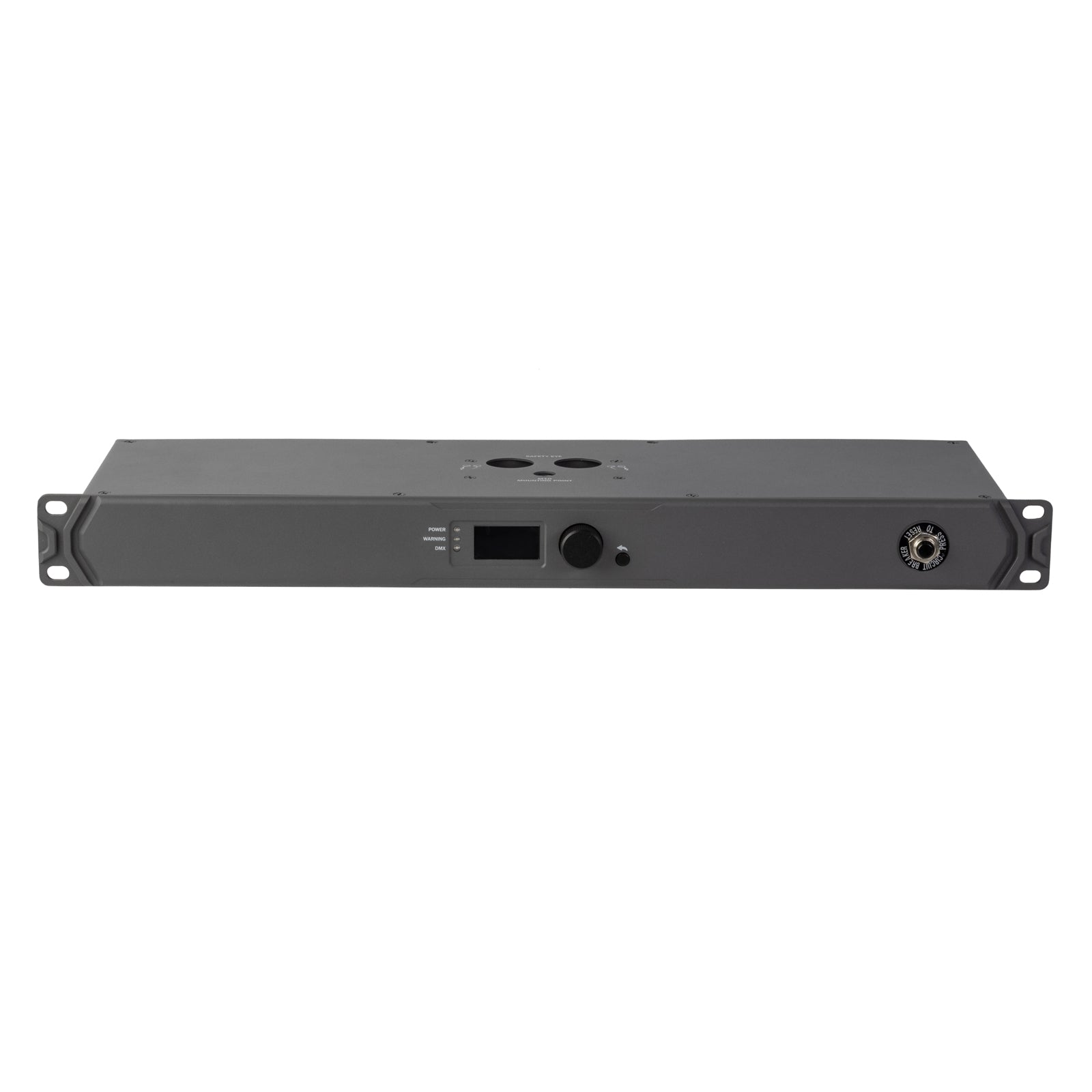

- Display: 1.4-inch OLED with rotary control
- Construction: Powder-coated aluminium, 1U 19-inch rackmount
- Dimensions: 44 x 483 x 155mm
- Weight: 2.36kg
